Paradox MG5075 Magellan 32-Zone Wireless Transceiver Control Panel

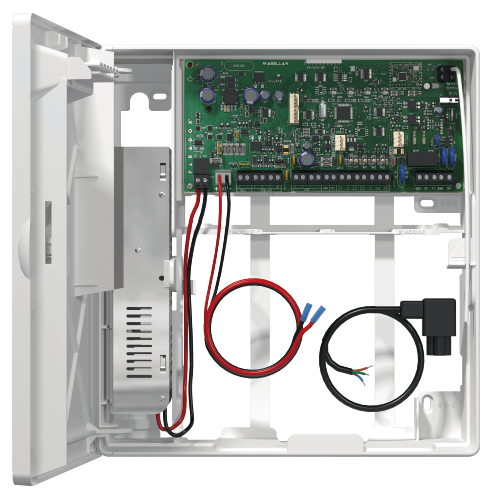

The Paradox MG5075 is a future-ready, high-capacity 32-zone wireless transceiver control panel designed for comprehensive residential and commercial security management. Built into a protective plastic housing with an integrated system status display, the MG5075 combines an onboard 433 MHz RF transceiver with an efficient internal power supply capable of delivering up to 2.5 A of auxiliary current.

Engineered to support modern hybrid environments, the MG5075 handles up to 32 total zones (wireless or hardwired via expansion modules), 2 independent partitions, 32 user codes, and up to 15 HD78F / HD88 video surveillance cameras. Fully compatible with Paradox StayD perimeter technology, it integrates with IP communicators (IP180 / IP150+), LTE cellular modules (PCS series), and plug-in voice modules (VDMP3) for remote system monitoring via the Paradox BlueEye mobile application.

Key System Features & Functionality

• 32-Zone Expandable Wireless Capacity: Onboard 433 MHz transceiver supports up to 32 wireless or hardwired zones (via ZX8 modules).

• High-Power Built-In Power Supply: Delivers up to 2.5 A auxiliary power output with automated battery recharge management for 7 Ah or 24 Ah backup batteries.

• Integrated Video Supervision: Supports direct integration with up to 15 Paradox HD78F / HD88 HD video surveillance cameras.

• Dual Partition Control: Manages 2 completely independent partitions with unique user codes, reporting accounts, and zone assignments.

• 4 Onboard PGM Outputs: Features 4 programmable outputs (3 x 100 mA open-collector and 1 x 100 mA solid-state), expandable up to 16 PGMs.

• Multi-Channel Remote Connectivity: Full compatibility with IP internet communicators (IP180 / IP150+), cellular LTE dialers (PCS series), and voice modules (VDMP3).

Key Technical Specifications
