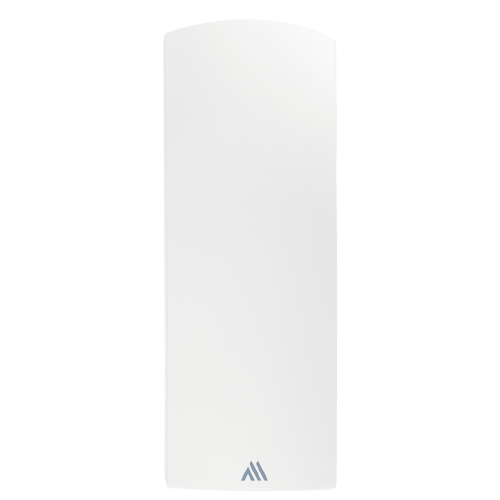

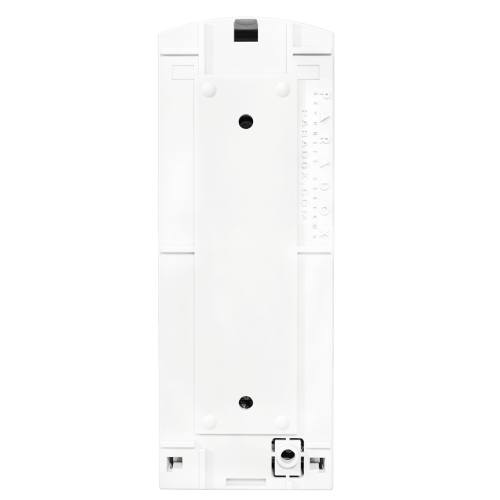

Paradox PGMZ1M Wireless PGM Relay & 1-Zone Expansion Module

The Paradox PGMZ1M is an official 2-way wireless programmable output (PGM) relay and 1-zone input expansion module engineered for the Paradox M Series security ecosystem. Operating over secure, encrypted GFSK 2-way wireless communication (868 MHz or 914 MHz), it allows security installers to remotely control automated third-party equipment (such as garage doors, electric gates, strobe lights, sirens, or door locks) while simultaneously providing an auxiliary hardwired zone input for external security sensors.

Key System Features & Functionality

• Form C Relay Output: Integrated 5A / 250V AC or 5A / 30V DC dry contact relay for controlling high- or low-voltage external automation equipment.

• 1 Auxiliary Hardwired Zone Input: Provides a hardwired zone input that supports No EOL, Single EOL, or Dual EOL resistor configurations.

• Encrypted GFSK 2-Way RF: Operates over secure 2-way wireless frequencies with automatic frequency and encryption hopping for maximum transmission stability.

• Universal Power Options: Powered by wide AC/DC input (9V - 24V AC/DC) or directly via wall transformer sources.

• BlueEye App Integration: Control relay toggling, timed pulse triggers, and zone status remotely via the Paradox BlueEye mobile application.

• Over-the-Air (OTA) Upgrades: Supports remote OTA firmware updates for effortless maintenance.
