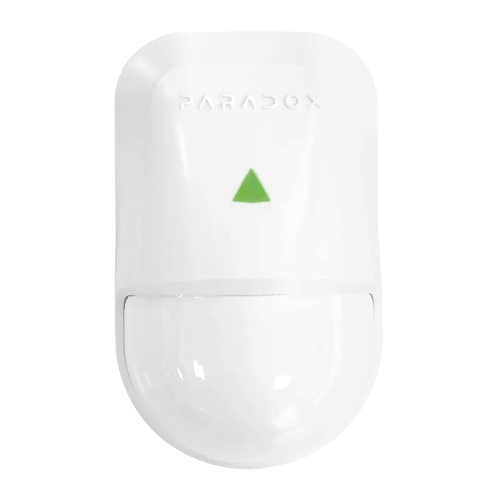

Paradox PMD5M-YZF Miniature Indoor Wireless PIR Motion Detector (White)

The Paradox PMD5M-YZF is a next-generation miniature indoor wireless passive infrared (PIR) motion detector engineered for discreet, high-precision security monitoring. Designed with an ultra-compact footprint, this device incorporates a dual-element PIR sensor combined with a specialized super creep down-looking beam that eliminates blind spots directly beneath the detector. It communicates via two-way GFSK wireless technology with frequency and encryption hopping, delivering robust protection against RF jamming and signal interception.

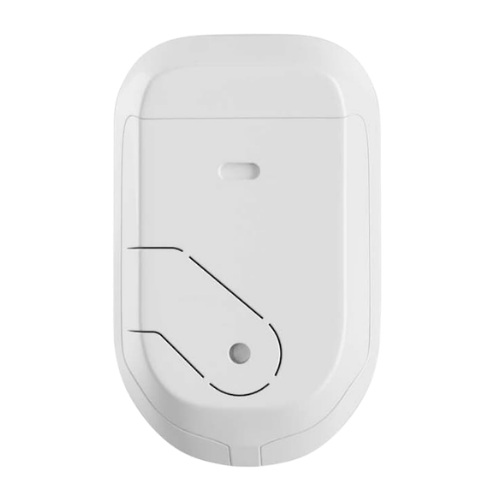

Optimized for modern Paradox security ecosystems, the PMD5M-YZF features dynamic energy control, customizable sensitivity modes, an integrated ambient temperature sensor, and over-the-air (OTA) firmware updates via the Paradox BlueEye application. Powered by a single long-life CR123A lithium battery (up to 6+ years of operation), it comes in an elegant white finish ("YZF" variant) with a fast-mount backplate and wall tamper protection, offering security integrators a sleek and highly reliable solution for residential and commercial interiors.

Key System Features & Functionality

• Ultra-Compact Miniature Design: Sleek, unobtrusive white housing (only 5.6 cm wide) blends seamlessly into modern interior spaces.

• Super Creep Down-Looking Beam: Specialized lens optics eliminate zero-zone blind spots directly underneath the sensor to prevent bypass attempts.

• Two-Way Encrypted GFSK Wireless: Uses advanced frequency-hopping two-way GFSK communication for extended RF range and maximum signal security.

• 6+ Year Battery Life: Efficient power management provides over six years of operation on a single standard 3V CR123A lithium cell.

• Remote App Configuration & OTA Updates: Fully programmable and upgradable over the air through the Paradox BlueEye mobile platform.

• Optional Pet Immunity & Adjustable Sensitivity: Configurable detection thresholds and creep zone settings allow tailoring for pet-friendly environments up to 15 kg (33 lbs).

Key Technical Specifications
