CH-3210-9CH 12V DC 10A 9-Channel CCTV Power Supply Box

Product Overview

The CH-3210-9CH is a 12V DC 10A CCTV power supply distribution box designed to provide centralized power for up to nine compatible security cameras or low-voltage surveillance devices.

Featuring 9 individually protected output channels and a total rated capacity of 120W, this power distribution unit helps simplify wiring and organize power connections in multi-camera security installations.

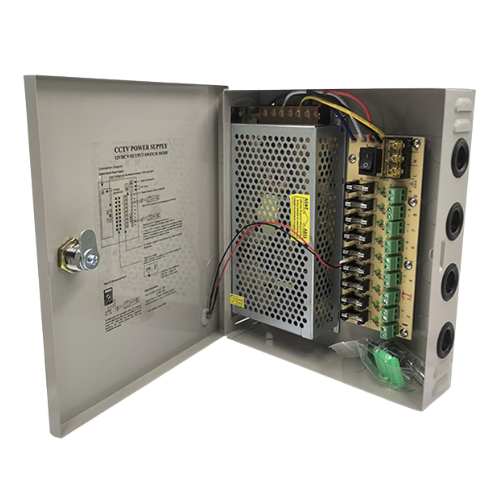

Its wall-mountable metal enclosure includes a locking door, individual channel protection, and LED status indicators for convenient installation and maintenance.

The CH-3210-9CH is designed for compatible 12V DC equipment where centralized power distribution is appropriate.

Key Features

• 9-Channel Power Distribution: Provides nine separate 12V DC output connections for compatible security equipment.

• 12V DC Regulated Output: Designed to supply stable low-voltage DC power.

• 10A Total Output Capacity: Supports a combined rated output of up to 120W.

• Individual PTC Protection: Self-resetting protection devices help isolate overcurrent or short-circuit conditions on individual channels.

• LED Status Indicators: Provide visual feedback for output channel operation.

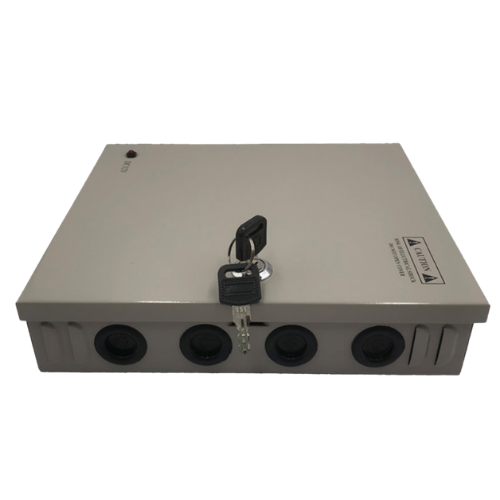

• Lockable Metal Cabinet: Helps protect internal wiring and power connections against unauthorized access.

• Wall-Mountable Design: Suitable for organized power distribution installations.

• Centralized Camera Power: Reduces the need for separate individual power adapters.

• Multi-Camera Compatibility: Suitable for compatible 12V DC CCTV cameras and other low-voltage security devices within the electrical ratings.

• Maintenance-Friendly Configuration: Organized connections facilitate troubleshooting and servicing.

Recommended Applications

Designed for compatible low-voltage security installations, including:

• Multi-camera CCTV systems

• Analog surveillance installations

• Retail security systems

• Small commercial security projects

• Residential CCTV installations

• Centralized 12V DC power distribution

Centralized Power Distribution

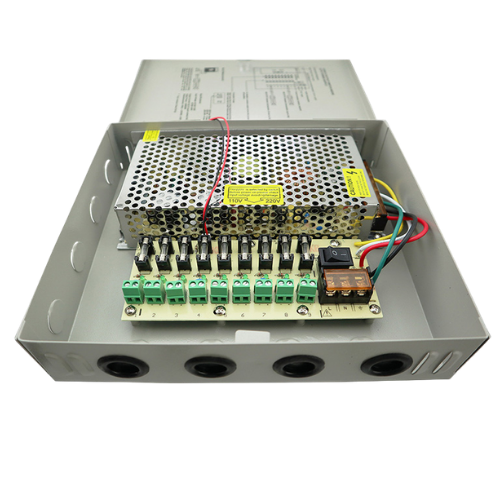

The CH-3210-9CH consolidates multiple 12V DC power connections into a single enclosure.

Its nine individually protected outputs allow installers to organize CCTV power wiring and identify potential circuit faults more efficiently.

Important: The 10A capacity is shared across all nine outputs. The combined load must not exceed the power supply rating or the individual channel limits.

Installation and Compatibility

Before installation, verify:

• Required 12V DC operating voltage

• Total current consumption of connected devices

• Individual output current limits

• Cable length and voltage drop

• Wiring polarity

• Indoor mounting conditions

• Applicable electrical codes and equipment approval requirements

This product is intended for installation by qualified personnel familiar with low-voltage security systems.

Electrical Safety and Certification

This product is not UL Listed.

Verify whether the equipment has an alternative recognized electrical safety certification and whether it is acceptable under applicable local codes and installation requirements before use.

Important Information

• Not intended for Power over Ethernet (PoE) equipment.

• Use only with compatible 12V DC devices.

• Total connected load must remain within the rated output capacity.

• Install according to applicable electrical safety requirements.

• Confirm product certification and acceptance before commercial deployment.
