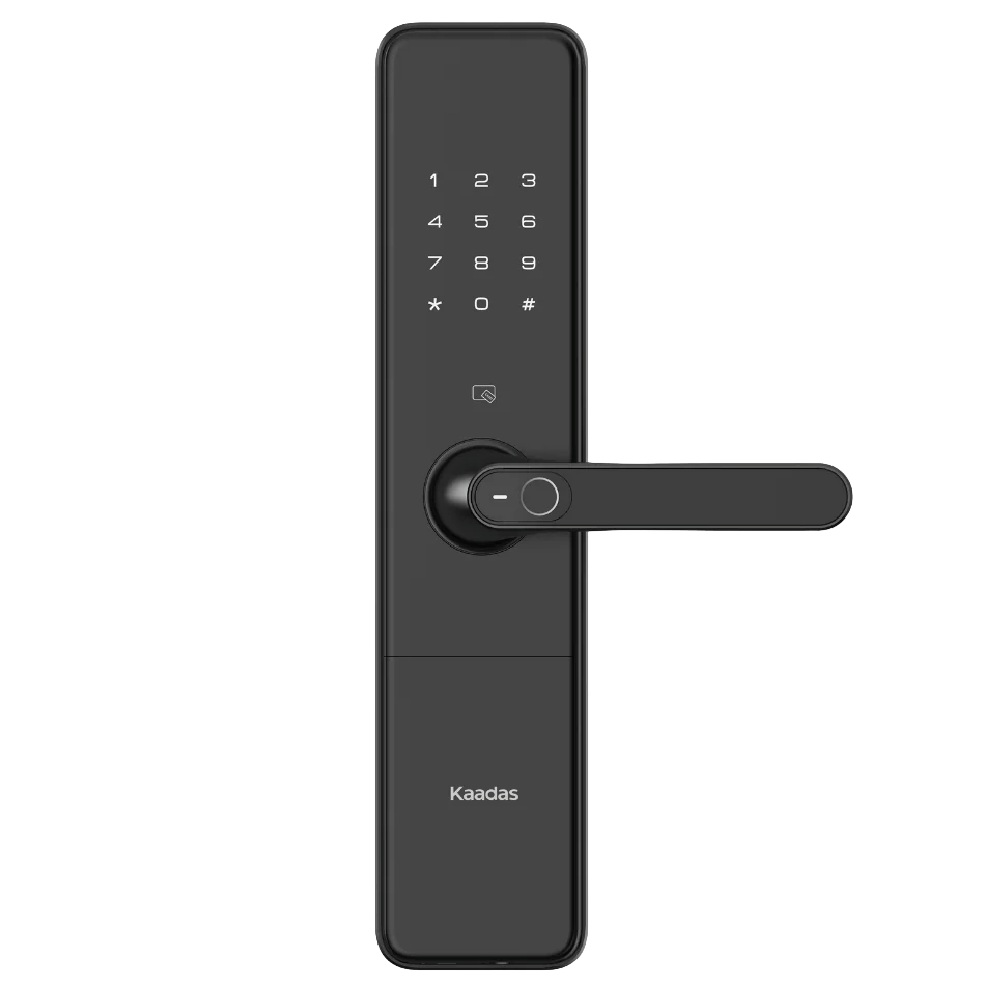

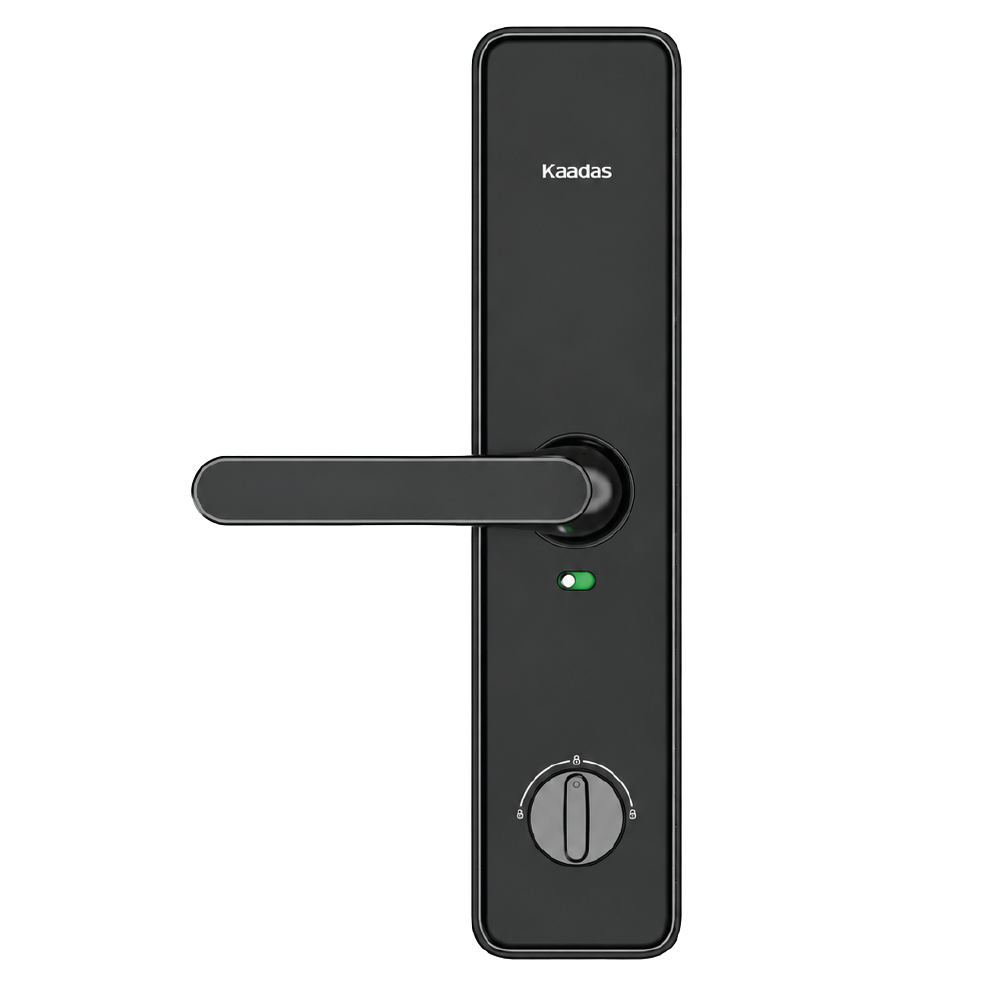

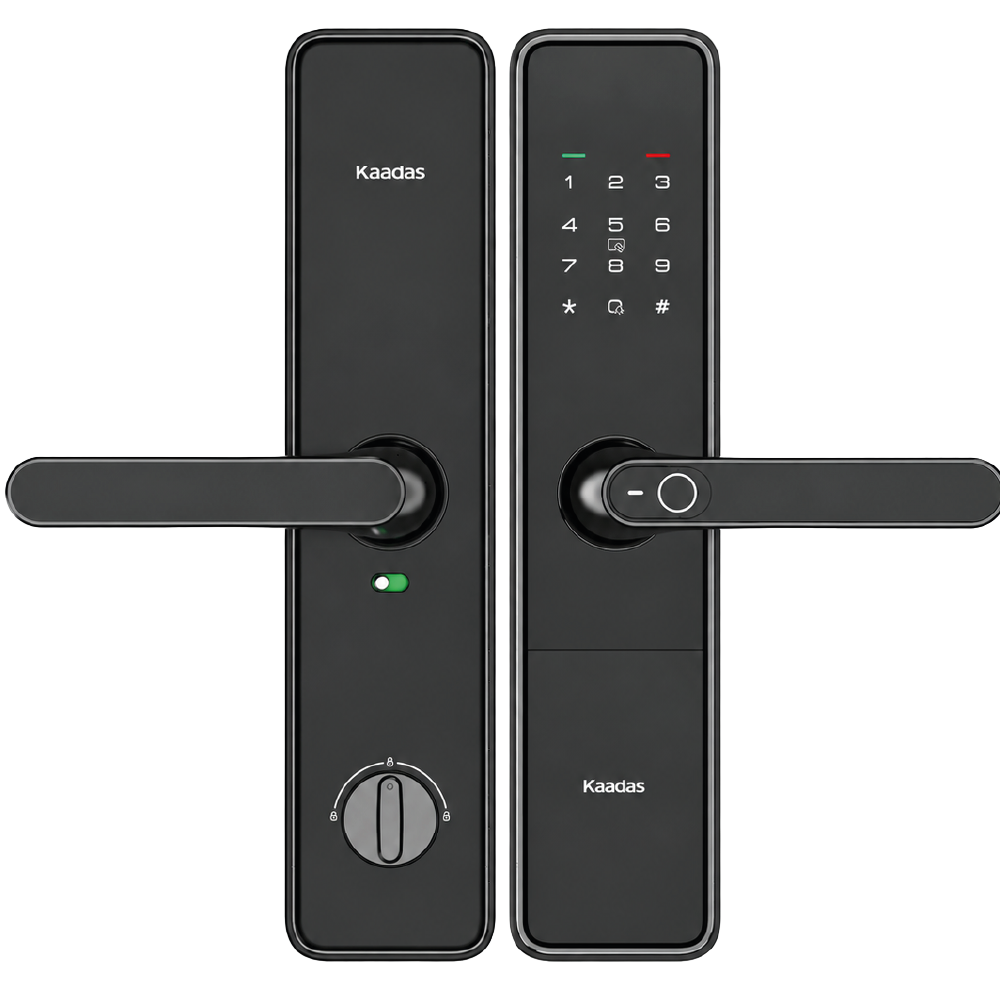

S500-C – Push-Pull Biometric Smart Lock (Fingerprint, PIN & Card)

Product Overview

The S500-C is an enterprise-tier luxury electronic push-pull mortise lock engineered for high-security perimeter doors, executive suites, luxury residences, and commercial architectural entries within the GVS Security access hardware lineup. Designed with an ergonomic fully automatic push-pull handle architecture, the lock eliminates traditional door handle rotation: users simply verify their credentials and push the door to enter, or pull to exit. Enclosed in a heavy-duty zinc and aluminum alloy unibody chassis with a mirror-tempered panel finished in Deep Obsidian Black, it delivers physical durability paired with executive styling.

Engineered with multi-factor authentication, the S500-C integrates an ergonomic semiconductor capacitive biometric sensor (FPC) directly onto the fixed handle grip for one-motion unlocking in under 0.5 seconds. Additional access options include an illuminated touchscreen PIN keypad with anti-peep decoy password masking, high-frequency 13.56 MHz RFID smart card/fob proximity reading, and a concealed bottom-mounted mechanical override key cylinder (backup physical keys included). Driven by an automated electronic multi-point mortise lock body with triple stainless steel deadbolts and an anti-saw latch, it features customizable auto-locking upon closure, tamper alarms, forced-entry acoustic warnings, and an emergency 5V USB-C jump-start port.

Key System Features & Functionality

• Ergonomic Push-Pull Action: Hands-free style operation unlocks and releases the multi-point mortise latch smoothly with a natural push or pull gesture.

• Integrated Handle Biometric Scanner: Semiconductor touch sensor situated on the handle grip reads fingerprints in under 0.5 seconds with high false-rejection immunity.

• Multi-Credential Authentication: Supports biometric fingerprint, illuminated digital PIN code, 13.56 MHz RFID smart card, and mechanical emergency backup keys.

• Heavy-Duty Multi-Point Mortise: Automated motorized mortise body equipped with multi-bolt stainless steel deadbolts resists prying, sawing, and forced impact.

• Anti-Peep Virtual Passcode Protection: Allows random decoy numbers entered before or after the true numeric code to hide PIN credentials from observers.

• Automatic Motorized Locking: Extends high-security deadbolts automatically once the door frame magnetic or mechanical sensor detects complete closure.

• Emergency USB-C Jump-Start: Concealed bottom 5V USB Type-C interface allows instant temporary power from a power bank during complete battery exhaustion.

• Built-in Security Alarms: Triggers an audible warning and temporary system freeze upon repeated invalid attempts or external physical pry attempts.
