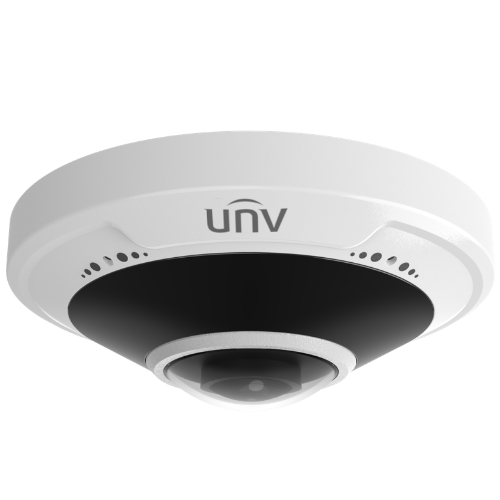

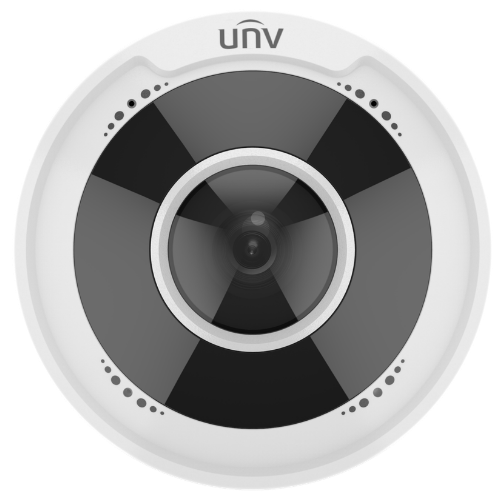

- Uniview 12MP Fisheye Network Camera with Dual-Mic & Active Deterrence Uniview 12MP Fisheye Network Camera with Dual-Mic & Active Deterrence
- Description
The Uniview IPC86CEB-AF18KC-I0 is a professional-grade, ultra-high-definition 12MP Fisheye Network Camera engineered for comprehensive, 360-degree situational awareness in wide-area surveillance deployments. Designed to eliminate blind spots with a single device, it captures pristine, high-detail imagery at a maximum resolution of 4000 × 3000. It efficiently manages high-bandwidth video streams by employing advanced Ultra 265, H.265, H.264, and MJPEG compression standards. For robust, high-capacity edge archiving, this unit features a built-in MicroSD slot supporting cards up to 512GB.
At the core of its professional value is an extensive suite of intelligent functionalities and specialized view modes. The camera supports both hardware and software dewarping, including 360° panorama, 180° panorama, and multiple PTZ views for interactive, dynamic monitoring. The device provides deep situational awareness through an intelligence suite that includes high-precision Smart Intrusion Prevention (SIP) — filtering false alarms for cross-line and intrusion detection — and native Heat Mapping capabilities for real-time statistical analysis of object movement density. Built with an embedded microphone and speaker for two-way audio, and featuring robust IP67 weatherproof and IK10 vandal-resistant ratings, the IPC86CEB-AF18KC-I0 is the ultimate backbone for proactive, full-coverage centralized surveillance management.
Smart Analytics: Smart Intrusion Prevention (SIP) (Cross Line Detection, Intrusion Detection); Statistical Analysis (Heat Map).
• High-quality image with 12 MP, 1/1.7" CMOS sensor • Max. 4000 × 3000 resolution • Ultra wide-angle lens, 360° panoramic image • Embedded infrared light, 360° fill-in light, up to 15 m (49.2 ft) IR distance • Multiple decoding modes, supports software and hardware modes • Embedded microphone and speaker, supports two-way audio • Supports 1-ch BNC video output • Supports Alarm I/O: 2 in / 1 out, Audio I/O: 1 in / 1 out • ANR technology to enhance the storage reliability when the network is disconnected • IP67 weatherproof protection and IK10 vandal-resistant
Technical Specifications
| Category | Specifications |
|---|---|
| Decoding |
Video Compression: Ultra 265, H.265, H.264, MJPEG H.264 Code Profile: Baseline profile, Main profile, High profile Video Bit Rate: 128 Kbps to 16 Mbps |
| Camera |
Sensor: 1/1.7", 12.0 megapixel, progressive scan, CMOS Min. Illumination: Color: 0.03 Lux (F2.0, AGC ON), 0 Lux with IR Day/Night: IR-cut filter with auto switch (ICR) Shutter: Auto/Manual, 1 ~ 1/100000s WDR: DWDR |
| Lens |
Focal Length: 1.8 mm Lens Type: Fixed Iris: Fixed, F2.0 Field of View: Horizontal: 180°, Vertical: 180°, Diagonal: 180° |
| Illuminator |
IR Range: Up to 15 m (49.2 ft) Wavelength: 850 nm |
| Image |
Digital Noise Reduction: 2D/3D DNR Smart IR: Supported Flip: Normal, Flip vertical, Flip horizontal, 180° |
| Audio |
Audio Compression: G.711A, G.711U Suppression: Supported Sampling Rate: 8 kHz Built-in Mic: Built-in dual-mic Built-in Speaker: Supported Two-way Audio: Supported |
| Video |
Main Stream: Fisheye View: 12MP (4000×3000)@20fps; 3000×3000@20fps; 2560×2560@25fps Sub Stream: Fisheye View: 2000×1500@20fps; 2000×2000@25fps Third Stream: Fisheye View: D1 (720×576)@20/25fps; CIF (352×288)@20/25fps |
| Dewarping Display |
Hardware Decoding: Ceiling/Table mount: Fisheye, Fisheye+4PTZ, Panorama; Wall mount: Fisheye, Panorama, Fisheye+4PTZ Software Decoding: Ceiling/Table mount: Fisheye, 360° panorama+1PTZ, Panorama, Fisheye+multiple PTZ; Wall mount: Fisheye, Panorama, Panorama+multiple PTZ |
| Network |
Incoming Bandwidth: N/A (Edge Storage) Remote Users: 128 Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS Browser Support: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Smart Functions |
Intelligence: Smart Intrusion Prevention (SIP) Statistical Analysis: Heat map General Functions: Motion detection, tampering alarm, audio detection |
| Alarms | Alert Notifications: IP conflict, network disconnect, disk full, disk error, illegal access |
| Storage |
Edge Storage: MicroSD, up to 512 GB Network Storage: ANR, NAS (NFS) |
| Interfaces |
Network: 1 × RJ45 10M/100M Base-TX Base-TX Ethernet Audio I/O: 1 Input, 1 Output Alarm I/O: 2 channels input, 1 channel output Serial Port: 1 × RS485 Video Output: 1 × BNC |
| Power & Environment |
Power Supply: DC 12 V±25%, PoE (IEEE 802.3af) Power Consumption: Max. 12.0 W Operating Temperature: -30°C to 60°C (-22°F to 140°F) Humidity: ≤ 95% RH (non-condensing) |
| Physical |
Dimensions: Ø149 × 55 mm (Ø5.9" × 2.2") Weight: 0.524 kg (1.16 lb) Material: Metal + Plastic Ingress Protection: IP67 weatherproof Vandal Resistance: IK10 |
