- UNV 8MP Wise-ISP ColorHunter Fixed Turret Network Camera(2.8mm) UNV 8MP Wise-ISP ColorHunter Fixed Turret Network Camera(2.8mm)
- Description

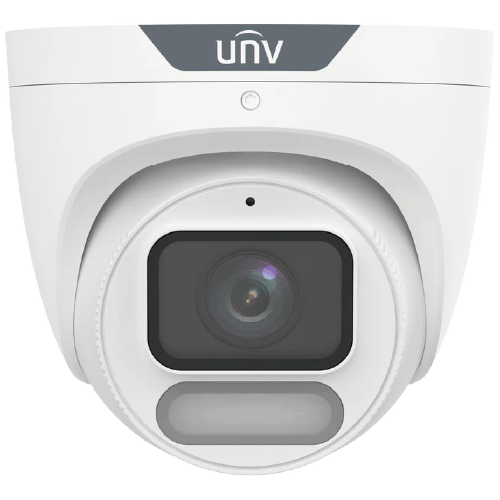

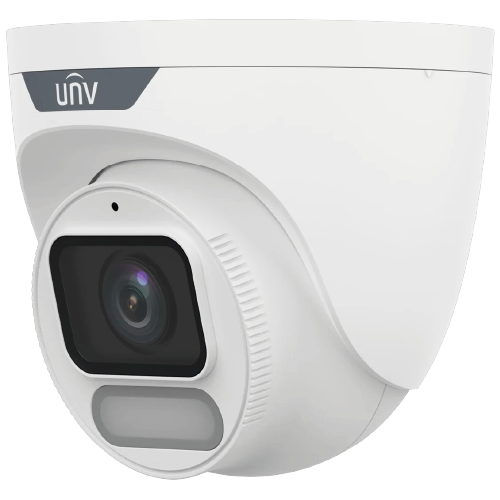

• 8MP ColorHunter Wise-ISP Warm Light Turret Network Camera
• High quality image with 8 MP, 1/1.8" CMOS sensor and F1.0 large aperture lens
• 8 MP (3840 × 2160)@20 fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• ColorHunter with Wise-ISP technology ensures 24-hour full-color images
• 120 dB true WDR technology enables clear image in strong light scene
• Supports 9:16 corridor mode
• Built-in mic
• White light, up to 30 m (98.4 ft) warm light distance
• MicroSD, up to 512 GB
• IP67 protection
• Supports PoE power supply
• 3-axis
|
IPC3628SR-ADF28KM-WP |
|
|
Camera |
|
|
Max Resolution |
8 MP |
|
Sensor |
1/1.8" CMOS |
|
Min. Illumination |
Color: 0.0003 Lux (F1.0, AGC ON) |
|
Shutter |
Auto/Manual, 1 ~ 1/100000s |
|
Adjustment Angle |
Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
|
S/N |
>52 dB |
|
WDR |
120 dB |
|
Lens |
|
|
Focal Length |
2.8 mm |
|
Iris Type |
Fixed |
|
Iris |
F1.0 |
|
Field of View (H) |
111.0° |
|
Field of View (V) |
63.0° |
|
Field of View (D) |
131.0° |
|
Lens Type |
Fixed |
|
DORI |
|
|
DORI Distance (Lens) |
2.8 mm |
|
DORI Distance (Detect) |
63.0 m (206.7 ft.) |
|
DORI Distance (Observe) |
25.2 m (82.7 ft.) |
|
DORI Distance (Recognize) |
12.6 m (41.3 ft.) |
|
DORI Distance (Identify) |
6.3 m (20.7 ft.) |
|
Illuminator |
|
|
Supplemental Light |
Warm light |
|
Illumination Distance (Warm Light) |
30 m (98.4 ft) |
|
Light On/Off Control |
Auto/Manual |
|
Video |
|
|
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
|
H.264 Code Profile |
Baseline profile, Main profile, High profile |
|
Frame Rate |
Main Stream: 8 MP (3840 × 2160), max. 20 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; |
|
Video Bit Rate |
128 Kbps to 6144 Kbps |
|
U-code |
Support |
|
OSD |
Up to 4 OSDs |
|
Privacy Mask |
Up to 4 areas |
|
ROI |
Support |
|
Video Stream |
Dual streams |
|
Image |
|
|
White Balance |
Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
|
Digital Noise Reduction |
2D/3D DNR |
|
Smart Illumination |
Support |
|
Flip |
Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
|
Dewarping |
N/A |
|
HLC |
Support |
|
BLC |
Support |
|
Defog |
Digital defog |
|
Image Stabilization |
N/A |
|
Events |
|
|
Basic Detection |
Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
|
General Function |
Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
|
Intelligent |
|
|
Smart Intrusion Prevention (Lite) |
Intrusion, crossline detection (both detection are based on human body and vehicle detection) |
|
Audio |
|
|
Audio Compression |
G.711U, G.711A |
|
Audio Bitrate |
64 Kbps |
|
Two-way Audio |
N/A |
|
Suppression |
Support |
|
Sampling Rate |
8 kHz |
|
Storage |
|
|
Edge Storage |
MicroSD, up to 512 GB |
|
Network Storage |
ANR, NAS (NFS) |
|
Network |
|
|
Protocols |
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
|
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API, SDK |
|
User/Host |
Up to 32 users, 2 user levels: administrator and common user |
|
Security |
Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
|
Client |
UNV-Link, UNV-Link Pro, EZStation |
|
Web Browser |
Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
|
Interface |
|
|
Audio I/O |
N/A |
|
Alarm I/O |
N/A |
|
Serial Port |
N/A |
|
Built-in Mic |
Support |
|
Built-in Speaker |
N/A |
|
WIFI |
N/A |
|
Network |
1 × RJ45 10 M/100 M Base-TX Ethernet |
|
Video Output |
N/A |
|
Certification |
|
|
EMC |
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) |
|
Safety |
CE LVD (EN 62368-1) |
|
Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
|
Protection |
IP67 (IEC 60529) |
|
General |
|
|
Power |
DC 12 V±25%, PoE (IEEE 802.3af) |
|
Power Consumption |
Max. 3.9 W |
|
Power Interface |
Ø5.5 mm coaxial power plug |
|
Dimensions |
Ø118 mm × 106 mm (Ø4.6" × 4.2") (Ø × H) |
|
Weight |
0.48 kg (1.06 lb) |
|
Material |
Metal |
|
Working Environment |
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
|
Storage Environment |
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
|
Surge Protection |
4 KV |
|
Reset Button |
Support |
|
Web Client Language |
13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian |
