IP Outdoor Video Doorbell Station

Product Overview

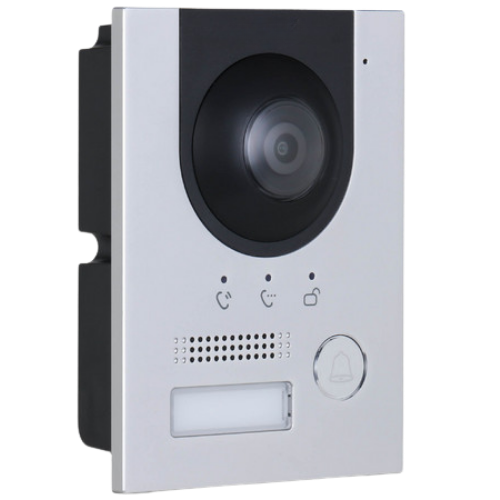

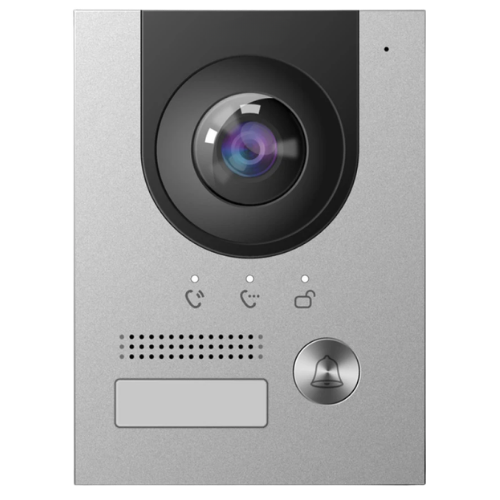

The VTO2201F-P is a slim, outdoor IP video intercom villa station designed for secure entry control in residential homes, multi-tenant apartments, and commercial offices. Built in a weather-resistant aluminum alloy housing, it features a 2MP Full HD camera with a wide-angle 140° lens and Wide Dynamic Range (WDR), allowing users to clearly identify visitors even under difficult backlighting conditions.

Supporting two-way voice communication with noise suppression and echo cancellation, this video door station integrates with indoor monitor stations and mobile apps for remote door unlocking and call answering. Equipped with Power over Ethernet (PoE) support, an integrated electric lock control relay, and night vision capabilities, it serves as a robust entry point access control terminal.

Key System Features & Functionality

• 2MP Full HD Camera: Captures clear 1080p (1920 x 1080) video resolution for accurate visitor identification.

• Ultra-Wide 140° Lens: Expands entrance viewing coverage to monitor approaching visitors and package deliveries.

• 120dB True Wide Dynamic Range (WDR): Balances high-contrast scene lighting to prevent shadowy faces during bright daylight or backlit entryways.

• Two-Way Audio Communication: Built-in microphone and speaker with background noise suppression and echo cancellation.

• Remote Access Control: Built-in door lock control relay enables remote door unlocking via indoor monitors or mobile application.

• Power over Ethernet (PoE): Simplifies cabling by carrying power and IP network communication over a single Ethernet line (802.3af).

• Weatherproof Enclosure (IP65 / IK07): Aluminum alloy panel designed for outdoor environments, protected against rain, dust, and physical impact.
