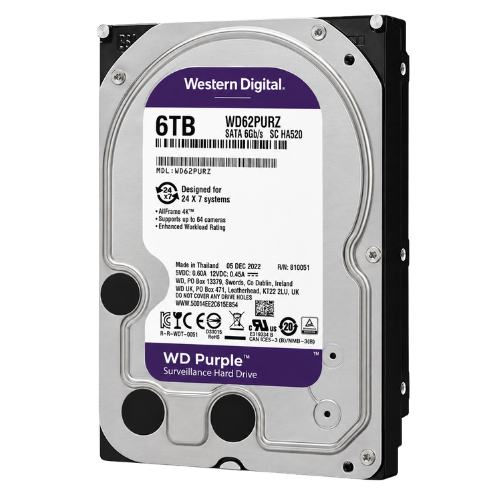

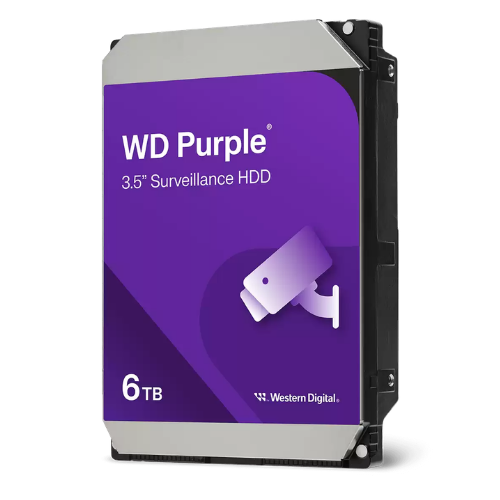

WD Purple 6TB Surveillance Hard Drive (5400 RPM, 128MB Cache, Up to 64 HD Cameras)

Product Overview

The WD64PURZ 6TB 3.5" Surveillance Hard Drive is an enterprise-grade internal mechanical storage drive. Engineered specifically to meet the demanding requirements of 24/7 always-on high-definition surveillance environments, this drive delivers continuous video recording and long-term retention for professional NVR and DVR installations, preventing dropped frames and visual stuttering across high-density multi-camera streams.

Featuring Western Digital's proprietary AllFrame™ technology, the WD64PURZ optimizes ATA video streaming commands to reduce pixelation and frame errors while supporting configurations with up to 64 single-stream high-definition (HD) cameras alongside additional deep learning AI analytic streams. Built on conventional magnetic recording (CMR) mechanics operating at an energy-efficient 5400 RPM class with a 128MB cache buffer and a SATA 6.0 Gb/s (SATA3) interface, it provides an annualized workload rating of 180 TB/year—three times the endurance of standard desktop drives. It is ideal for commercial installations, multi-family residential complexes, shopping centers, and enterprise NVR chassis requiring massive surveillance write endurance.

✅ Key Features

• Surveillance-Grade Engineering: Purpose-built for 24/7 continuous operation in high-definition video surveillance recording systems.

• Exclusive AllFrame™ Technology: Improves ATA streaming to reduce frame drops, refine video playback, and optimize high-throughput multi-camera recording.

• Support for up to 64 HD Cameras: Engineered to ingest video feeds from up to 64 single-stream high-definition cameras concurrently.

• Workload Rating up to 180 TB/Year: Delivers up to 3× the workload capacity of standard desktop drives to handle heavy continuous video write loads.

• 128MB Cache Buffer: Multi-segmented cache buffer handles sustained multi-channel data throughput and concurrent read/write operations.

• CMR (Conventional Magnetic Recording): Leverages proven CMR architecture for consistent, uninterrupted write performance across the entire 6TB volume.

• Energy-Efficient 5400 RPM Spindle: Reduces heat dissipation, mechanical vibration, and power draw in multi-bay NVR enclosures.

• Tarnish-Resistant Components: Constructed with corrosion-resistant internal hardware for dependable long-term operation in challenging physical environments.

📸 Compatible Devices

• Digital Video Recorders (DVR) and Network Video Recorders (NVR) with standard 3.5" SATA bays

• Hybrid CCTV security recorders (AHD, TVI, CVI, Analog)

• Surveillance-oriented Network Attached Storage (NAS) appliances (1 to 8 drive bays)

• Video Management System (VMS) servers and centralized recording appliances

• Standalone surveillance monitoring workstations and direct-attached storage (DAS) arrays

🕐 Approximate Recording Capacity at 6TB

• 4-Camera System @ 1080p (H.264, 15fps): ~60–84 days of continuous recording

• 4-Camera System @ 1080p (H.265, 15fps): ~120–168 days of continuous recording

• 8-Camera System @ 1080p (H.265, 15fps): ~60–84 days of continuous recording

• 16-Camera System @ 1080p (H.265, 15fps): ~30–42 days of continuous recording

• 32-Camera System @ 1080p (H.265, 15fps): ~15–21 days of continuous recording

• 4-Camera System @ 4MP (2K, H.265, 15fps): ~72–96 days of continuous recording

• 8-Camera System @ 4MP (2K, H.265, 15fps): ~36–48 days of continuous recording

• Motion Detection Mode: Up to 2–3× longer retention compared to continuous streams

Note: Actual recording days depend heavily on video compression standards (H.264 / H.265 / Smart Codecs), individual camera bitrates, framerates, audio recording channels, scene complexity, and motion detection configurations.
