WFP01 – Wi-Fi Smart Deadbolt Lock (Keypad, App & Key)

Product Overview

The WFP01 is a connected residential and commercial electronic deadbolt lock manufactured by Revolo and distributed through the GVS Security access hardware portfolio. Purpose-built for perimeter entrance doors, modern residences, commercial management offices, and short-term vacation rentals (Airbnb / VRBO), this intelligent deadbolt bridges standalone hardware security with direct smartphone management. Enclosed in a curved, weather-resistant aluminum alloy chassis with an electroplated Matte Black / Gloss Trim finish, it features a distinctive rotatable keyway cover that protects the mechanical tumbler against water, dust, and physical tampering.

Designed for direct wireless operation, the lock connects over 2.4 GHz Wi-Fi to the official mobile application, enabling real-time remote unlocking, access logging, and credential management without needing an external plug-in Wi-Fi bridge. The WFP01 provides versatile multi-point access authentication: keyless entry via an illuminated capacitive touchscreen numeric keypad, remote or local unlocking via the Revolo App, and manual physical override using a concealed high-security brass key cylinder (backup physical keys included). Property owners can effortlessly issue permanent, scheduled, recurring, or temporary one-time passcodes (OTP) for visitors, service technicians, or guests. Powered by four standard 1.5V AA alkaline batteries, the deadbolt incorporates programmable automatic motorized locking, anti-peep password protection, low-battery alerts, and an emergency USB power interface.

Key System Features & Functionality

• Dual-Brand Commercial Positioning: Engineered by Revolo for smart home ecosystems and integrated into the GVS Security access hardware catalog.

• Direct 2.4 GHz Wi-Fi Connectivity: Connects directly to domestic and office Wi-Fi routers without requiring an external proprietary gateway or hub.

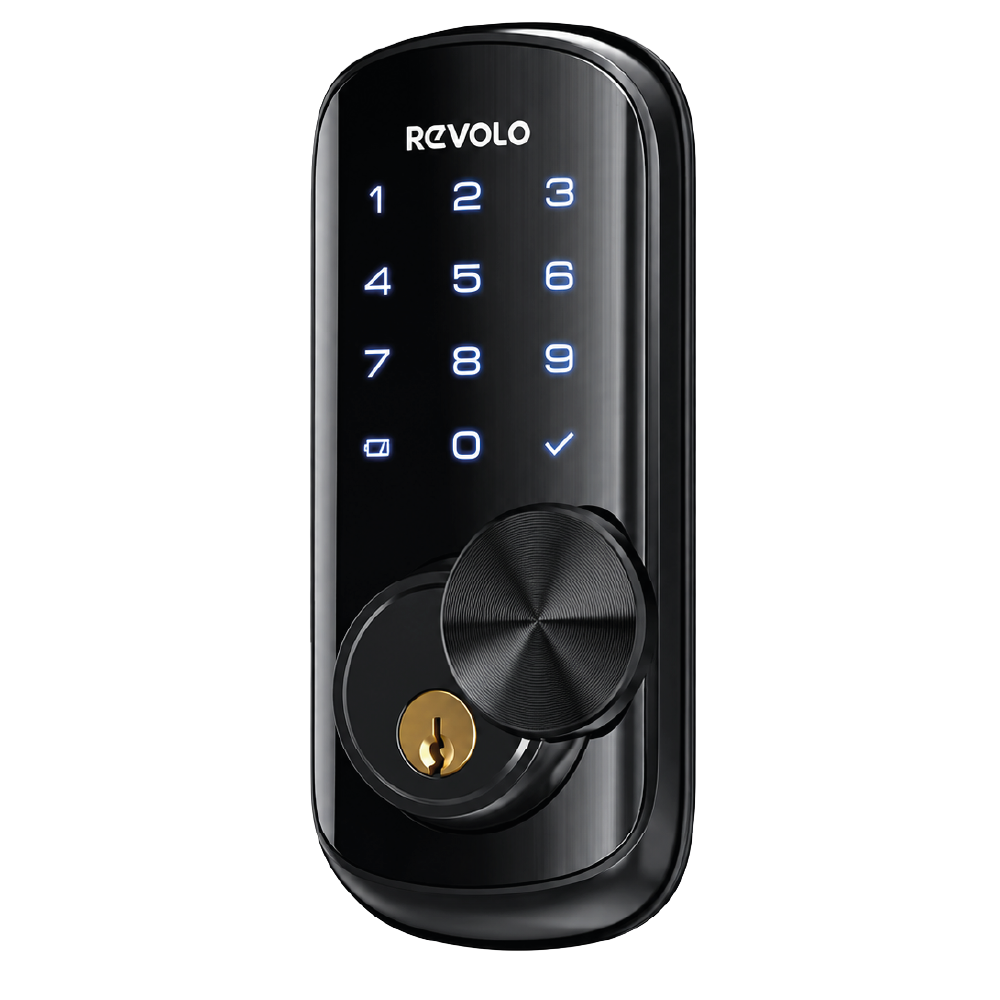

• Triple Access Authentication: Keyless entry via illuminated capacitive touch keypad, remote smartphone app control, and concealed mechanical key backup.

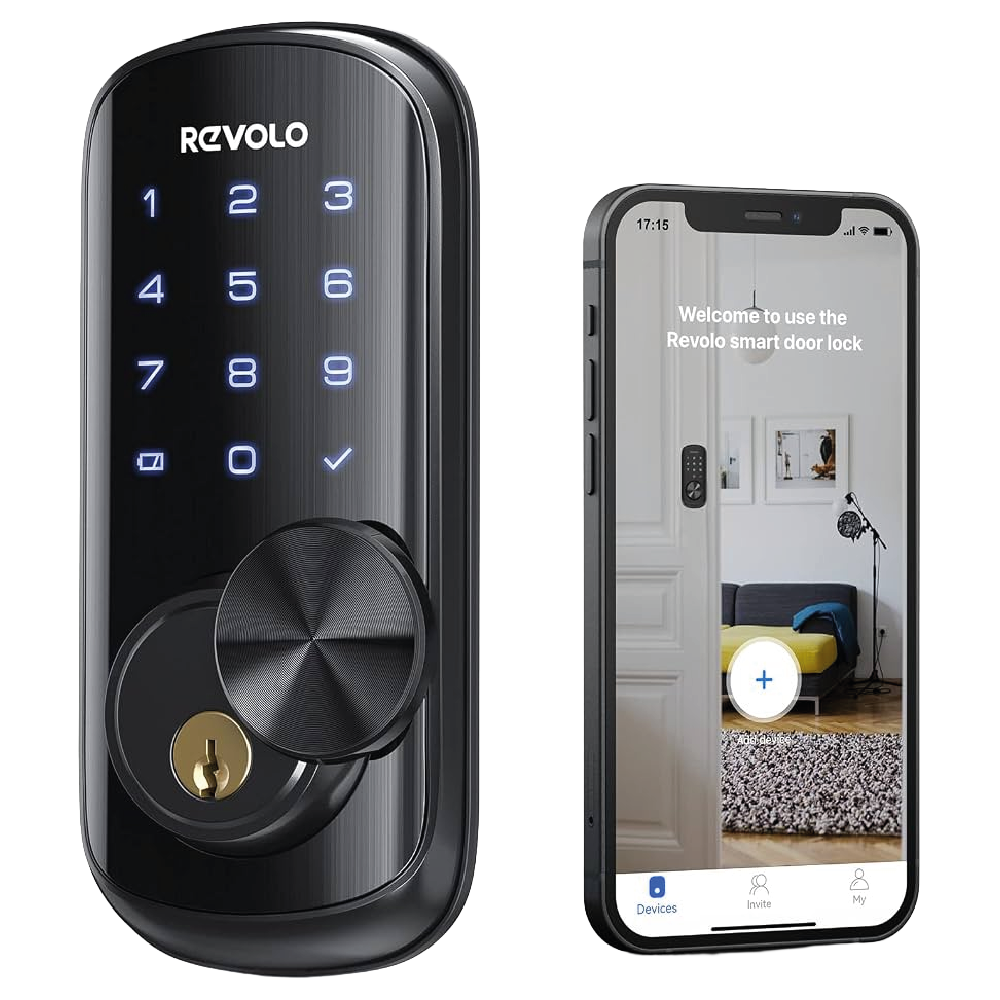

• Smart Mobile App Management: Real-time remote unlocking, timestamped entry event logs, and dynamic code generation (timed, recurring, or one-time OTP codes).

• Protective Swivel Key Cover: Circular magnetic/swivel metal cover conceals and shields the brass keyhole against moisture, dust, and tampering.

• Anti-Peep Virtual Passcode Protection: Supports entering random decoy digits before or after the true numeric sequence to mask codes from bystanders.

• Customizable Motorized Auto-Lock: Automatically extends the motorized steel deadbolt after door closure (customizable timer from 5 to 90 seconds).

• One-Touch Exterior Locking: Instantly secure the door from the exterior by pressing and holding the lock button on the keypad.

• Emergency Power Jump-Start: Exterior USB-C / Micro-USB port allows temporary 5V power from a portable power bank if internal batteries are completely flat.

• Universal Left/Right Handing: Symmetrical reversible motorized design automatically detects and adapts to both left-hand and right-hand swinging doors.
