Wi-Tek WI-PS210H 8-Port Fast Ethernet PoE Switch with Dual Uplinks (65W Budget / 250m Extend Mode)

The Wi-Tek WI-PS210H is a compact, high-density 10-port Fast Ethernet PoE switch engineered for small-to-medium CCTV surveillance setups and commercial networking installations. Featuring 8 10/100Mbps PoE ports compliant with IEEE 802.3af/at standards alongside 2 dedicated 10/100Mbps RJ45 uplink ports, it allows simultaneous connections to a central NVR and an external internet router without consuming camera ports.

Powered by a 65W total PoE power budget (delivering up to 30W per port), the WI-PS210H features a hardware DIP switch for 250-meter Extend Mode, allowing long-distance video and power transmission across extended cabling runs up to 820 feet at 10Mbps. Built-in port isolation (VLAN mode) optimizes video traffic by preventing broadcast storms between IP cameras, while integrated surge protection safeguards connected edge devices from electrical transients.

Key System Advantages

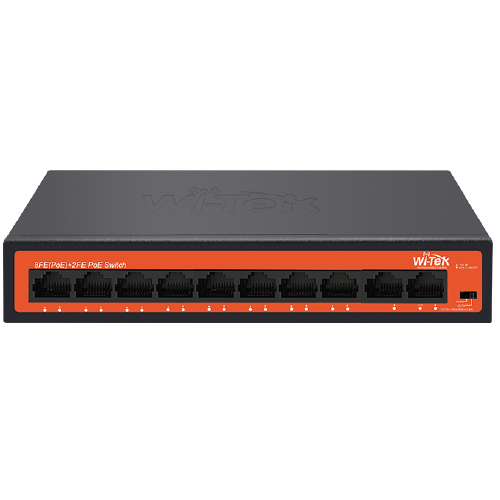

• High-Density 8 PoE + 2 Uplink Layout: Combines 8 PoE ports for IP cameras with 2 dedicated RJ45 uplink ports for simultaneous NVR and router connectivity.

• 250m Extended Surveillance Reach: Hardware DIP switch enables Extend Mode to supply PoE power and data over long cable runs up to 250 meters (820 ft).

• Port Isolation (VLAN Mode): Isolates PoE ports 1–8 from each other to block broadcast storms and reduce video network congestion.

• IEEE 802.3af/at PoE Compliance: Delivers up to 30W on individual ports with a 65W total power budget for IP cameras and network hardware.

• Integrated Circuit Protection: Onboard surge protection guards connected edge equipment against lightning and electrical voltage spikes.
