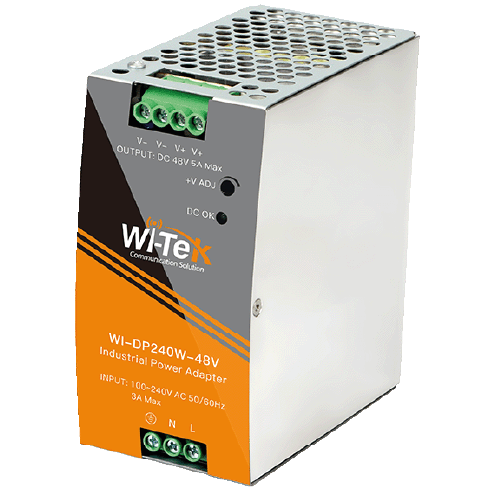

Wi-Tek WI-DP240W-48V Industrial DIN-Rail Power Supply (48V 240W 5A)

The Wi-Tek WI-DP240W-48V is an industrial-grade, high-efficiency 240W DIN-rail power supply engineered to provide stable 48V DC power to industrial PoE switches, outdoor surveillance nodes, and critical automation equipment. Delivering up to 5A of continuous DC current, it accepts a universal AC input voltage range (AC 100~240V) and converts it into precise 48V DC power with minimal electrical noise and line loss.

Built into a compact, heavy-duty metal chassis designed for standard TS-35 DIN-rail mounting, the WI-DP240W-48V features an extended operating temperature range (-40°C to 70°C) to withstand extreme thermal conditions. It includes built-in protection mechanisms against over-voltage, over-current, short circuits, and over-temperature, ensuring maximum operational reliability for demanding industrial applications.

Key System Advantages

• High-Power 240W Output: Delivers a stable 48V DC output at up to 5A, providing ample power budget for heavy-duty industrial PoE switches and camera networks.

• Extended Industrial Thermal Range: Engineered to operate reliably in harsh, unconditioned environments ranging from -40°C to 70°C (-40°F to 158°F).

• Comprehensive Circuit Protection: Onboard protection against short circuits, over-current, over-voltage, and thermal over-temperature.

• Universal AC Input: Supports a wide input voltage range of 100~240V AC for international deployment versatility.

• Compact DIN-Rail Form Factor: Designed for easy snap-on installation on standard TS-35/7.5 or TS-35/15 DIN rails inside industrial enclosures.

Technical Specifications
