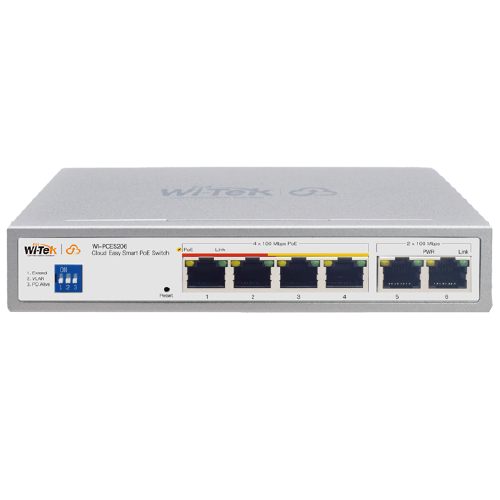

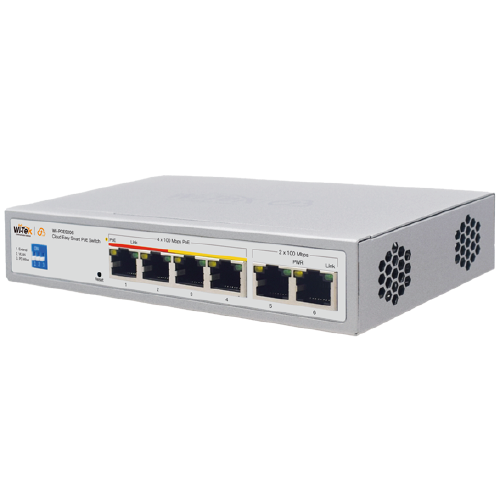

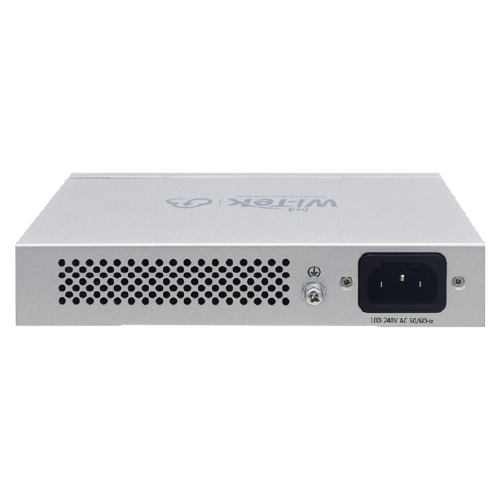

Wi-Tek WI-PCES206 4-Port Fast Ethernet Solar/Battery PoE Switch with Dual Uplinks (62.7W Power Budget)

The Wi-Tek WI-PCES206 is a specialized 6-port Fast Ethernet unmanaged PoE switch specifically designed for off-grid solar deployments, remote CCTV surveillance, and solar-powered outdoor security setups. Featuring 4 10/100Mbps PoE ports compliant with IEEE 802.3af/at standards alongside 2 dedicated 10/100Mbps RJ45 uplink ports, it allows direct connection to an NVR or wireless bridge without sacrificing camera interfaces.

Engineered with solar and DC battery integration in mind, the WI-PCES206 accepts a wide DC power input range (DC 12V–48V) and intelligently boosts output voltage to deliver standard 48V PoE across all 4 camera ports. Providing a total PoE power budget of up to 62.7W (up to 30W per port), it features hardware DIP switches for 250-meter Extend Mode and port isolation (VLAN mode), along with integrated surge protection to shield off-grid equipment from voltage fluctuations and electrical spikes.

Key System Advantages

• Solar & Battery Direct DC Input (12V–48V): Integrated boost converter accepts 12V/24V solar controller or battery power and boosts it to standard 48V PoE output.

• 62.7W Total PoE Power Budget: Delivers up to 30W per port (IEEE 802.3af/at) to power outdoor IP cameras and wireless CPE bridges in remote locations.

• Dual Uplink Architecture: Equipped with 2 independent 10/100Mbps uplink ports for concurrent connections to an NVR recorder and a point-to-point wireless link.

• 250m Extended Surveillance Reach: Hardware DIP switch enables Extend Mode to supply PoE power and data over long cabling runs up to 250 meters (820 ft).

• Port Isolation (VLAN Mode): Isolates PoE ports 1–4 from each other to prevent broadcast storms and optimize video traffic flow.

Technical Specifications
