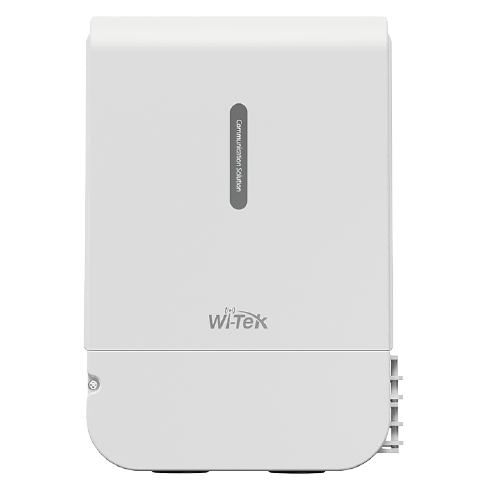

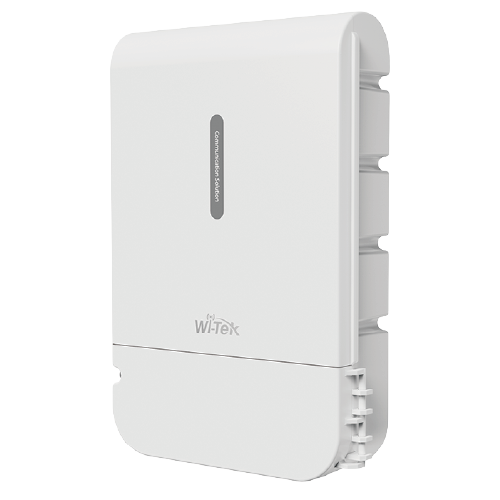

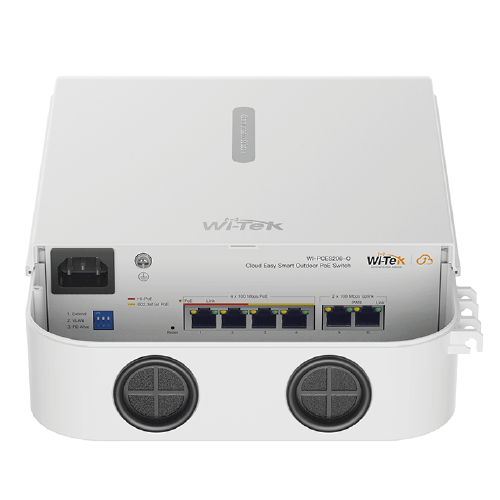

Wi-Tek WI-PCES206-O 4-Port Fast Ethernet Outdoor Solar/Battery PoE Switch with Dual Uplinks (62.7W Power Budget / IP65)

The Wi-Tek WI-PCES206-O is a specialized, all-weather 6-port Fast Ethernet unmanaged PoE switch purpose-built for off-grid solar-powered stations, outdoor IP CCTV surveillance, and remote wireless infrastructure. Featuring 4 10/100Mbps PoE output ports compliant with IEEE 802.3af/at standards alongside 2 dedicated 10/100Mbps RJ45 uplink ports, it allows direct connection to an NVR or point-to-point wireless bridge without consuming camera interfaces.

Designed for DC-powered and solar environments, the WI-PCES206-O accepts a wide DC input range (DC 12V–48V) and intelligently boosts output voltage to deliver standard 48V PoE across all 4 camera ports. Encased in a heavy-duty IP65-rated weatherproof housing, it provides up to 62.7W of total PoE power budget (up to 30W per port) and features hardware DIP switches for 250-meter Extend Mode and port isolation (VLAN mode), along with integrated 6kV surge protection.

Key System Advantages

• IP65 Weatherproof Enclosure: UV-stabilized outdoor chassis designed to operate directly in harsh outdoor conditions without an external junction box.

• Solar & Battery Direct DC Input (12V–48V): Integrated voltage boost converter accepts 12V/24V solar controller or battery power and boosts it to standard 48V PoE output.

• 62.7W Total PoE Power Budget: Delivers up to 30W per port (IEEE 802.3af/at) to power outdoor IR cameras, PTZs, and wireless bridges.

• Dual Uplink Architecture: Equipped with 2 independent 10/100Mbps uplink ports for concurrent connections to an NVR recorder and a wireless CPE link.

• 250m Extended Transmission Range: Hardware DIP switch enables Extend Mode to supply PoE power and video data over extended cable runs up to 250 meters.
