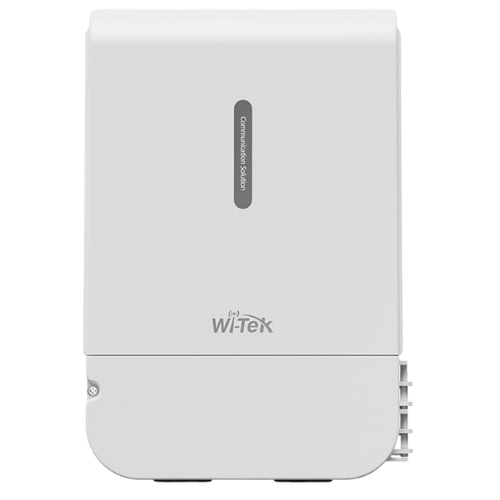

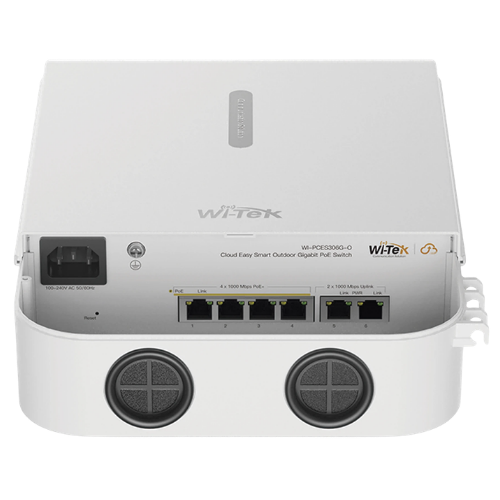

Wi-Tek WI-PCES306G-O Outdoor 4-Port All-Gigabit Solar/Battery PoE Switch with Dual Gigabit Uplinks (65W Budget / IP65)

The Wi-Tek WI-PCES306G-O is an outdoor, industrial-grade 6-port All-Gigabit unmanaged PoE switch purpose-built for off-grid solar-powered stations, high-resolution CCTV surveillance, and outdoor wireless bridge connections. Outfitted with 4 10/100/1000Mbps Gigabit PoE output ports compliant with IEEE 802.3af/at standards along with 2 dedicated 10/100/1000Mbps Gigabit RJ45 uplink ports, it delivers zero-throughput-bottleneck video backhauls to backend NVRs and wireless CPEs.

Designed specifically for DC-powered and solar environments, the WI-PCES306G-O accepts a wide DC input range (DC 12V–48V) and intelligently boosts output voltage to deliver standard 48V PoE across all 4 camera ports with a total power budget of up to 65W (up to 30W per port). Encased in a heavy-duty IP65 weatherproof enclosure, it includes hardware DIP switches for 250m Extend Mode and Port Isolation (VLAN mode), alongside built-in 6kV surge protection.

Key System Advantages

• IP65 Weatherproof Housing: UV-stabilized outdoor casing operates reliably in extreme outdoor environments without needing external weatherproof boxes.

• Solar & Battery Direct DC Input (12V–48V): Integrated voltage boost converter accepts 12V/24V solar controller or battery power and boosts it to standard 48V DC PoE output.

• All-Gigabit High-Speed Architecture: 4x Gigabit PoE ports + 2x Gigabit uplink ports eliminate video latency and bandwidth bottlenecks for high-bitrate 4K cameras.

• 65W Total PoE Power Budget: Delivers up to 30W per port (IEEE 802.3af/at) to power outdoor IR cameras, PTZs, and wireless access points.

• 250m Extended Transmission Range: Hardware DIP switch enables Extend Mode to supply PoE power and data over long cable runs up to 250 meters.

Technical Specifications
