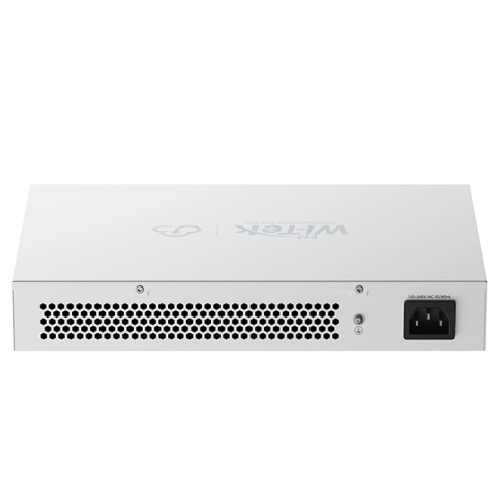

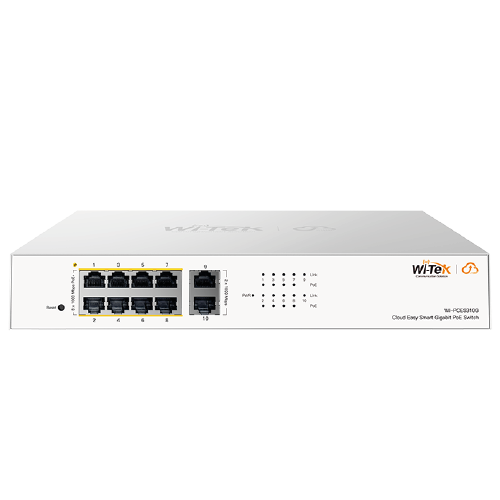

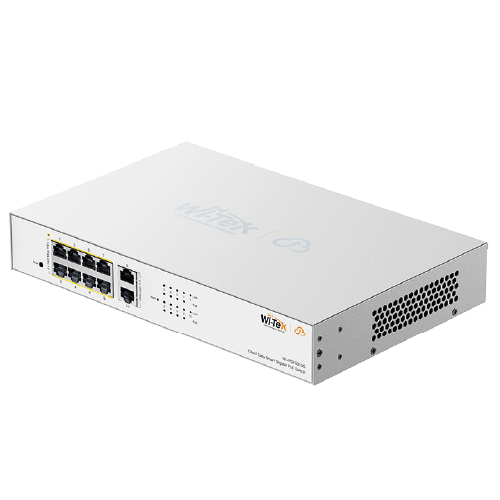

Wi-Tek WI-PCES310G 10-Port All-Gigabit Solar Cloud PoE Switch with Dual Gigabit Uplinks (117W Budget)

The Wi-Tek WI-PCES310G is an advanced 10-port All-Gigabit Cloud Easy Smart PoE switch purpose-built for off-grid solar-powered stations, wireless bridge backhauls, and high-definition IP CCTV networks. Featuring 8 Gigabit 10/100/1000Mbps RJ45 PoE+ ports compliant with IEEE 802.3af/at standards alongside 2 dedicated 10/100/1000Mbps Gigabit RJ45 uplink ports, it allows direct high-speed connections to NVRs and central routers without consuming camera ports.

Engineered specifically for solar, battery, and DC-powered setups, the WI-PCES310G accepts a wide DC power input range (DC 12V–48V) and intelligently boosts output voltage to deliver standard 48V PoE across all 8 camera ports with a total power budget of up to 117W (up to 30W per port). Integrated with the Wi-Tek Cloud Management Platform, network managers gain remote status monitoring, real-time power load tracking, remote port reboot controls, and topology management via web browser or mobile app.

Key System Advantages

• Solar & Battery Direct DC Input (12V–48V): Integrated voltage boost converter accepts 12V/24V solar charge controller or battery power and boosts it to standard 48V DC PoE output.

• All-Gigabit 8 PoE + 2 Uplink Architecture: 8 Gigabit PoE ports for high-definition IP cameras combined with 2 independent Gigabit copper uplink ports for concurrent NVR and router connections.

• 117W Total PoE Power Budget: Delivers up to 30W per port (IEEE 802.3af/at) across 8 Gigabit ports to power high-resolution IP cameras and outdoor access points.

• Wi-Tek Cloud Management Integration: Remotely monitor port status, power consumption, execute remote port reboots, and manage network topology maps anywhere via cloud or app.

• High-Speed Non-Blocking Performance: 20 Gbps switching capacity ensures smooth, wire-speed packet forwarding for heavy video traffic.

Technical Specifications
