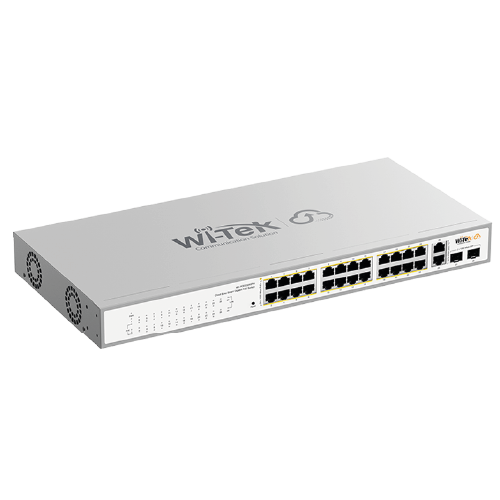

Wi-Tek WI-PCES328GFH 26-Port All-Gigabit Solar/DC Cloud Easy Smart PoE Switch with 2 SFP Slots (245W Budget)

The Wi-Tek WI-PCES328GFH is a high-density, enterprise-grade 26-port All-Gigabit Cloud Easy Smart PoE switch purpose-built for off-grid solar-powered stations, large-scale outdoor CCTV surveillance networks, and corporate IT infrastructure. Featuring 24 Gigabit 10/100/1000Mbps RJ45 PoE+ ports compliant with IEEE 802.3af/at standards along with 2 dedicated Gigabit SFP optical slots, it delivers long-distance, noise-immune fiber links back to central NVRs and core racks without bottlenecking camera streams.

Designed specifically for DC-powered and solar environments, the WI-PCES328GFH accepts a wide DC power input range (DC 12V–48V) and intelligently boosts output voltage to deliver standard 48V PoE across all 24 camera ports with an impressive total power budget of up to 245W (up to 30W per port). Housed in a 19-inch steel rackmountable chassis with integrated 6kV surge protection, it connects directly with the Wi-Tek Cloud Management Platform, granting network administrators real-time solar/battery power tracking, remote port reboot controls, and visual network topology mapping via web browser or mobile app.

Key System Advantages

• 24 All-Gigabit PoE+ Ports (245W Budget): High-density 24-port Gigabit PoE configuration delivering up to 30W per port (IEEE 802.3af/at) with a 245W power budget for large camera deployments.

• Solar & Battery Direct DC Input (12V–48V): Integrated voltage boost converter accepts 12V/24V solar charge controller or battery power and boosts it to standard 48V DC PoE output.

• Dual Gigabit SFP Optical Slots: 2 independent 1000Mbps SFP slots enable high-speed, long-distance fiber optic uplinks to central control rooms and core switches.

• Wi-Tek Cloud Management Integration: Remotely monitor real-time voltage input, track PoE power load, execute remote port restarts, and view full network maps anywhere via cloud or mobile app.

• 19-Inch Steel Rackmount Enclosure & 6kV Surge Armor: Durable metal housing supports standard 19" rack installation, featuring integrated surge protection against power spikes and lightning transients.

Technical Specifications
