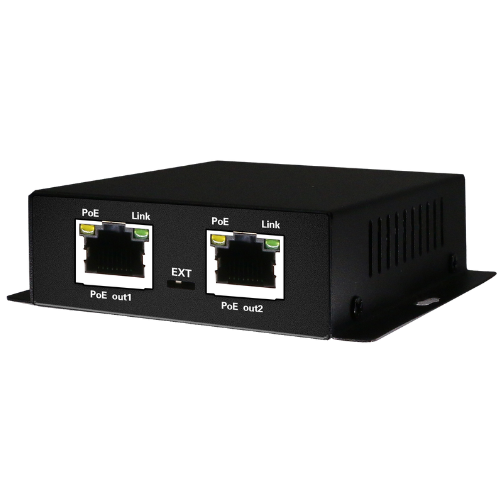

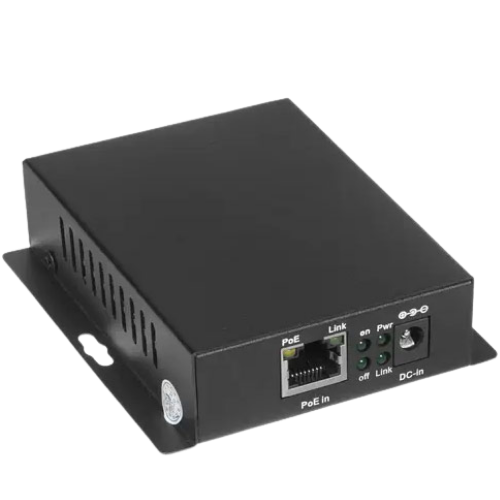

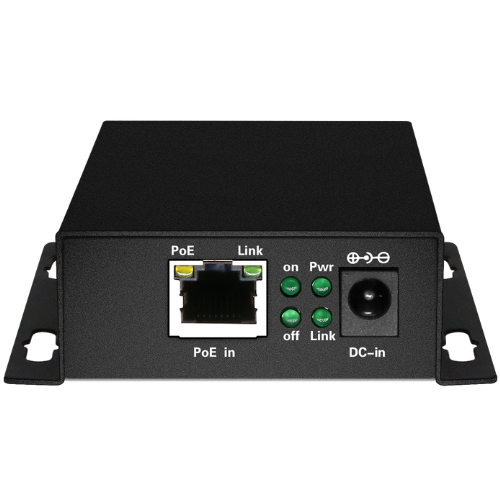

Wi-Tek WI-PE31E 3-Port Fast Ethernet PoE Extender (1 PoE In / 2 PoE Out)

The Wi-Tek WI-PE31E is a compact, cost-effective Fast Ethernet Power over Ethernet (PoE) extender engineered to double or triple network transmission distances for IP CCTV cameras, wireless access points, and VoIP devices. Featuring 1 PoE Input port and 2 PoE Output ports (10/100 Mbps) supporting IEEE 802.3af/at standards, it splits and forwards both high-speed Ethernet data and PoE power across single network runs without requiring external power supplies at intermediate points.

Equipped with a hardware DIP switch for 250-meter Extend Mode, the WI-PE31E overrides standard 100-meter limits, delivering stable power and data to remote edge devices. Multiple units can also be cascaded in series (up to 4 levels) to stretch total network reach up to 550+ meters. Designed with plug-and-play simplicity, fanless silent operation, and integrated circuit protection, it provides a flexible solution for long-range surveillance expansion.

Key System Advantages

• 1-in / 2-out PoE Port Splitting: Receives 1 PoE input line and splits it into 2 separate PoE output channels to power multiple remote IP devices.

• 250m Extended Transmission Range: Hardware DIP switch enables Extend Mode to supply PoE power and data over long cable runs up to 250 meters.

• Cascadable Multi-Level Daisy-Chaining: Supports cascading up to 4 extender units in series to achieve long-range deployments up to 550+ meters.

• No External Power Required: Powered directly via incoming PoE from a main PoE switch or injector (DC 48–55V input compatible).

• IEEE 802.3af/at Compliance: Automatically detects and delivers up to 30W PoE power to end devices.
