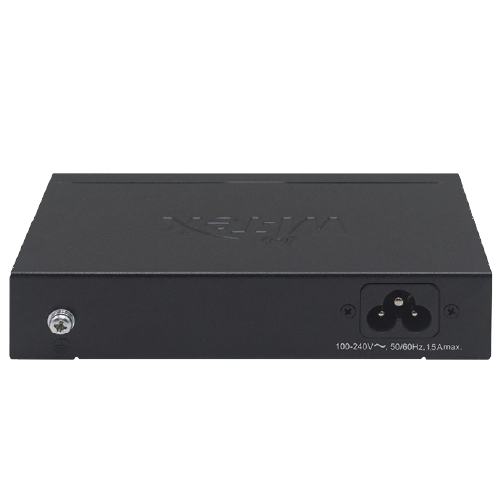

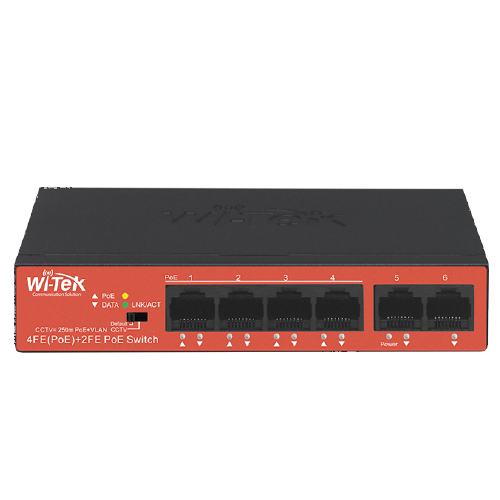

Wi-Tek WI-PS205H V2 4-Port 250m PoE Switch with Dual Uplink Ports

The Wi-Tek WI-PS205H V2 is a compact, unmanaged 6-port Fast Ethernet PoE switch specifically engineered for IP CCTV surveillance and small-scale security installations. Featuring 4 10/100Mbps PoE ports supporting IEEE 802.3af/at standards alongside 2 dedicated 10/100Mbps uplink ports, it enables simultaneous connection to an NVR backend and a local router without consuming camera ports.

Equipped with a hardware DIP switch for 250-meter Extend Mode, it transmits power and video signals across long distance Ethernet runs up to 820 feet at 10Mbps—ideal for reaching distant perimeter cameras. Built-in port isolation (VLAN mode) prevents broadcast storms and video chatter between IP cameras, while integrated 6kV surge protection safeguards connected network hardware against severe electrical transients.

Key System Advantages

• Dual Uplink Architecture: Features 2 independent 10/100Mbps uplink ports to connect simultaneously to an NVR recorder and a network router or switch.

• 250m Extended Surveillance Distance: Hardware DIP switch enables Extend Mode to supply PoE power and data over long cable runs up to 250 meters (820 ft).

• Port Isolation (VLAN Mode): Isolates PoE ports 1-4 from each other to reduce video network congestion and block broadcast storms.

• IEEE 802.3af/at PoE Support: Delivers up to 30W per port (65W total budget) for IP cameras, access points, and VoIP devices.

• 6kV Surge Protection: Integrated hardware protection guards ports against lightning strikes and electrical voltage spikes.

Technical Specifications
