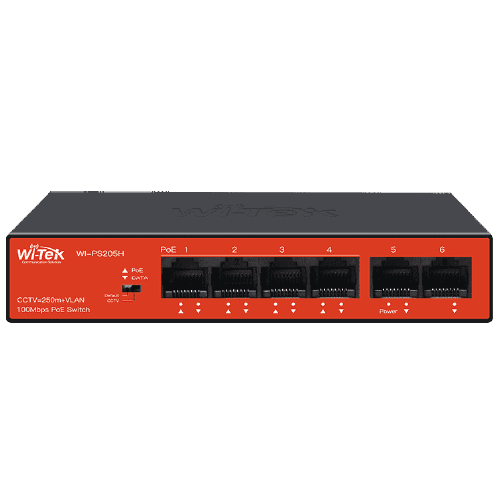

Wi-Tek WI-PS205H V3 4-Port Fast Ethernet PoE Switch with Dual Uplinks (40W Budget / 250m Extend Mode)

The Wi-Tek WI-PS205H V3 is an updated, compact 6-port Fast Ethernet PoE switch engineered for small-to-medium IP CCTV surveillance and desktop networking deployments. Outfitted with 4 10/100Mbps PoE ports supporting IEEE 802.3af/at standards alongside 2 dedicated 10/100Mbps uplink ports, it allows simultaneous connection to a Network Video Recorder (NVR) and a network router without consuming valuable camera ports.

Delivering a 40W total PoE power budget (up to 30W per port), the V3 revision features an hardware DIP switch for 250-meter Extend Mode, allowing PoE power and video data transmission across extended cable runs up to 820 feet at 10Mbps. Integrated port isolation (VLAN mode) prevents video network congestion by blocking broadcast storms between IP cameras, while built-in 6kV surge protection safeguards connected edge hardware from electrical spikes and transients.

Key System Advantages

• Dual Uplink Architecture: Features 2 independent 10/100Mbps uplink ports for simultaneous NVR and router connectivity.

• 250m Extended Transmission Range: Hardware DIP switch enables Extend Mode to supply PoE power and data over long cable drops up to 250 meters (820 ft).

• Port Isolation (VLAN Mode): Isolates PoE ports 1–4 from each other to prevent broadcast storms and reduce camera network traffic.

• IEEE 802.3af/at PoE Compliance: Delivers up to 30W on individual ports with a 40W total power budget for IP cameras and network hardware.

• 6kV Surge Protection: Onboard electrical protection guards connected devices against lightning strikes and power surges.

Technical Specifications
