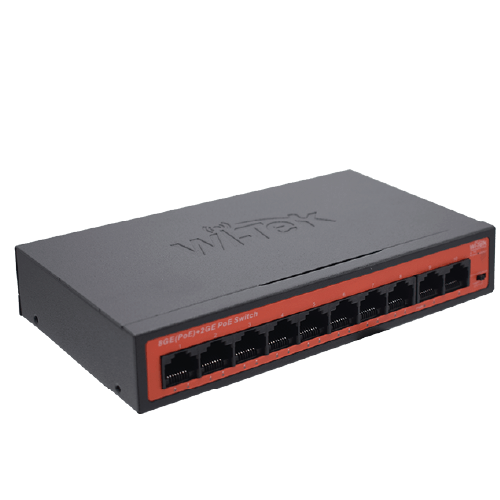

Wi-Tek WI-PS308GHV2 10-Port All-Gigabit PoE Switch with Dual Uplinks (65W Power Budget / 250m Extend Mode)

The Wi-Tek WI-PS308GHV2 is a high-performance 10-port All-Gigabit unmanaged PoE switch engineered for high-resolution IP CCTV surveillance networks, small-to-medium office deployments, and wireless access point installations. Outfitted with 8 Gigabit 10/100/1000Mbps PoE output ports compliant with IEEE 802.3af/at standards alongside 2 dedicated Gigabit 10/100/1000Mbps RJ45 uplink ports, it allows installers to connect to a central Network Video Recorder (NVR) and a router simultaneously without consuming camera interfaces.

Delivering a 65W total PoE power budget (up to 30W per port), the V2 revision features a hardware DIP switch for CCTV / Extend Mode, enabling stable PoE power and video transmission over extended cable runs up to 250 meters (820 ft) at 10Mbps. The CCTV mode also activates port isolation (VLAN) to block broadcast storms between IP cameras and optimize video traffic, while integrated 6kV surge protection safeguards connected edge hardware from lightning and electrical voltage spikes.

Key System Advantages

• All-Gigabit 8 PoE + 2 Uplink Architecture: 8 Gigabit PoE ports for high-definition IP cameras combined with 2 independent Gigabit uplink ports for concurrent NVR and router backhauls.

• 250m Extended CCTV Reach: Hardware DIP switch enables CCTV Mode to supply PoE power and data over long cable runs up to 250 meters (820 ft).

• Port Isolation (VLAN Mode): Isolates PoE ports 1–8 from each other to prevent broadcast storms and reduce video streaming congestion.

• IEEE 802.3af/at PoE Compliance: Delivers up to 30W per port with a total power budget of 65W for IP cameras and network endpoints.

• 6kV Lightning & Surge Armor: Integrated electrical protection guards connected edge equipment against lightning transients and power spikes.

Technical Specifications
