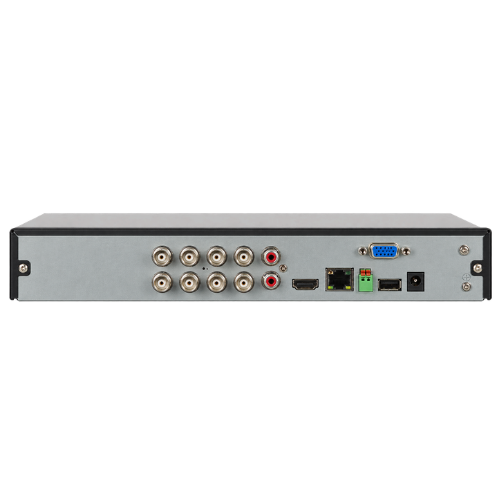

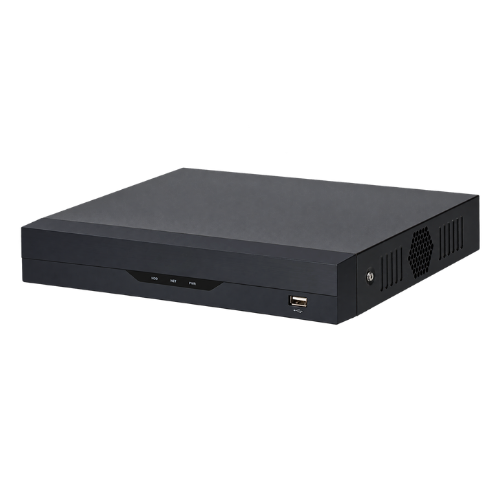

8-Channel Penta-brid 5M-N/1080P Compact 1U 1HDD WizSense Digital Video Recorder

Product Overview

The DHI-XVR5108HS-I3-V3 is an enterprise-grade 8-Channel Penta-brid Digital Video Recorder engineered to deliver intelligent, high-resolution surveillance recording and deep-learning AI analytics for commercial facilities, multi-tenant residential complexes, retail storefronts, and industrial installations. Built with universal hybrid signal processing, this standalone recorder auto-detects and decodes video streams from HD-CVI, AHD, TVI, CVBS (analog), and IP network cameras across all 8 BNC channels without requiring manual reconfiguration. In addition to its 8 analog inputs, it supports up to 4 additional IP network channels (or up to 12 IP channels in pure IP mode) with incoming network bandwidth up to 64 Mbps and resolutions up to 6MP per channel.

Equipped with advanced WizSense AI algorithms, the DHI-XVR5108HS-I3-V3 features SMD Plus (Smart Motion Detection Plus) across all 8 analog channels and Perimeter Protection (Tripwire & Intrusion) on up to 2 analog channels, accurately classifying targets into human and vehicle categories while eliminating false triggers caused by environmental disturbances. Supporting AI Coding, Smart H.265+, and dual-stream compression, the unit reduces video storage consumption and transmission bandwidth by more than 50% compared to standard H.265. Designed in a Compact 1U form factor, the recorder includes one internal SATA port supporting up to 16TB storage capacity, an RS-485 half-duplex serial interface for PTZ speed dome control, synchronous 4K/1080p HDMI and VGA monitor outputs, two-way RCA audio, and complete Audio over Coaxial (AoC) compatibility.

✅ Key Features

• 8-Channel Penta-brid Universal Auto-Detection: Automatically recognizes and processes HD-CVI, AHD, TVI, legacy CVBS analog, and IP video sources on all physical BNC ports.

• Hybrid 8+4 IP Channel Flexibility: Accommodates 8 analog channels plus 4 additional IP cameras (expandable up to 12 channels in pure NVR mode) up to 6MP per channel.

• Full-Channel SMD Plus AI: Deep-learning target classification detects humans and vehicles across all 8 analog channels, drastically minimizing false alarms.

• Advanced Perimeter Protection (2 Channels): Supports intelligent Tripwire and Intrusion rules on up to 2 analog channels with secondary human/vehicle target filtering.

• High-Resolution 5M-N & 1080P Recording: Records high-definition 5M-N (1296 × 1944) and 1080P Full HD video streams with fluid frame rate options.

• High-Efficiency AI Coding & Smart H.265+: Dynamic compression algorithms allocate bitrate priority to human and vehicle targets, significantly lowering bandwidth and HDD overhead.

• Audio Over Coax (AoC) & External RCA I/O: Transmits multi-channel audio over standard coaxial cables alongside 1× RCA audio input and 1× RCA audio output for two-way communication.

• Integrated RS-485 Serial Interface: Dedicated half-duplex RS-485 terminal for direct hardwired control of analog PTZ speed domes and motorized zoom heads.

• High-Capacity 16TB SATA Support: Accommodates one internal 3.5-inch SATA hard drive up to 16TB for extended uninterrupted video archives.

📸 Compatible Devices

• 5MP, 4MP, 1080p, and 720p HD-CVI, AHD, and TVI Bullet, Turret, and Eyeball Cameras

• IP Network Cameras up to 6MP (such as IPF-B14M-A-28, bullet, dome, and turret IP cameras)

• Analog and IP High-Speed PTZ Cameras via RS-485 or Network Interface (such as KB200 controller integration)

• Surveillance-Grade 3.5-Inch SATA Hard Drives up to 16TB (WD Purple, Seagate SkyHawk)

• High-Definition Surveillance Displays and 4K HDTVs (via HDMI or VGA output)

• 2-Channel and Multi-Channel HDMI Video Splitters (such as HDMI-102R) for dual-console monitoring

• Standard RG59 / RG6 Coaxial Cables, BNC Connectors, and UTP Passive Video Baluns

• 19-Inch 1U/2U Server Enclosure Cantilever Shelves and Equipment Cabinets (such as NTDWC6U600)
