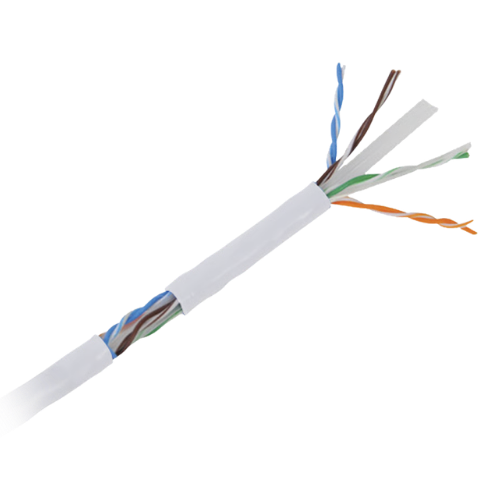

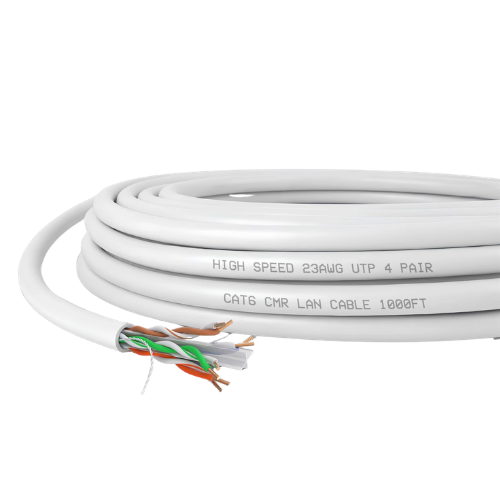

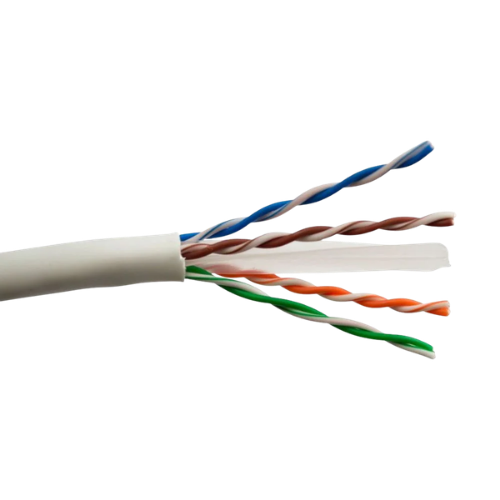

1000FT Category 6 UTP Unshielded Network Cable (23 AWG Solid CCA, White PVC Jacket)

Product Overview

The PROCAT6-W Category 6 UTP Network Cable is an indoor structured cabling solution engineered to deliver high-speed voice, video, and data transmission across residential networks, commercial offices, and physical security installations. Supplied in a heavy-duty 1,000-foot (305-meter) easy-pull dispensing box, this 4-pair unshielded twisted pair (UTP) cable supports bandwidth frequencies up to 250 MHz and transmission throughput up to 1 Gbps (Gigabit Ethernet) over standard channel distances.

Constructed with solid 23 AWG Copper-Clad Aluminum (CCA) conductors, the PROCAT6-W offers a budget-conscious, lightweight alternative to solid bare copper cabling without compromising high-frequency physical geometry. The internal core incorporates an integrated cross-web polyethylene spline (central separator) that maintains precise conductor pair geometry and effectively mitigates Near-End Crosstalk (NEXT) and alien interference. Encased in a durable, high-flexibility flame-retardant white PVC jacket with descending foot/meter length markings and an internal nylon rip cord, it ensures smooth, tangle-free pulling through drywall studs, drop ceilings, and commercial cable raceways.

✅ Key Features

• Category 6 Gigabit Performance: Rated for transmission frequencies up to 250 MHz, supporting Gigabit Ethernet (1000BASE-T) and high-speed data networking.

• 1000FT (305M) Easy-Pull Box: Packaged in a reinforced dispenser box with a snag-free payout grommet for smooth single-person field pulls.

• 23 AWG Solid CCA Conductors: Cost-optimized Copper-Clad Aluminum core reduces overall installation cost and shipping weight while preserving Cat6 dimensional standards.

• Integrated Central Cross-Spline: Polyethylene cross-filler physically separates all 4 twisted pairs to eliminate internal crosstalk and pair-to-pair interference.

• 4 Unshielded Twisted Pairs (UTP): Industry-standard color coding (Blue/White-Blue, Orange/White-Orange, Green/White-Green, Brown/White-Brown) for error-free T568A/T568B terminations.

• Durable White PVC Outer Sheath: Flame-retardant indoor jacket blends into commercial interiors and protects conductors against abrasion and tension strain.

• Sequential Length Markings: Printed counter markings along the jacket provide immediate verification of used and remaining cable on the spool.

• High-Tensile Nylon Rip Cord: Facilitates quick, clean longitudinal jacket stripping without scoring or damaging the underlying wire insulation.

Compatible Devices

• 19-Inch 24-Port and 48-Port Cat6 RJ45 110-Type / Krone Patch Panels

• Cat6 RJ45 Modular Plugs (8P8C) and Tool-Free / Punch-Down Keystone Jacks

• IP Surveillance Cameras, Network Video Recorders (NVRs), and Commercial CCTV Displays

• Gigabit PoE/PoE+ Network Switches (such as LP-SG642FP) and Edge Hardware

• Multi-Door Networked Access Control Controllers (such as C2-260) and IP Readers

• Wireless Access Points (AP), Desktop Workstations, and VoIP Telephony Systems
