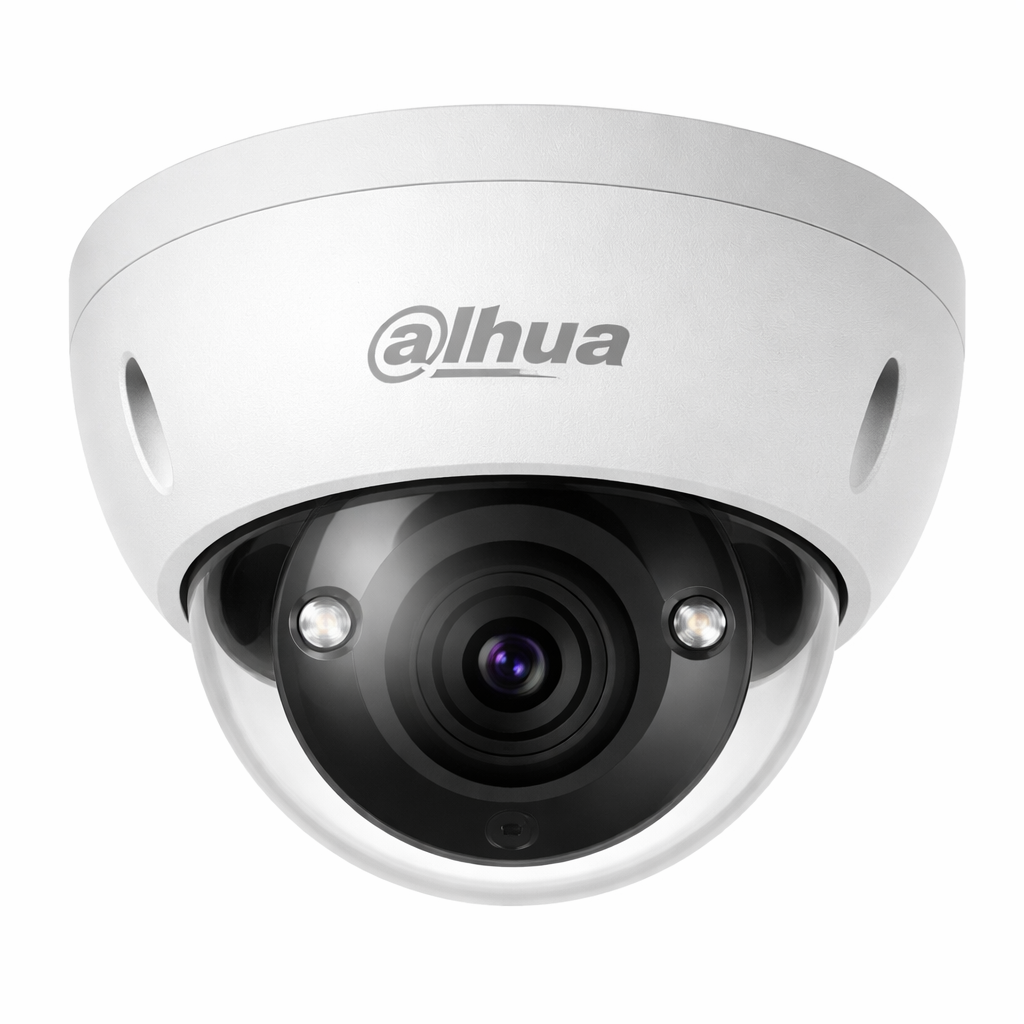

- OEM IPC-HDBW1430EP-0280B-S5 4MP WDR IR Mini-Dome Network Camera OEM IPC-HDBW1430EP-0280B-S5 4MP WDR IR Mini-Dome Network Camera
- Description
> 4-MP 1/3" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2560 × 1440)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, and the max. illumination distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict and illegal access.
> 12 VDC/PoE power supply, easy for installation.
> IP67 , IK10 protection.
| Feature | Description |
|---|---|
| Resolution | 4 Megapixels (2688 × 1520) |
| Image Sensor | 1/3” Progressive CMOS |
| Lens | Fixed 2.8 mm (3.6 mm optional) |
| Angle of View | 104° (2.8 mm) / 87° (3.6 mm) |
| Minimum Illumination | 0.08 Lux (Color) / 0 Lux with IR on |
| Night Vision | Smart IR, up to 30 m (98 ft) |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Frame Rate | 20 fps @ 4MP / 25–30 fps @ 3MP |
| Wide Dynamic Range | True WDR 120 dB |
| Intelligent Functions | Intrusion Detection, Tripwire, Tamper Detection |
| Digital Zoom | 16x |
| Day / Night | Auto (ICR) |
| Network Interface | RJ-45 Ethernet 10/100 Mbps |
| Interoperability | ONVIF Profile S & G |
| Remote Access | Web Browser, Smart PSS, DSS, DMSS (iOS / Android) |
| Power Supply | 12V DC / PoE (IEEE 802.3af) |
| Power Consumption | Less than 5.5 W |
| Protection Rating | IP67 (Outdoor) / IK10 (Vandal-proof) |
| Operating Temperature | -30 °C to +60 °C (-22 °F to +140 °F) |
| Housing Material | Metal |
| Dimensions | Ø109.9 mm × 81 mm |
| Weight | 0.34 kg (0.75 lb) |
