Product overview

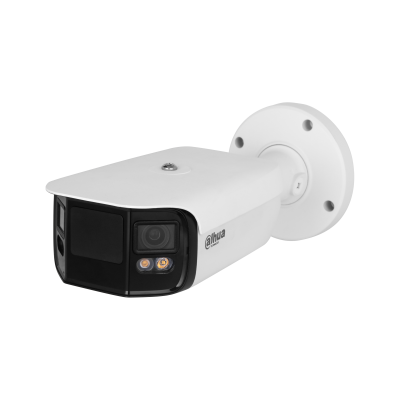

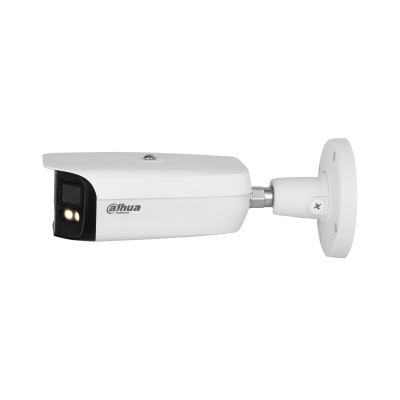

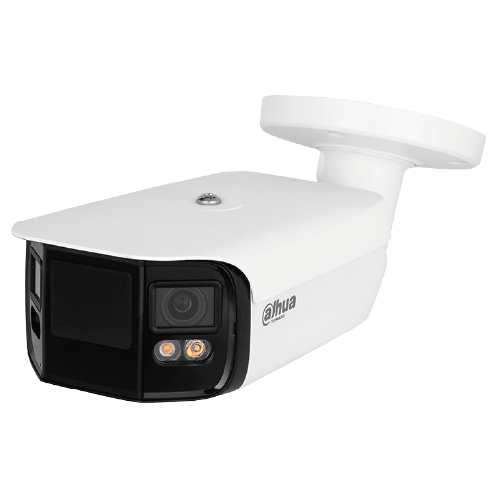

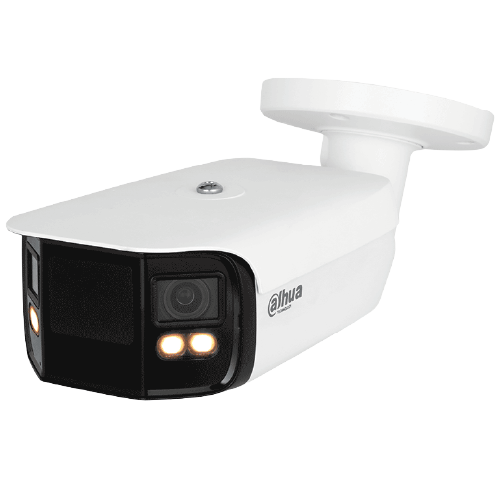

The OEM IPC-PFW5849-A180-E2-ASTE is an enterprise-tier 8 Megapixel (4K) panoramic fixed bullet network IP camera from the high-performance WizMind 5 Series. Engineered for perimeter security, wide plazas, logistics centers, parking facilities, and municipal monitoring, this camera features an advanced dual-sensor hardware splicing architecture (2 × 4MP CMOS). By fusing the video streams of two calibrated lenses internally at the pixel metadata level, it outputs a seamless, distortion-corrected 180° horizontal panoramic canvas at 4K resolution (4096 × 1800 / 3840 × 1680 at 25 fps) without visual blind spots or seam artifacts.
Equipped with Full-Color technology and ultra-wide F1.0 apertures, the camera delivers vivid, full-color forensic details 24/7, assisted by high-efficiency warm white LED illuminators projecting up to 40 meters (131.2 ft) in zero-light environments. Powered by dedicated WizMind deep-learning processors, it delivers EPTZ (Electronic Pan-Tilt-Zoom) auto-tracking to track and frame moving targets across the panoramic scene while maintaining uninterrupted whole-scene recording. Built-in analytics feature SMD 3.0 (Smart Motion Detection) and advanced IVS perimeter rules (tripwire, intrusion, parking, loitering). For active scene management, the unit integrates both a built-in microphone and a high-output loudspeaker for full-duplex two-way talk or automated voice deterrence, alongside 1 alarm in / 1 alarm out, 1 audio in / 1 audio out, an on-board MicroSD card slot (up to 512 GB), and a heavy-duty all-metal IP67 weatherproof housing powered via PoE (802.3af) or 12V DC.
Key System Features & Functionality
-
Dual-Sensor Duo Splicing (2×4MP): Internal pixel-level stitching merges dual 4MP sensors into a single, cohesive 180° panoramic 4K video feed without blind spots.
-
24/7 Full-Color Night Vision (40 m): Dual F1.0 super apertures capture maximum ambient light, paired with warm LED illuminators for vivid color night surveillance up to 40 meters (131.2 ft).
-
Intelligent EPTZ Auto-Tracking: Automatically magnifies, frames, and tracks moving human and vehicular targets across the panoramic canvas without mechanical wear.
-
WizMind Deep-Learning & SMD 3.0: Accurately classifies human and vehicle targets, filtering out false alerts caused by animals, leaves, headlights, or rain.
-
Integrated Two-Way Audio: Features both a built-in microphone and a high-clarity loudspeaker for live two-way voice communication and automated voice warnings.
-
Hardware 120 dB True WDR & 3D NR: Delivers balanced exposure in high-contrast and backlit scenes while eliminating low-light digital noise.
-
Comprehensive Alarm & Audio Interfaces: Equipped with 1 Alarm In / 1 Alarm Out for integration with physical sensors and strobes, plus auxiliary RCA/terminal audio I/O.
-
Rugged All-Metal IP67 Weatherproof Rating: Heavy-duty aluminum housing withstands extreme weather conditions, torrential rain, and dust (-40°C to +60°C).
-
Flexible Power Delivery: Supports Power over Ethernet (PoE 802.3af) for single-cable data and power delivery or standard 12V DC.
|
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
Dual 1/1.8" CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Resolution |
4096 (H) × 1800 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
ROM |
128 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RAM |
1 GB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Min. Illumination |
0.0005 lux@F1.0 (Color, 30 IRE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
S/N Ratio |
>56 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illumination Distance |
40 m (131.23 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illuminator On/Off Control |
Auto |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illuminator Number |
4 (Warm light) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pan/Tilt/Rotation Range |
Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Type |
Fixed-focal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Mount |
M16 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
3.6 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Field of View |
H: 180°±10° V: 48° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Aperture |
F1.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Iris Control |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Close Focus Distance |
3.6 m (11.81 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
3.6 mm |
70.3 m (230.64 ft) |
28.1 m (92.19 ft) |
14.1 m (46.26 ft) |
7.0 m (22.97 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Intelligence |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IVS (Perimeter Protection) |
Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Heat Map |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Smart Object Detection |
Smart abandoned object; smart missing object |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
People Counting |
Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/monthly/daily reports. Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm. Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Smart Codec |
Smart H.265+; Smart H.264+ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
AI Coding |
AI H.265; AI H.264 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Frame Rate |
WDR Off: Main stream: 4096 × 1800 @ (1–25 fps) sub stream: 1024 × 452 @ (1–25 fps) third stream: 1920 × 832 @ (1–25 fps) WDR On: Main stream: 4096 × 1800 @ (1–20 fps) sub stream: 1024 × 452 @ (1–20 fps) third stream: 1920 × 832 @ (1–20 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Stream Capability |
3 streams |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
8M (4096 × 1800); 6.5M (3840 × 1680); 4M (3840 × 1080); 4M (2880 × 1264); 1.6M (1920 × 832); 0.7M (1280 × 560); 0.5M (1024 × 452) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Bit Rate Control |
CBR/VBR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Bit Rate |
H.264: 9 kbps–8192 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Day/Night |
Color/B/W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
BLC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
HLC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
WDR |
140 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scene Self-adaptation (SSA) |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gain Control |
Auto |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Noise Reduction |
3D NR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Region of Interest (RoI) |
Yes (4 areas) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Privacy Masking |
4 areas |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Defog |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Built-in MIC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Compression |
G.711a; G.711Mu; PCM; G.726; G.723 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; SMD; people counting in area; stay detection; people counting; security exception |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Port |
RJ-45 (10/100 Base-T) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SDK and API |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Cyber Security |
Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Protocol |
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; Bonjour |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI; Milestone |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
User/Host |
20 (Total bandwidth: 80 M) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage |
FTP; SFTP; Micro SD card (support max. 512 GB); NAS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Browser |
IE: IE 11 and later Chrome Firefox |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Management Software |
Smart PSS; DSS; DMSS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mobile Client |
iOS; Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE-LVD: EN62368-1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Input |
1 channel (RCA port) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Output |
1 channel (RCA port) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Input |
1 channels in: 5 mA 3 V–5 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Output |
1 channel out: 300 mA 12 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
12 VDC (±30%)/PoE+ (802.3at)/ePoE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
Basic: 4.8 W (12 VDC); 5.5 W (PoE) Max. (WDR + intelligence + warm light + SPK): 12.3 W (12 VDC); 13.8 W (PoE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
≤95% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IP67 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing |
Metal + plastic |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
301.2 mm × 128.2 mm × 120.1 mm (11.86" × 5.05" × 4.73") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
1420 g (3.13 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
1570 g (3.46 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
