- OEM SD5A432XA-HNR, 4MP 32x WizSense Starlight IR PTZ Network Camera (4.8–154mm, 150–175m Smart IR, Auto-Tracking, Deep-Learning Perimeter, 120dB WDR, IP67, IK10, PoE+) OEM SD5A432XA-HNR, 4MP 32x WizSense Starlight IR PTZ Network Camera (4.8–154mm, 150–175m Smart IR, Auto-Tracking, Deep-Learning Perimeter, 120dB WDR, IP67, IK10, PoE+)
OEM SD5A432XA-HNR, 4MP 32x WizSense Starlight IR PTZ Network Camera (4.8–154mm, 150–175m Smart IR, Auto-Tracking, Deep-Learning Perimeter, 120dB WDR, IP67, IK10, PoE+)
- Description
- Key Technical Specifications
Product Overview

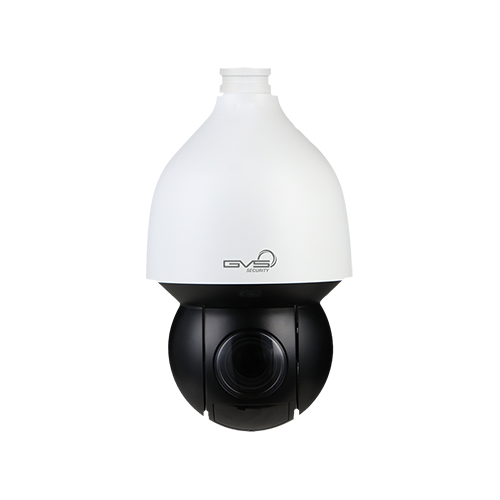

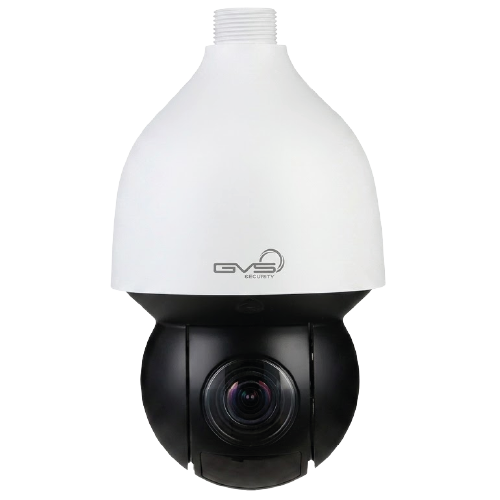

The OEM SD5A432XA-HNR is an enterprise-tier 4 Megapixel 32x optical zoom Starlight speed dome network IP camera from the intelligent WizSense Series. Purpose-built for critical long-range perimeter protection, airports, highway monitoring, expansive industrial complexes, and municipal surveillance, this PTZ camera delivers razor-sharp, high-frame-rate video at 2560 × 1440 (4MP) resolution at up to 30 fps (and 1080p at up to 60 fps). Equipped with an expansive 4.8 mm to 154 mm motorized varifocal lens (32x optical zoom), operators can resolve fine evidentiary details—such as facial features and license plate characters—at exceptional distances.
Engineered with advanced Auto-Tracking technology driven by dedicated deep-learning processors, the camera automatically detects, frames, and follows moving human or vehicular targets traversing restricted zones. Its onboard WizSense analytics deliver high-accuracy Perimeter Protection (Tripwire & Intrusion) and SMD 4.0, filtering out false alarms caused by animals, foliage, weather, or lighting shifts. In total darkness, high-power Smart IR illuminators dynamically adapt to the optical zoom angle, delivering uniform, glare-free night vision up to 150 meters (extendable up to 175 meters / 574 ft). Built with 120 dB True WDR, electronic image stabilization (EIS), an on-board MicroSD slot (up to 512 GB), 2 alarm in / 1 alarm out, and 1 audio in / 1 audio out, the camera is encased in a heavy-duty IP67 weatherproof and IK10 vandal-resistant aluminum housing powered via PoE+ (802.3at) or 24V AC.
Key System Features & Functionality
-
4MP Ultra HD & 32x Optical Zoom: Delivers fluid 2560 × 1440 video with a 4.8–154 mm motorized zoom lens and 16x digital zoom for long-distance forensic target tracking.
-
Intelligent Auto-Tracking: Automatically locks onto, tracks, and zooms in on human or vehicular targets crossing designated boundaries while maintaining smooth pan/tilt motion.
-
WizSense Deep-Learning Perimeter Analytics: Accurately classifies humans and vehicles with tripwire, intrusion, and loitering algorithms, minimizing false triggers.
-
Adaptive Long-Range Smart IR (150–175 m): Zoom-matched infrared illumination extends night vision up to 175 meters (574 ft), preventing central overexposure on close targets.
-
Starlight Technology & 120 dB True WDR: Ultra-sensitive 1/2.8" CMOS sensor delivers clear color details in low light (0.005 Lux), while True WDR resolves severe contrast and glare.
-
High-Speed Pan/Tilt Positioning: 360° endless continuous pan rotation (up to 400°/s preset speed) and -15° to 90° auto-flip tilt (up to 300°/s) with 300 configurable presets.
-
Audio & Alarm Telemetry Interfaces: 2 Alarm Inputs / 1 Relay Alarm Output for physical sensor integration, plus 1 Audio Input / 1 Audio Output for two-way audio.
-
Industrial IK10 & IP67 Rugged Enclosure: Vandal-resistant die-cast aluminum chassis with 6kV surge rating and weather-sealed design built for temperatures from -40°C to +70°C.
-
Flexible Power Architecture: Supports Power over Ethernet Plus (PoE+ 802.3at) for single-cable infrastructure or standard 24V AC power.
|
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
1/2.8" STARVIS™ CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pixel |
4MP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Resolution |
2560 (H) × 1440 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
ROM |
4 GB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RAM |
1 GB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
1/1 s–1/30,000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Min. Illumination |
Color: 0.005 Lux@F1.35 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illumination Distance |
150 m (492.13 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illuminator On/Off Control |
Zoom Prio/Manual/SmartIR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illuminator Number |
4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
4.9 mm–156 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Aperture |
F1.35–F4.4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Field of View |
H: 61.6°–2.1°; V: 35.1°–1.3°; D: 68.2°–2.5° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Optical Zoom |
32x |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focus Control |
Auto/Semi-Auto/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Close Focus Distance |
1 m–1.5 m (3.28 ft–4.92 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Iris Control |
Auto/Manual/Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DORI Distance |
Detect |
Observe |
Recognize |
Identify |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
3120 m (10236.22 ft) |
1232 m (4041.99 ft) |
624 m (2047.24 ft) |
312 m (1023.62 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PTZ |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pan/Tilt Range |
Pan: 0°–360° endless |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manual Control Speed |
Pan: 0.1°/s–300°/s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Preset Speed |
Pan: 400°/s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Presets |
300 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Tour |
8 (up to 32 presets per tour) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pattern |
5 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scan |
5 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power-off Memory |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Idle Motion |
Preset/Tour/Pattern/Scanning |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protocol |
DH-SD |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Artificial Intelligence |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Event Trigger |
Motion detection, video tampering, scene changing, Network disconnection, IP address conflict, illegal access, and storage anomaly. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IVS |
Object Abandoned/Missing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Smart Capture |
Support human, motor vehicle and non-motor vehicle image capture. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Perimeter Protection |
Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Detection |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Auto Tracking |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SMD PLUS |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Compression |
H.265; H.264B; H.264M; H.264H; MJPEG (Sub Stream); H.265+; H.264+ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Streaming Capability |
3 streams |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
4M (2560 × 1440); 3M (2048 × 1536); 1080P (1920 × 1080); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Frame Rate |
Main stream: 4M/3M/1080p/1.3M/720p (1–25/30 fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Bit Rate Control |
Variable/Constant |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Bit Rate |
H.264: 3 Kbps–20480 Kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Day/Night |
Auto (ICR)/Color/B/W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
BLC |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
WDR |
120 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
HLC |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
White Balance |
Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gain Control |
Auto/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Noise Reduction |
2D/3D |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Motion Detection |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Region of Interest (RoI) |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Stabilization |
Electronic |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Defog |
Electronic |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Digital Zoom |
16x |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Flip |
180° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Privacy Masking |
Up to 24 areas, and up to 8 areas in the same view |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
S/N Ratio |
≥ 55 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Compression |
G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G722.1; G729; G723 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Ethernet |
RJ-45 (10/100Base-T) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protocol |
IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP; RTMP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interoperability |
ONVIF Profile S&G&T; CGI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Streaming Method |
Unicast/Multicast |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
User/Host |
20 (total bandwidth 64M) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage |
FTP; Micro SD card (256G); NAS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Browser |
IE7 and later versions |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Management Software |
Smart PSS; DSS; DMSS; Easy4ip; IVSS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mobile Phone |
IOS, Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE: EN55032/EN55024/EN50130-4 UL: UL60950-1+CAN/CSA C22.2,No.60950-1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio I/O |
1 (Line in; bare wire)/1 (Line out; bare wire) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm I/O |
2/1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
DC 24 V/2.5 A ± 25% PoE+ (802.3at) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
Basic: 12 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–40 °C to +70 °C (–40 °F to +158 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
≤ 95% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IP67; IK10; 6000V lightning proof; surge protection; voltage transient protection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimensions |
Φ190 mm × 332 mm (Φ7.48" × 13.07") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
4.7 kg (10.36 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
8 kg (17.64 lb |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
