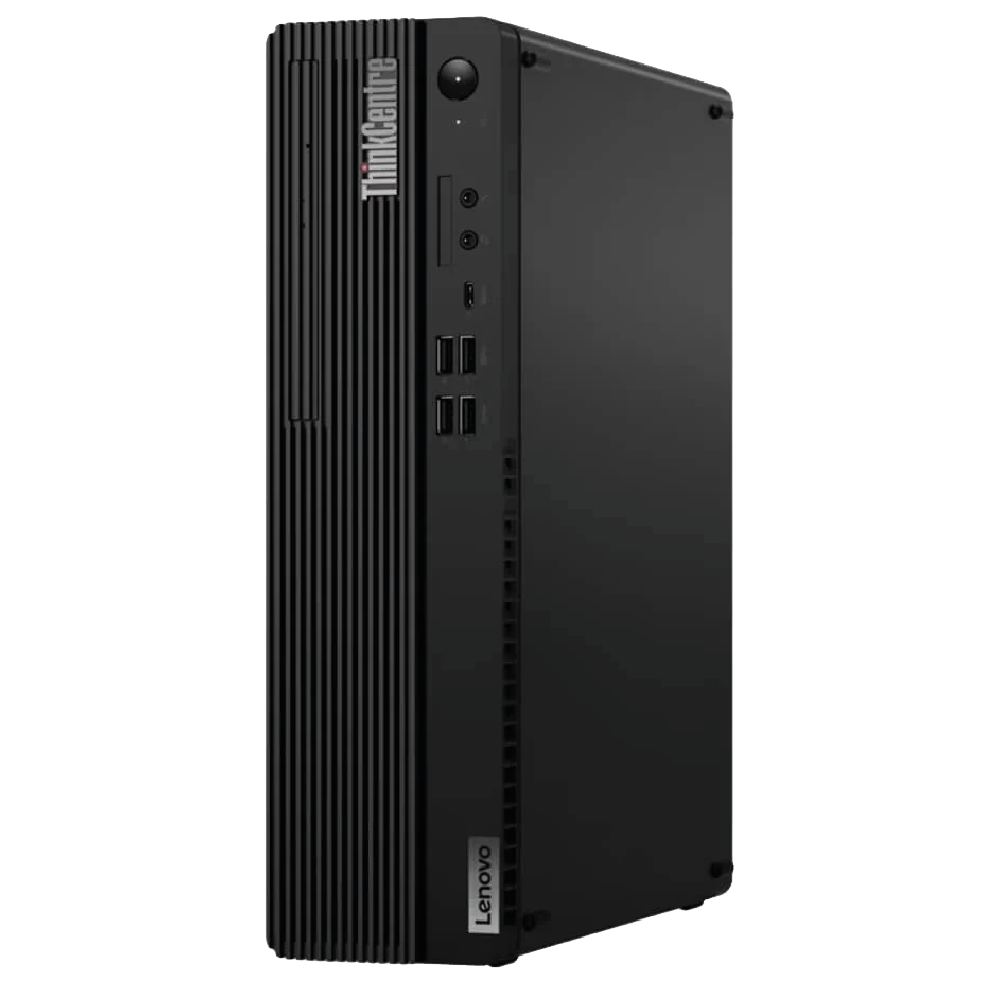

Lenovo ThinkCentre M70s Gen 3 SFF Desktop PC (Intel Core i5-12400 6C/12T, 8GB DDR4 RAM, 512GB NVMe PCIe 4.0 SSD, Intel UHD 730, Gigabit LAN, TPM 2.0, Windows 11 Pro 64-Bit, 3-Year Onsite Warranty, Raven Black)

Product Overview

The 11T80051FJ is an enterprise-tier Small Form Factor (SFF) desktop workstation computer belonging to the Lenovo ThinkCentre M70s Gen 3 business platform. Purpose-built for security operations centers (SOCs), video surveillance monitoring stations (VMS client software, SmartPSS, DSS Pro, HikCentral), access control management servers, corporate IT workstations, and commercial control rooms, this system delivers dependable multi-tasking performance, business-grade hardware security, and broad peripheral expansion in an ultra-compact 8.2-liter desktop chassis.

Driven by a 12th Generation Intel Core i5-12400 6-core / 12-thread processor (6 Performance-cores up to 4.40 GHz Max Turbo, 18MB Intel Smart Cache) built on the Intel Q670 commercial chipset, this PC effortlessly handles multi-camera video decoding and intensive administrative workflows. It is configured with 8GB DDR4-3200 MHz RAM (scalable up to 128GB across four dual-channel DIMM slots) and a high-speed 512GB M.2 2280 NVMe PCIe 4.0 ×4 Opal-encrypted SSD, ensuring rapid OS boot times, fast video clip retrieval, and low-latency database queries. The system features integrated Intel UHD Graphics 730 supporting up to three independent 4K displays simultaneously natively via dual DisplayPort 1.4a and one HDMI 2.1 output. Encased in an eco-friendly structural chassis compliant with MIL-STD-810H military durability standards, the ThinkCentre M70s Gen 3 incorporates Lenovo ThinkShield hardware security with discrete TPM 2.0, integrated Gigabit Ethernet, factory-installed Windows 11 Pro, and an enterprise 3-Year Onsite Warranty for uninterrupted mission-critical deployment.

Key System Features & Functionality

• 12th Gen Intel Core i5-12400 Processor: 6 Cores / 12 Threads with boost clocks up to 4.40 GHz and 18MB Smart Cache, delivering responsive performance for multi-stream surveillance VMS clients and enterprise software.

• 512GB PCIe 4.0 NVMe Opal SSD: High-throughput solid-state storage accelerates system boot times, large log file reads, and incident video clip rendering with hardware-level TCG Opal encryption.

• Expandable Dual-Channel Memory: Comes equipped with 8GB DDR4-3200 RAM with 4 physical DIMM slots supporting memory upgrades up to 128GB.

• Triple Independent Display Support: Integrated Intel UHD Graphics 730 powers up to 3 simultaneous monitors natively via 2 × DisplayPort 1.4a and 1 × HDMI 2.1 ports for multi-camera video walls.

• Compact 8.2L Small Form Factor (SFF): Fits horizontally or vertically on compact monitoring consoles, under desks, or inside equipment cabinets without compromising cooling efficiency.

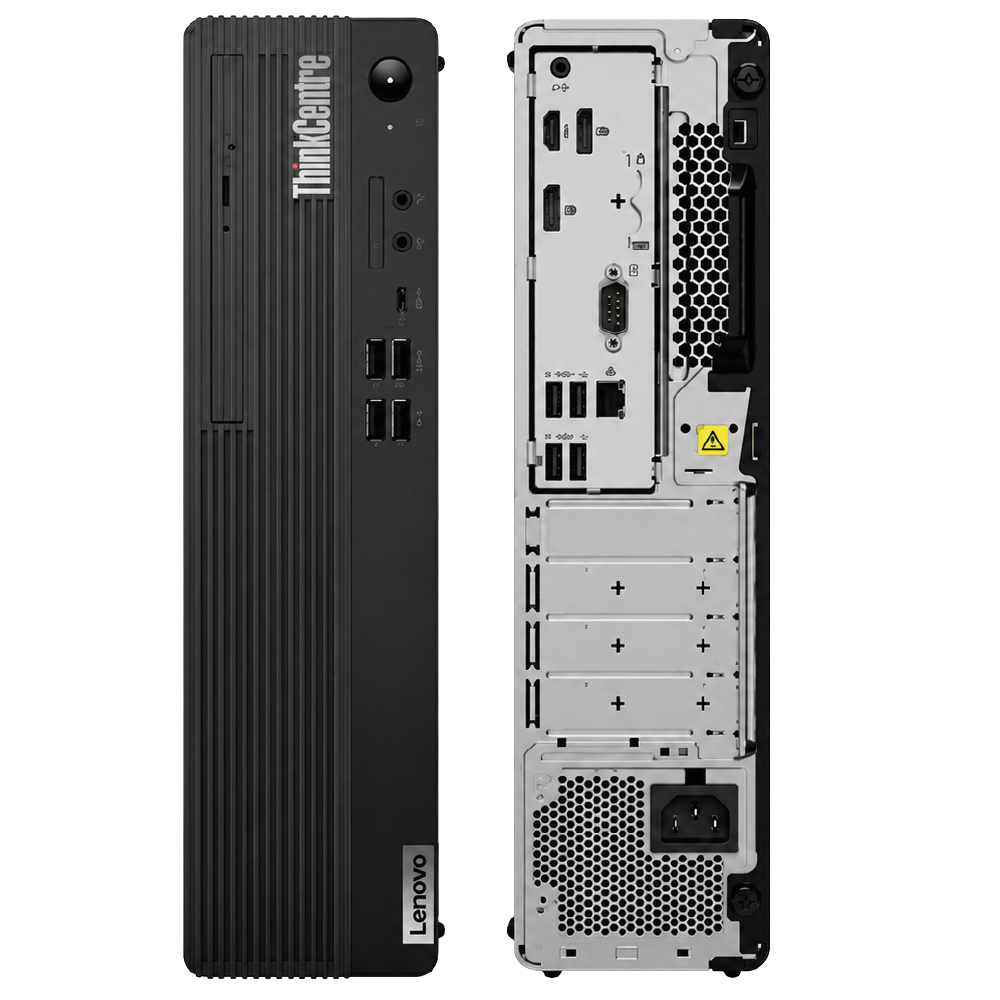

• Robust Front & Rear I/O Connectivity: Offers 9 total USB ports including a high-speed front USB-C 3.2 Gen 1 port (15W power delivery), dual USB 3.2 Gen 2 (10Gbps), dual USB 3.2 Gen 1 (5Gbps), and 4 rear USB 2.0 ports.

• Lenovo ThinkShield & Hardware Security: Integrated discrete TPM 2.0 cryptographic chip, Kensington security lock slot, padlock loop, and BIOS-level Smart USB protection safeguard sensitive network credentials.

• Enterprise 3-Year Onsite Warranty: Backed by Lenovo 3-Year Onsite support coverage, ensuring minimal downtime in mission-critical surveillance and corporate environments.
