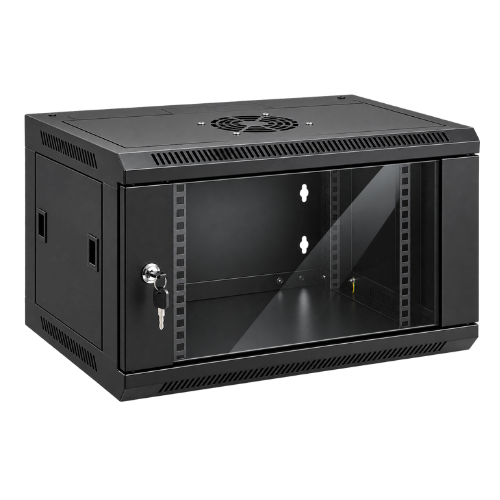

9U 19" Wall-Mount Equipment Cabinet 24"W×19.8"H×18"D (with Cooling Fan, Black)

Product Overview

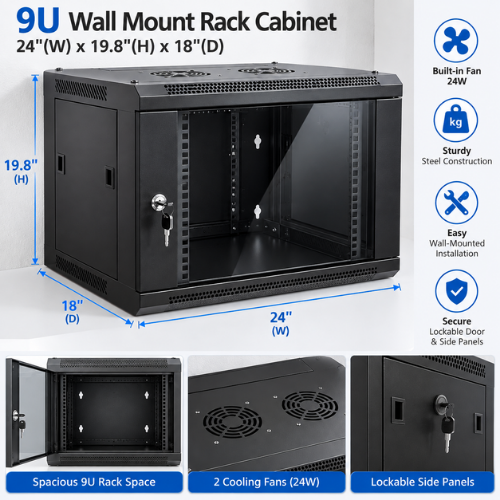

The 300705 9U Wall-Mount Network Rack Cabinet is a commercial-grade 19-inch equipment enclosure engineered to house, protect, and organize intermediate structured cabling installations, IP video surveillance systems, and access control infrastructure. Measuring 24" Wide × 19.8" High × 18" Deep (approx. 600 × 503 × 450 mm), this 9U cabinet provides an extended 18-inch (450 mm) exterior depth, offering ample internal clearance for standard network switches, cantilever equipment shelves, power supplies, and proper cable bend radii without crowding.

Constructed from commercial-grade cold-rolled SPCC sheet steel finished with an electrostatic matte black powder coat, the cabinet features an integrated active roof cooling fan to ensure continuous heat extraction and prevent thermal throttling of active electronics. It includes a key-lockable front door to prevent unauthorized physical tampering, ventilated side panels to facilitate natural convection, pre-punched top and bottom knockouts for clean trunk cable entry, and depth-adjustable vertical 19-inch mounting rails compliant with EIA-310 standards.

Key Features

• Generous 9U Vertical Capacity: Accommodates up to 9 rack units of standard 19-inch patch panels, managed switches, and shelf-mounted equipment.

• Pre-Installed Active Cooling Fan: Roof-mounted axial fan continuously exhausts hot air generated by active surveillance and network devices.

• Functional 18-Inch Depth (450 mm): Delivers plenty of interior depth for equipment resting on shelves, deep patch panels, and organized power cabling.

• Rugged SPCC Steel Body: Fabricated from commercial cold-rolled steel, providing a rigid chassis rated to hold up to 132 lbs (60 kg) securely on wall structures.

• Key-Lockable Security: Front door cam lock safeguards mission-critical network connections and video recording drives from unauthorized access.

• Side Convective Airflow Vents: Slotted side ventilation grilles work in tandem with the roof fan for continuous thermal exchange.

• Top & Bottom Cable Ingress: Pre-punched conduit and cable knockouts streamline cable drop routing from ceilings or floor raceways.

• Adjustable 19" Mounting Rails: Depth-adjustable vertical EIA-310 rails provide flexible mounting depths for shallow or deep equipment configurations.

Compatible Devices

• 19-Inch 1U/2U Managed and Unmanaged Network Switches (such as LP-SG642FP mounted on shelves)

• 1U/2U Cantilever Vented Equipment Shelves (such as 300756, 300766, and 300710)

• 24-Port and 48-Port Cat5e / Cat6 RJ45 Patch Panels

• 1U/2U 19-Inch Fiber Optic Patch Panels and LIU Distribution Enclosures

• Multi-Channel Desktop NVRs, Network Audio Amplifiers, and 12V DC Power Distribution Units

• Multi-Door Networked Access Control Controllers (such as C2-260) and Auxiliary Relay Boards

• Standard 19-Inch 1U Horizontal Rackmount Power Distribution Units (PDUs)
