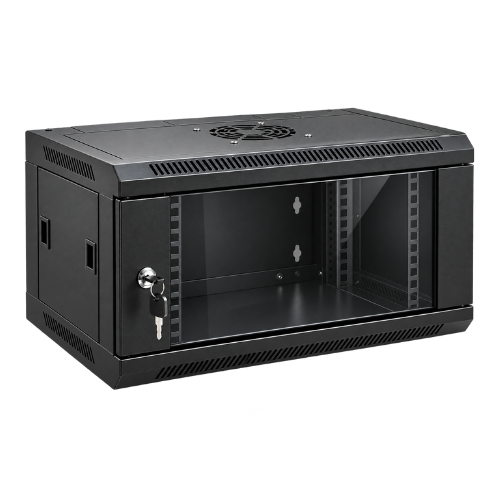

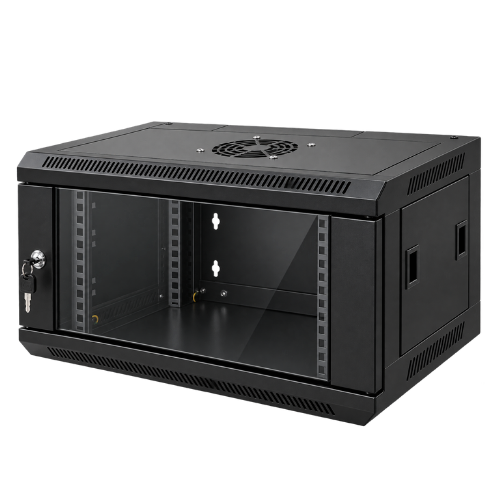

6U 19" Single-Section Wall-Mount Network Cabinet 24"×14"×12" (0.8mm Steel, Built-In Cooling Fan)

Product Overview

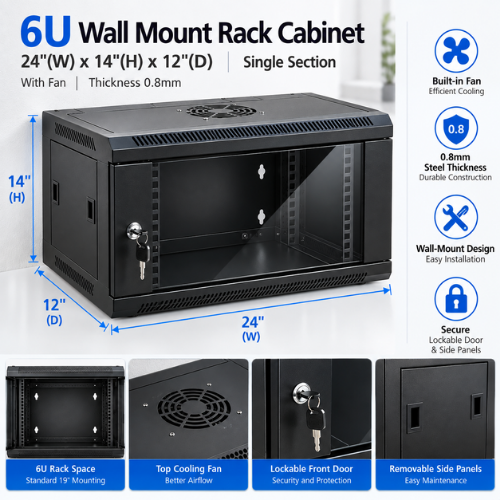

The 300740 6U Wall-Mount Network Cabinet is a low-profile equipment enclosure designed to house and organize structured cabling, telecommunications, and physical security equipment in space-constrained environments. Measuring 24" Wide × 14" High × 12" Deep (approx. 600 × 355 × 305 mm), this single-section fixed enclosure offers a shallow 12-inch depth that minimizes wall-projection clearance, making it an ideal choice for narrow utility closets, retail back-rooms, classrooms, and small office demarcation points.

Constructed from 0.8 mm cold-rolled SPCC commercial-grade sheet steel with an electro-static black powder coating, the cabinet includes a pre-installed 120mm exhaust cooling fan in the top panel to actively pull out hot air generated by active network hardware. The enclosure features a keyed front lock to safeguard internal hardware against unauthorized access, side-wall convective ventilation slots, and pre-punched top and bottom knockouts for clean copper and fiber cable routing into standard 19-inch patch panels and shallow switches.

Key Features

• 6U Rack Unit Capacity: Accommodates up to 6 rack units of standard 19-inch EIA-310 compliant equipment, patch panels, and cantilever shelves.

• Pre-Installed Active Cooling Fan: Integrated roof-mounted exhaust fan actively dissipates heat, preventing thermal throttling in enclosed spaces.

• Shallow 12-Inch Depth Profile: 24" × 14" × 12" dimensions ensure minimal footprint on walls and walkways while fitting shallow equipment.

• 0.8mm SPCC Steel Construction: Rigid cold-rolled steel single-section chassis designed for stable, lightweight wall mounting.

• Key-Lockable Front Security: Front door cam lock provides reliable physical security against tampering and unauthorized disconnections.

• Side Convective Ventilation: Perforated side grilles work in tandem with the active roof fan for continuous thermal exchange.

• Top & Bottom Cable Entry: Pre-punched cable pass-through knockouts simplify conduit connection and trunk cable management.

• Standard 19-Inch Rail Mounting: Built-in vertical rails accommodate standard rackmount hardware, cable organizers, and shallow equipment shelves.

Compatible Devices

• 19-Inch 1U/2U Shallow Network Switches and PoE Injectors

• 1U/2U Cantilever Vented Equipment Shelves (such as 300756 10.5" depth shelf)

• 12-Port, 16-Port, and 24-Port Cat5e / Cat6 RJ45 Patch Panels

• 1U/2U Fiber Optic LIU Termination Enclosures and Splice Trays

• Standalone Desktop NVRs, Compact Access Controllers (such as C2-260), and DC Power Supplies

• 19-Inch 1U Horizontal Rackmount Power Distribution Units (PDUs) / Surge Suppressors
