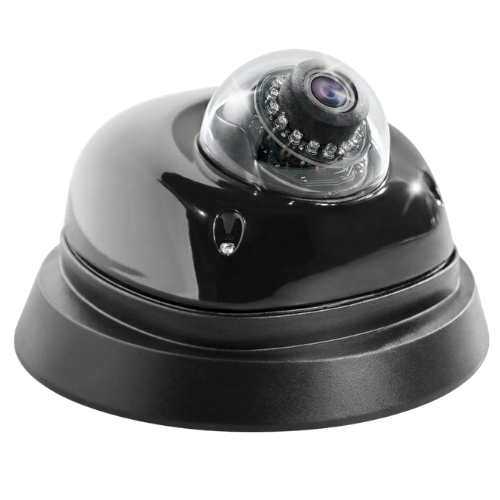

4MP Wi-Fi Mini Eyeball Dome Camera with Built-in Mic (3.6 mm, Micro IR, Non-PoE, 12V DC)

Product Overview

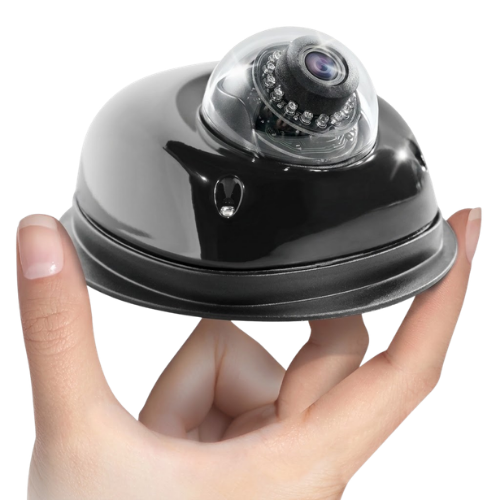

The IP-M4SW-A-CS37 is an ultra-compact 4 Megapixel Wi-Fi low-profile mini eyeball dome network IP camera engineered for discreet, covert, commercial, and mobile video surveillance installations. Featuring a micro-dome form factor that fits in the palm of a hand, it is equipped with a 1/3" progressive scan CMOS sensor and a 3.6 mm fixed lens, capturing crisp video streams at 2560 × 1440 resolution.

Designed for versatile wireless deployment, the camera integrates 2.4 GHz Wi-Fi alongside a secondary RJ-45 Ethernet network port. It features an integrated micro-IR LED ring providing clear night vision in complete darkness, a built-in high-sensitivity microphone for real-time synchronized audio monitoring, digital wide dynamic range (DWDR), and 3D Digital Noise Reduction (3D NR). Operating on 12V DC external power (non-PoE), its sleek black aerodynamic chassis is ideal for retail spaces, elevators, vehicle interiors, ATM kiosks, and low-profile ceiling mounts.

Key System Features & Functionality

• High-Definition 4MP Resolution: Delivers detailed 2560 × 1440 video streams for clear identification of persons and objects in compact zones.

• Ultra-Compact Low-Profile Mini Dome Design: Aerodynamic micro-eyeball footprint allows discreet, unobtrusive ceiling or vehicle installation.

• Built-in Micro-IR Night Vision: Integrated circular infrared LED array provides even, glare-free night illumination in low-light environments.

• Dual Wireless & Wired Connectivity: Features 2.4 GHz Wi-Fi (IEEE 802.11b/g/n) for cable-free setups alongside a wired RJ-45 interface.

• Built-in Audio Microphone: Captures clear ambient sound directly over the network stream without requiring external audio hardware.

• Focused 3.6 mm Lens: Provides an optimized field of view (approx. 78°–80° horizontal) balancing detail and scene depth.

Key Technical Specifications
