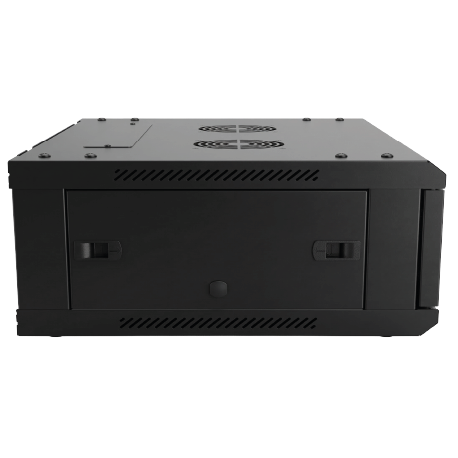

4U 19" Single-Section Wall-Mount Network Cabinet 24"×18"×11" (0.8mm Steel, #10-32 Tapped Rails)

Product Overview

The 300769 4U Wall-Mount Network Rack Cabinet is an ultra-compact, low-profile equipment enclosure designed to consolidate structured cabling, IP video surveillance, and access control hardware in small commercial offices, retail storefronts, and utility closets. Measuring 24" Wide × 18" Deep × 11" High (approx. 600 × 450 × 280 mm), this single-section fixed enclosure provides a practical 18-inch exterior depth that comfortably houses 19-inch patch panels, shallow network switches, and power supplies while maintaining an unobtrusive wall footprint.

Manufactured from 0.8 mm cold-rolled commercial-grade SPCC sheet steel with an electro-static black powder coating, the cabinet incorporates vertical mounting rails factory-tapped with standard #10-32 screw threads, eliminating the need for separate cage nuts and accelerating hardware installation. The enclosure features passive ventilation side louvers to encourage convective airflow, top and bottom knockouts for organized cabling ingress, and a lockable front door with a key cylinder to safeguard sensitive network terminations and edge recording gear against unauthorized access.

Key Features

• Compact 4U Equipment Space: Accommodates up to 4 rack units (4U) of standard 19-inch rackmountable electronics and structured cabling hardware.

• Pre-Tapped #10-32 Mounting Rails: Heavy-duty vertical rails tapped for standard 10/32 rack screws allow fast, direct hardware fastening without cage nuts.

• Balanced 24" × 18" × 11" Footprint: 18-inch depth provides ample clearance for cables, power bricks, and shallow enterprise switches without occupying floor space.

• 0.8mm SPCC Steel Construction: Lightweight yet rigid cold-rolled steel body engineered specifically for secure, low-profile wall mounting.

• Single-Section Fixed Frame: Rigid one-piece chassis design maximizes structural integrity and weight distribution across wall studs.

• Key-Lockable Front Security: Front door cam lock provides positive physical access control to prevent tampering or accidental disconnections.

• Passive Heat Dissipation: Side-wall ventilation grilles vent operational heat naturally away from active electronic equipment.

• Flexible Cable Entry: Top and bottom panel knockouts accommodate conduit adapters and standard twisted-pair/fiber bundle routing.

Compatible Devices

• 19-Inch 1U/2U Network Switches and PoE+ Injectors (such as LP-SG642FP mounted on shelves)

• 1U/2U Cantilever Vented Equipment Shelves (such as 300756 and 300766)

• 12-Port, 16-Port, and 24-Port Cat5e / Cat6 110-Type RJ45 Patch Panels

• 1U/2U Fiber Optic LIU Termination Enclosures and Splicing Drawers

• Standalone Desktop NVRs, Compact Access Controllers (such as C2-260), and 12V DC Power Distribution Units

• Horizontal 19-Inch 1U Rackmount Power Strips / Surge Suppressors

• Standard #10-32 Pilot-Point Rack Screws
