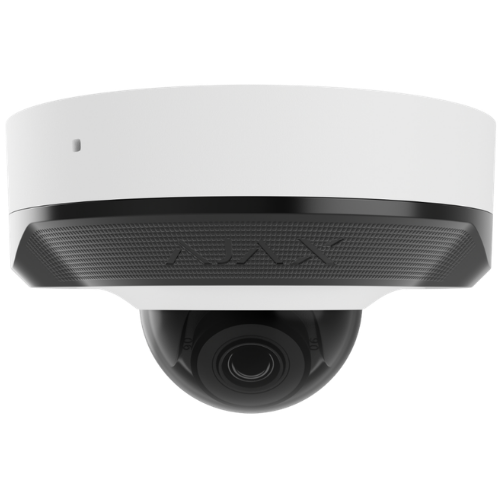

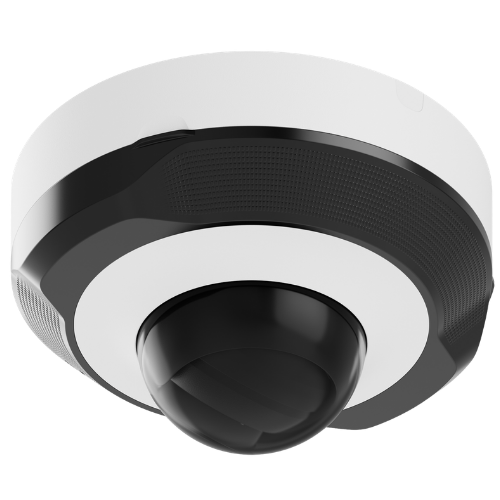

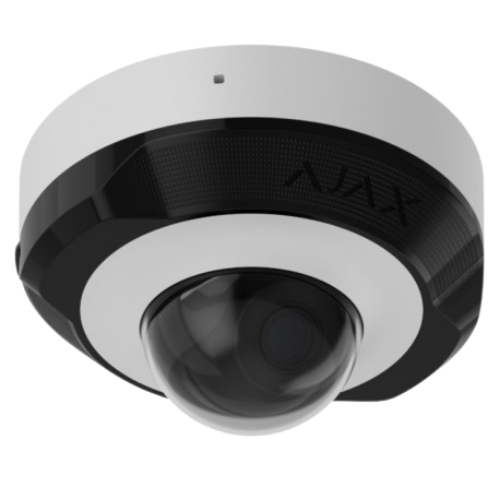

Ajax DomeCam Mini (8 MP / 2.8 mm) – 4K Vandal-Resistant Smart IP Dome Camera (White, ASP)

Product Overview

The Ajax DomeCam Mini (8 Mp/2.8 mm) (SKU: 76022.214.WH3, ASP version) is a flagship 4K vandal-resistant fixed-lens IP dome camera engineered for high-precision video surveillance in residential, commercial, and industrial facilities. Equipped with an ultra-high-definition 8 MP (3840 x 2160 px) CMOS image sensor and a wide 2.8 mm focal length lens providing an expansive 110° horizontal field of view, it captures razor-sharp situational details, facial features, and license plates across entryways, corridors, and exterior perimeters.

Engineered with end-to-end encryption and Ajax's proprietary JetSparrow video streaming protocol, DomeCam Mini ensures instantaneous live feeds, low-latency multi-camera grid playback, and fluid archive scrubbing. It features edge AI-powered object classification (identifying humans, pets, and vehicles), smart Infrared (IR) night vision up to 30 meters, True WDR (Wide Dynamic Range), an integrated digital microphone with G.722 audio compression, and local onboard recording via MicroSD up to 256 GB. Built into a heavy-duty IP65 weatherproof and IK08 impact-resistant white enclosure, it supports flexible power via PoE (802.3af) or external 12 VDC.

Key System Features & Functionality

• 4K Ultra-HD 8 MP Resolution: Delivers exceptional detail and forensic clarity at 3840 x 2160 px @ 20 fps, allowing precise digital zoom and subject identification.

• Ultra-Wide 2.8 mm Optical Lens: Provides a wide 110° horizontal viewing angle to maximize coverage across rooms, lobbies, and facades without edge distortion.

• On-Device AI Object Classification: Edge artificial intelligence analyzes video streams to detect and categorize humans, pets, and vehicles, reducing false recording triggers.

• JetSparrow High-Speed Video Protocol: Proprietary peer-to-peer transmission protocol provides sub-second live streaming and fluid archive scrubbing in the Ajax mobile/desktop apps.

• Smart IR Night Vision up to 30 m: Integrated infrared illumination automatically adjusts intensity based on distance to prevent overexposing close-up objects in total darkness.

• True WDR & Multi-Exposure Processing: Hardware-level Wide Dynamic Range balances high-contrast scenes with harsh backlight, direct sunlight, and deep shadows.

• Built-in Digital Microphone: High-fidelity ambient audio capture using the G.722 codec for synchronized audiovisual monitoring.

• Dual Power Flexibility (PoE / 12 VDC): Powered conveniently over Ethernet cable via PoE standard IEEE 802.3af (Class 3) or through an external 12 VDC ±20% power supply.

• Rugged IP65 & IK08 Protection: Weather-sealed and impact-rated vandal-resistant housing operates reliably between -25°C to +40°C.
