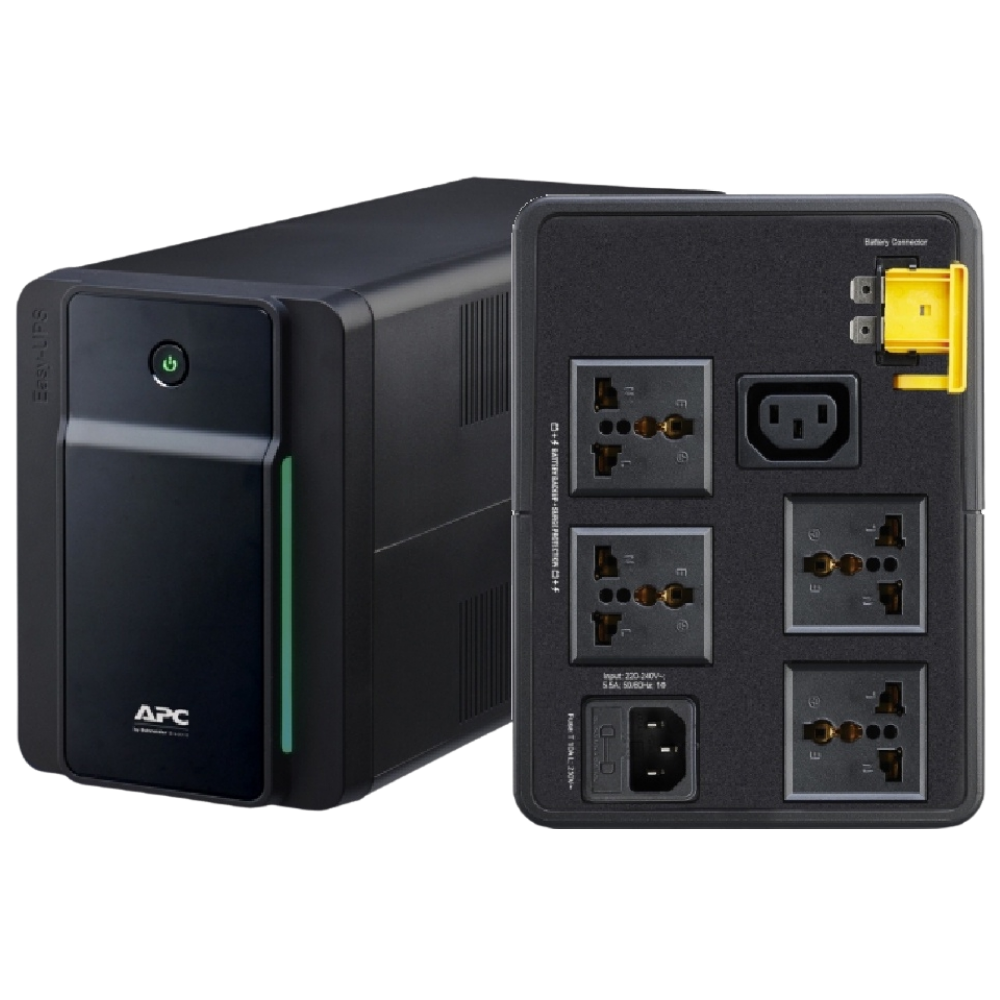

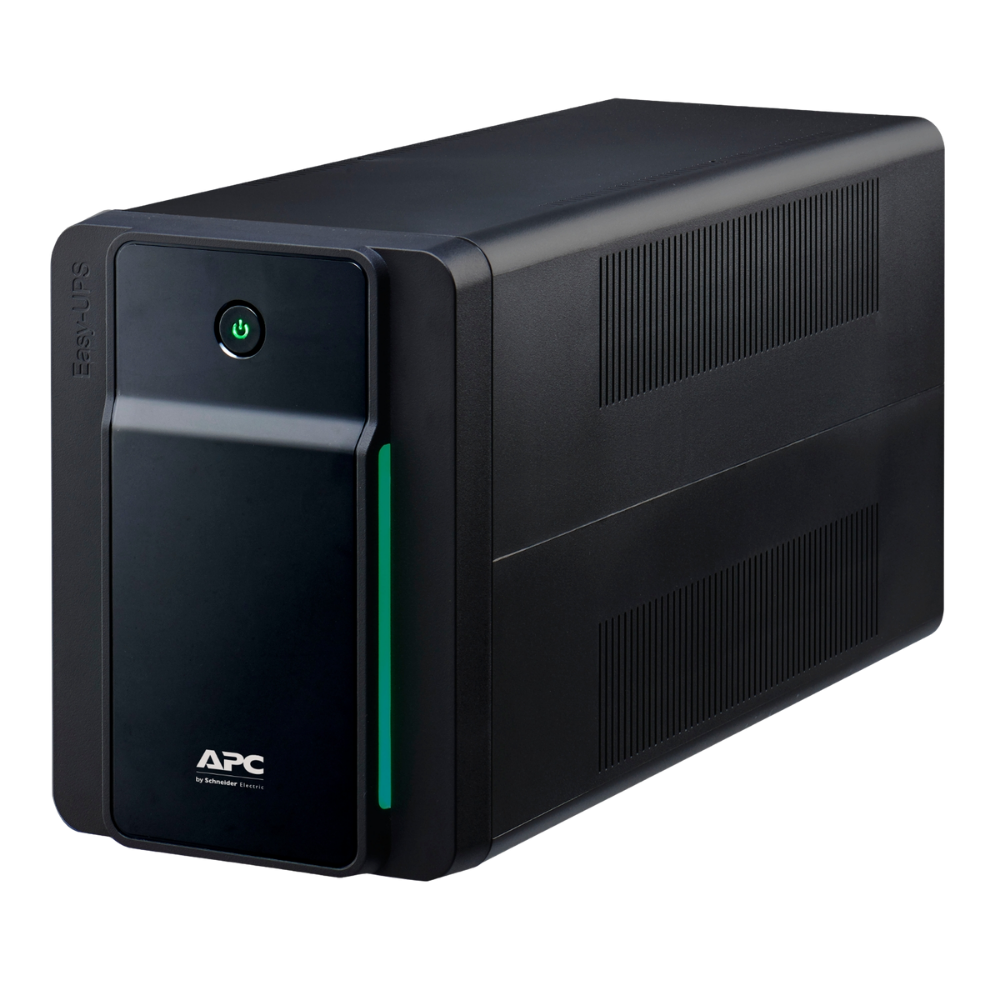

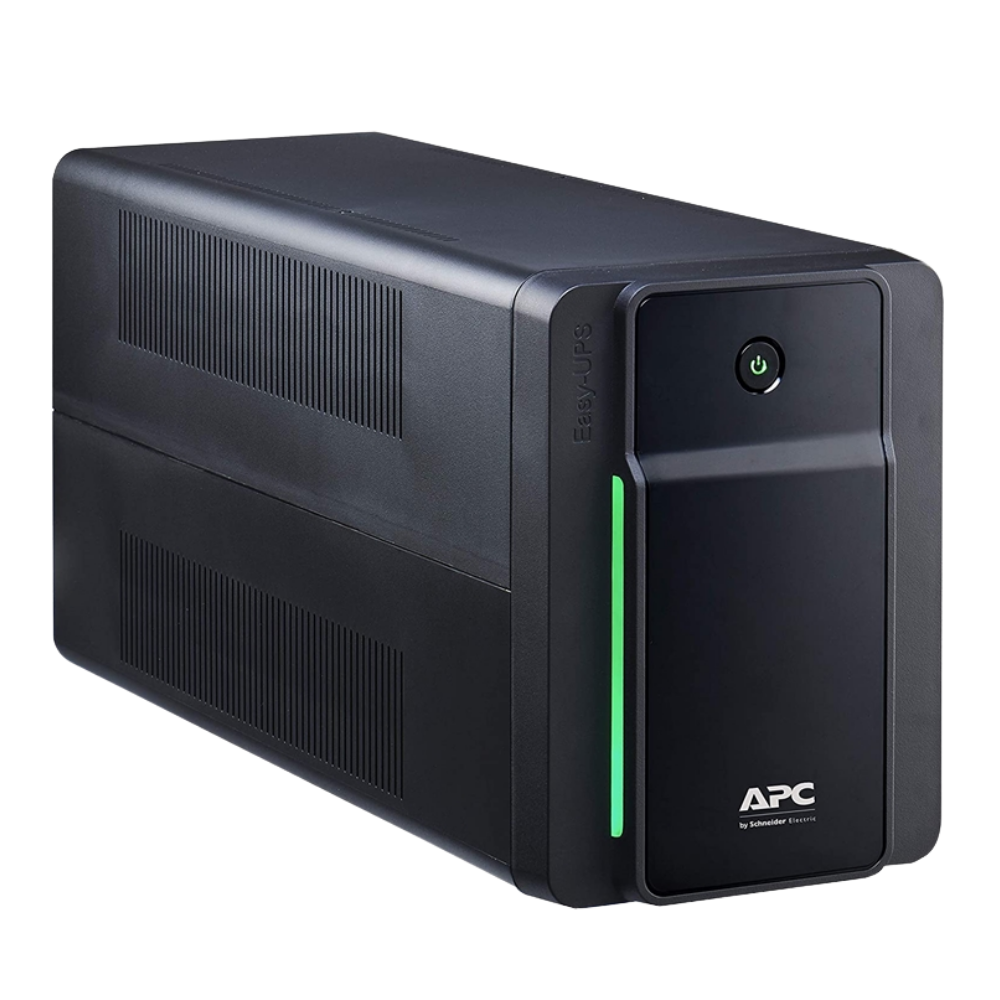

APC Back-UPS / Easy UPS 1200VA / 650W Line-Interactive Battery Backup 120V (Automatic Voltage Regulation AVR, 6 NEMA 5-15R Outlets, 12V 9Ah Battery, Cold-Start Function, Black)

Product Overview

The BVX1200L-LM is an enterprise-grade commercial line-interactive Uninterruptible Power Supply (UPS) manufactured by APC by Schneider Electric under the Back-UPS / Easy UPS BVX series. Purpose-built to maintain continuous operational uptime for multi-channel video surveillance systems (8/16/32-channel NVRs, DVRs, XVRs), CCTV centralized power distribution cabinets, PoE network switches, wireless access points, telecommunication modems, and commercial monitoring workstations, this unit delivers high-capacity clean battery power alongside active voltage conditioning during power sags, brownouts, surges, and total electrical blackouts.

Operating on standard 120V AC (60 Hz) electrical installations, the BVX1200L-LM delivers an expanded power output of 1200VA / 650 Watts, supported by an internal high-capacity 12V / 9Ah sealed lead-acid (VRLA) battery cell. Equipped with Automatic Voltage Regulation (AVR) with Boost and Trim technology, the unit continuously stabilizes low and high utility grid fluctuations without cycling into battery mode, thereby preserving battery runtime for emergency outages and extending overall cell life. Its interface features 6 NEMA 5-15R receptacles, providing battery backup support and transient surge suppression across all ports with wide transformer clearance. With an integrated Quick Mute alarm function, intelligent cold-start capability, visual LED status indicators, and thermal circuit breaker overload protection, the BVX1200L-LM provides reliable power conditioning in a compact tower footprint.

Key System Features & Functionality

• Line-Interactive Topology with Automatic Voltage Regulation (AVR): Instantly stabilizes incoming utility voltage sags and surges without depleting battery energy, maximizing cell longevity.

• 1200VA / 650W Heavy-Duty Capacity: Supports power-intensive surveillance recording systems, multi-drive NVR arrays, PoE switches, and control room displays.

• High-Capacity 12V / 9Ah Internal Battery: Delivers extended runtime to ensure continuous video recording, camera connectivity, and graceful system shutdowns.

• 6 Protected NEMA 5-15R Outlets: Every outlet provides dual-stage protection: emergency battery power during blackouts and continuous voltage surge suppression.

• Transformer-Spaced Receptacles: Form factor accommodates bulky DC adapter plugs and power bricks without overlapping adjacent sockets.

• Cold-Start Functionality: Allows technicians to power up connected surveillance devices directly from the internal battery during total utility outages.

• Quick Mute Audible Alarms: Simple user-silencing feature mutes audible beeps during utility power events while maintaining active protection.

• Comprehensive Overload & Surge Defense: Includes an integrated circuit breaker and 350-Joule surge suppression to safeguard sensitive microprocessors against high-energy transients.
