CAT6 CCA WHITE CAT-6 UTP CABLE 1000FT

Product Overview

The 909887 1000FT Category 6 UTP Bulk Cable is a cost-effective, high-bandwidth network cabling solution engineered for high-density local area network (LAN) data distribution, megapixel IP surveillance camera drops, and commercial structured cabling runs. Supplied in a sturdy, tangle-free 1000-foot (305-meter) easy-pull dispenser box, this unshielded twisted pair (UTP) cable provides an economical, high-performance physical medium for commercial security integrators and low-voltage field technicians working on budget-sensitive indoor projects.

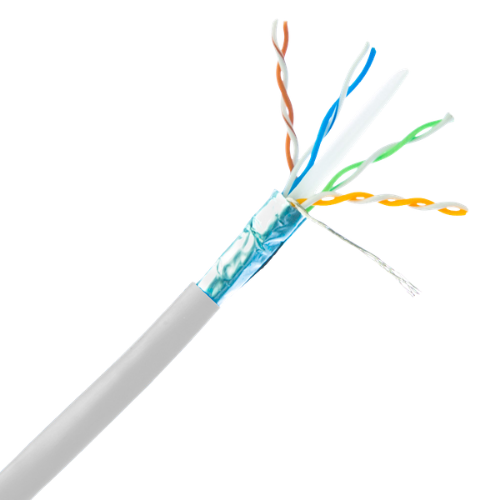

Constructed with 4 tightly twisted pairs of 23 AWG solid Copper-Clad Aluminum (CCA) conductors, the 909887 incorporates an internal polyethylene (PE) cross spline (pair separator) that isolates each pair along the length of the run. This architectural separator significantly reduces Near-End Crosstalk (NEXT), Far-End Crosstalk (FEXT), and internal alien noise across bandwidths up to 250 MHz, supporting reliable 1000BASE-T Gigabit Ethernet and 100BASE-TX Fast Ethernet performance. Wrapped in high-density polyethylene insulation and protected by a flexible, durable commercial white PVC outer jacket with sequential foot markings, it delivers smooth pulling, easy jacket stripping, and clean terminations into standard 110-type keystone jacks, modular patch panels, and RJ45 plugs.

✅ Key Features

• 1000FT (305m) Bulk Easy-Pull Box: Heavy-duty payout carton with a reinforced dispenser eyelet ensures smooth, tangle-free pulling without twisting or kinking.

• Internal PE Cross Spline Separator: Integrated central cross filler maintains structural pair geometry and drastically suppresses Near-End Crosstalk (NEXT) at 250 MHz.

• 4-Pair 23 AWG Solid Construction: Heavy-gauge 23 AWG solid conductors provide strong mechanical stability inside punch-down IDC blocks and modular connectors.

• High-Bandwidth 250 MHz Performance: Verified for Category 6 transmission standards, supporting 1000BASE-T Gigabit Ethernet and high-speed data communications.

• Optimized for IP Video & CCTV: Ideal for IP megapixel camera links, NVR network drops, video intercoms, and access control network drops.

• Flexible Commercial White PVC Sheath: Clean architectural white finish blends seamlessly along painted walls, open commercial ceilings, and surface-mount raceways.

• Sequential Distance Markings: Clearly printed foot-by-foot / meter markings allow installers to track remaining inventory and measure accurate run lengths.

• High-Yield CCA Economy: Delivers significant material cost savings for large-scale commercial installations, residential multi-dwelling units (MDUs), and budget retrofits.

 Compatible Devices

• 4K, 5MP, and 1080p IP Network Surveillance Cameras (such as IPF-B14M-A-28, dome, and bullet models)

• Network Video Recorders (NVRs) and Hybrid DVRs/XVRs (such as DHI-NVR4216-16P-4KS2-L and DH-XVR1B16-I)

• Category 6 RJ45 Modular Crimp Plugs (such as CAT6RJ45 and CAT6RJ45EZ pass-through connectors)

• 19-Inch 1U 24-Port and 48-Port Keystone Patch Panels (such as NTBP24UP)

• Nitrotel 90° and 180° Cat6 Keystone Jacks and Surface Mount Boxes (NTFP01LWH, NTFP02LWH, and NTMB01LWH)

• Gigabit Managed and Unmanaged PoE Network Switches (such as LP-SG642FP)

• Outdoor Wireless Bridges and CPE Radios (such as LOCOM5 and NBE-5AC-GEN2 auxiliary LAN lines)

• Telecommunications Wall Cabinets and Equipment Shelves (such as NTDWC6U600)
