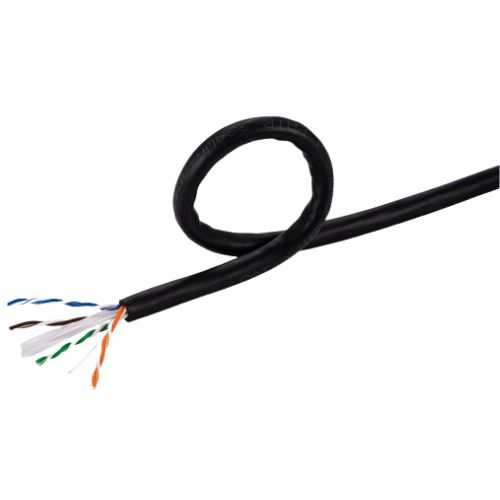

CAT6 DIRECT BURIAL OUTDOOR UTP 23 AWG 4 PAIR BARE COPPER NO GEL FULL COPPER

Product Overview

The 907948 1000FT Category 6 Outdoor Direct Burial UTP Bulk Cable is an enterprise-grade, high-performance structured cabling solution engineered specifically for harsh exterior runs, underground conduit pathways, direct earth burial, and exterior building-to-building interconnections. Unlike standard indoor cables or CCA alternatives, this heavy-duty cable is manufactured with 4 twisted pairs of 23 AWG solid 100% Pure Bare Copper (BC) conductors, ensuring maximum electrical conductivity, minimal DC loop resistance, and certified compliance with ANSI/TIA-568.2-D standards across bandwidths up to 550 MHz.

Built to withstand demanding environmental conditions, the 907948 features an industrial UV-stabilized Linear Low-Density Polyethylene (LLDPE/PE) outer jacket designed to resist solar degradation, extreme temperature swings, moisture ingress, and soil acidity. It utilizes a clean gel-free dry water-blocking tape/core wrap (No Gel), eliminating sticky gel cleanup during termination while maintaining moisture barrier protection. An internal high-density polyethylene (HDPE) cross spline (central pair separator) isolates the twisted pairs to drastically suppress Near-End Crosstalk (NEXT) and maintain signal integrity over long Gigabit (1000BASE-T) and 10-Gigabit (10GBASE-T) network links. With full copper mass, it is suitable for high-power PoE, PoE+, and 90W PoE++ (IEEE 802.3bt) applications, powering outdoor PTZ cameras, wireless access points, and remote access controllers without thermal dissipation issues.

✅ Key Features

• 100% Solid Pure Bare Copper: 23 AWG solid bare copper conductors maximize conductivity, signal integrity, and high-power PoE efficiency over extended spans.

• Direct Burial & Outdoor CMX Rated: Heavy-duty polyethylene (PE) jacket withstands direct subterranean burial, standing moisture, soil compaction, and severe UV sunlight exposure.

• Gel-Free Dry Water-Blocking Core (No Gel): Utilizes dry water-blocking materials rather than messy flooding petroleum jelly, streamlining stripping, prep, and termination.

• High-Bandwidth 550 MHz Rating: Exceeds baseline Category 6 specifications, supporting 1000BASE-T Gigabit Ethernet and 10GBASE-T (up to 55 meters).

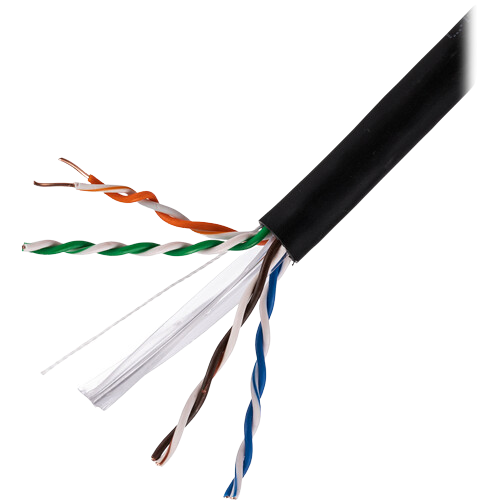

• Integrated PE Cross Pair Spline: Central spline separates all four twisted pairs along the cable length to minimize Near-End Crosstalk (NEXT) and pair distortion.

• Optimized for High-Power PoE++ (90W): Full copper construction easily handles IEEE 802.3af (PoE), 802.3at (PoE+), and 802.3bt Type 3/4 without overheating or signal drop.

• Weatherproof & Temperature Resilient: Operates reliably across broad temperature extremes ranging from –40°C to +75°C.

• Durable 1000FT Spool Packaging: Supplied on a sturdy wooden reel/payout spool for smooth, controlled unrolling during trench and conduit pulls.

📸 Compatible Devices

• Outdoor IP Megapixel Surveillance Cameras and PTZ Speed Domes (such as DH-SD49225DB-HNY and IPF series)

• Network Video Recorders (NVRs) with Integrated PoE (such as DHI-NVR4216-16P-4KS2-L)

• High-Power 60W / 90W PoE++ Midspans and Hardened Industrial Switches (such as LP-SG642FP)

• Outdoor Wireless PtP / PtMP Radios and Access Points (such as NBE-5AC-GEN2, LOCOM5, and Wi-Tek bridges)

• Weatherproof NEMA Enclosures and Junction Boxes (such as BOX14X10X6)

• Category 6 Shielded/Unshielded RJ45 Field Plugs (such as CAT6RJ45 and CAT6RJ45EZ)

• Outdoor IP Intercoms, Gate Entry Stations, and Perimeter Access Control Panels

• 19-Inch 1U 24-Port and 48-Port Keystone Patch Panels (such as NTBP24UP)
