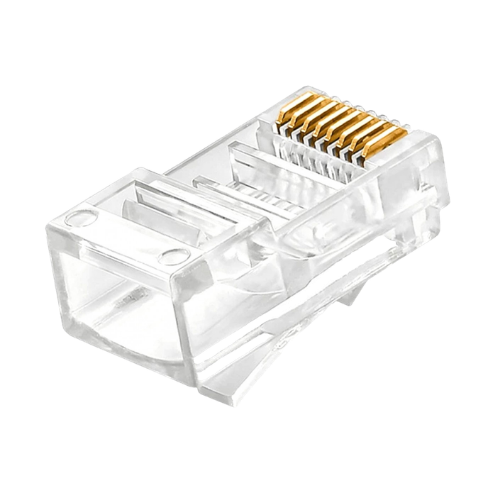

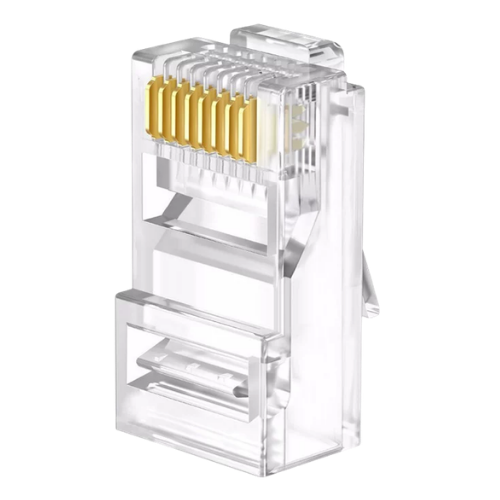

CC5900-CAT5PT Unshielded Cat5e RJ45 Pass-Through Modular Plugs

The CC5900-CAT5PT is a high-performance, unshielded (UTP) Cat5e RJ45 pass-through modular connector designed for fast, error-free field terminations of Category 5e twisted-pair Ethernet cables. Engineered for professional network installers, CCTV technicians, and structured cabling projects, the pass-through design allows individual wire conductors to feed completely through the front face of the plug before crimping.

By allowing direct visual verification of T568A or T568B wire pinouts prior to crimping, the CC5900-CAT5PT minimizes termination mistakes, reduces crosstalk, and ensures optimal contact with the conductor. Featuring 50-micron gold-plated 3-prong contacts, it delivers superior electrical conductivity and durability for Gigabit Ethernet (1 Gbps / 100 MHz) networks, IP surveillance systems, and PoE applications.

Key System Features & Functionality

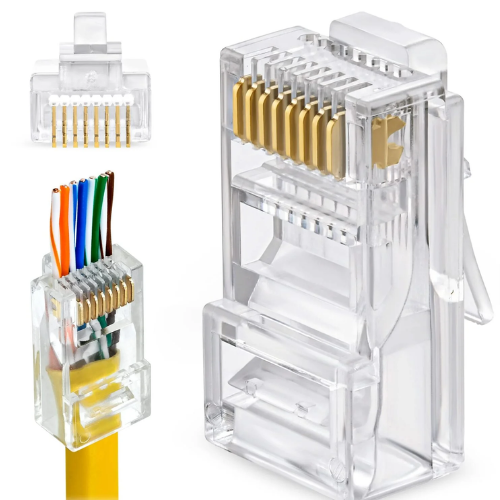

• Pass-Through Wire Design: Wire conductors feed through the front of the connector, allowing installers to confirm correct color-code sequencing (T568A/T568B) before crimping.

• Tighter Twist Maintenance: Enables the cable jacket to seat deep inside the connector body, minimizing untwisted pair length right up to the contacts to reduce NEXT (Near-End Crosstalk).

• 50µ Gold-Plated Contacts: Features 3-prong contacts suited for both solid and stranded 24–26 AWG copper conductors for long-term corrosion resistance and signal integrity.

• Gigabit Network Performance: Fully compliant with Cat5e ANSI/TIA-568-C.2 standards, supporting 10/100/1000 Mbps network speeds and Power over Ethernet (PoE / PoE+).

• Transparent Polycarbonate Housing: Clear, flame-retardant housing offers visibility during cable insertion and alignment inspection.
