Integrated HD Security Camera Tester & CCTV Service Tool

Product Overview

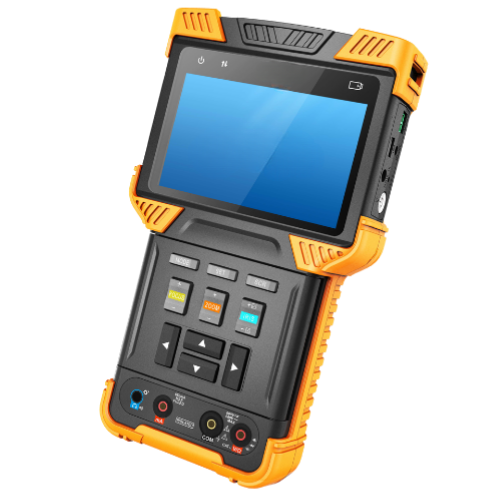

The PFM900-E is an all-in-one handheld CCTV installation and maintenance tool designed for field technicians and security system integrators. Equipped with a 4-inch IPS HD capacitive display, it streamlines video surveillance deployments by allowing installers to test, configure, and troubleshoot HD analog, CVBS, and network IP camera streams directly at the mounting location.

This versatile field tool supports video stream previews, physical cable testing (RJ45 TDR and length measurement), multi-protocol PTZ control, and localized 12 VDC / PoE power output to temporarily energize cameras during setup. Built in a portable, rubberized drop-resistant casing with an integrated neck strap and high-capacity rechargeable battery, it serves as an indispensable instrument for efficient CCTV site maintenance.

Key System Features & Functionality

• Multi-Format Video Testing: Supports live video testing and configuration for HD analog, CVBS, and IP video camera streams.

• 4-Inch IPS Capacitive Touchscreen: High-resolution 800 x 480 IPS display provides clear video previews and intuitive menu navigation under outdoor lighting.

• Integrated Power Supply Outputs: Delivers 12 VDC (2 A) and standard 48 V} Power over Ethernet (PoE) to power security cameras directly during installation.

• Network & Cable Testing: Built-in TDR cable length testing, IP address scanning, ping testing, and RJ45 cable map verification.

• Multi-Protocol PTZ Control: Supports RS-485 serial communication for pan-tilt-zoom control and OSD menu adjustments over coaxial or network cabling.

• Long-Life Rechargeable Battery: High-capacity 7.4 V / 22.2 Wh lithium-ion battery provides up to 8 hours of continuous field operation.
