8-Channel 4K Lite Network Video Recorder with 8-Port PoE

Product Overview

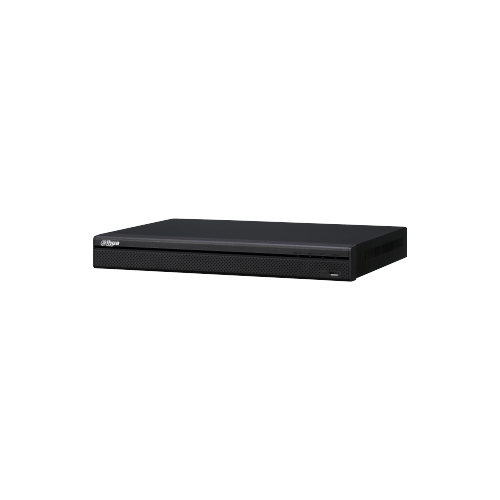

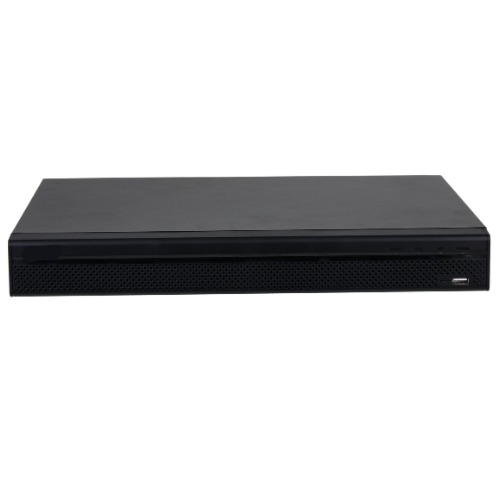

The NVR4208-8P-4KS2-L is an 8-channel 4K Lite network video recorder featuring an integrated 8-port Power over Ethernet (PoE) switch designed for efficient IP surveillance in small-to-medium security setups. Driven by an embedded industrial processor, it supports real-time video stream recording up to 8 Megapixel (4K) resolution across 8 network channels with a total incoming bandwidth of up to 160 Mbps.

Featuring dual SATA internal hard drive bays supporting up to 20 TB total storage capacity (10 TB per drive), this recorder utilizes Smart H.265+ decoding technology to significantly reduce network bandwidth and disk storage footprint. Equipped with simultaneous HDMI (4K) and VGA outputs, plug-and-play PoE camera connectivity, perimeter protection pass-through, and ONVIF profile compatibility, it delivers a high-value recording core for commercial and residential installations.

Key System Features & Functionality

• Integrated 8-Port PoE Switch: Simplifies installation by delivering both network video data and power over a single Ethernet cable directly to 8 IP cameras (IEEE 802.3at/af).

• 8-Channel 4K IP Camera Decoding: Supports up to 8 network IP camera inputs with decoding resolution up to 8MP (3840 x 2160).

• High Bandwidth Capacity: 160Mbps incoming, 160 Mbps recording, and 64 Mbps outgoing bandwidth ensure smooth video handling.

• Dual SATA Storage Bays: Supports 2 SATA hard drives up to 10 TB each (20 TB total capacity) for extended video retention.

• Smart H.265+ / H.264+ Compression: Reduces network bandwidth usage and disk space requirements by up to 70% without compromising visual resolution.

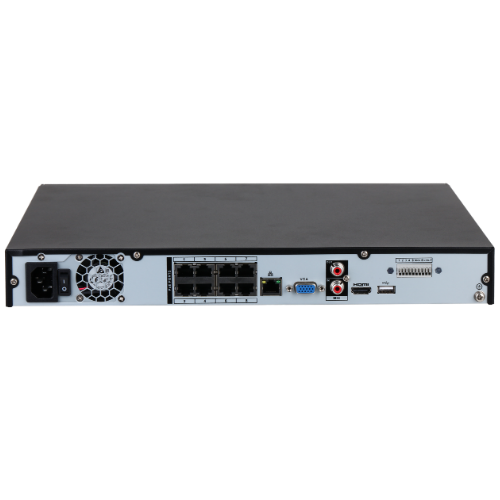

• Simultaneous HDMI / VGA Output: Independent video output ports support up to 4K resolution on HDMI and 1080p on VGA displays.

• AI Feature Support (By Camera): Supports front-end camera AI functions including Perimeter Protection, Smart Motion Detection (SMD Plus), Face Detection, and People Counting.
