DHIL-D51TLM-A-28D – 5MP Smart Dual Light Eyeball Camera with Built-in Mic (2.8 mm, IP67, IR & Warm Light 20m)

Product Overview

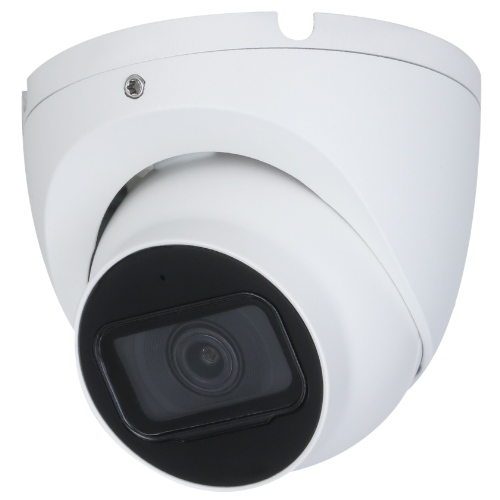

The DHIL-D51TLM-A-28D (HAC-HDW1500TLM-IL-A-S2) is a high-performance 5 Megapixel HD analog eyeball/dome security camera engineered for commercial, residential, and perimeter video surveillance installations. Featuring advanced Smart Dual Light technology, this camera intelligently balances discreet infrared surveillance with vivid full-color night imaging. By default, the camera utilizes IR illumination to monitor dark environments silently; upon target detection in monitored zones, it automatically triggers warm white light LEDs to capture full-color evidentiary details up to 20 meters (65.6 ft).

Equipped with a wide-angle 2.8 mm fixed lens and a high-sensitivity image sensor, it delivers sharp, high-definition video at 5MP resolution (2880 × 1620 at 25 fps) in 16:9 aspect ratio across HDCVI, HDTVI, AHD, and standard CVBS formats via multi-format switchable BNC output. The unit features an integrated high-fidelity microphone for single-coaxial audio transmission, digital wide dynamic range (DWDR), and 3D/2D digital noise reduction. Built into an IP67 weatherproof metal and plastic hybrid enclosure, it operates reliably across extreme temperatures from -40°C to +60°C.

Key System Features & Functionality

• High-Definition 5MP 16:9 Video: Captures crystal-clear 2880 × 1620 resolution without image stretching or letterboxing.

• Smart Dual Light Technology: Seamlessly transitions between IR night vision (20 m) and bright warm white light (20 m) to record full-color footage when motion is detected.

• Built-in Audio Microphone: Captures high-fidelity ambient sound transmitted directly over the same coaxial cable without separate audio wiring.

• Wide-Angle 2.8 mm Fixed Lens: Provides a wide field of view (approx. 106° horizontal) for broad coverage in tight and open spaces alike.

• 4-in-1 Multi-Format Video Output: Switchable between HDCVI, HDTVI, AHD, and CVBS analog signals for universal DVR compatibility.

• Rugged IP67 Weatherproof Rating: Heavy-duty weather-sealed housing prevents water and dust ingress across extreme climates from -40°C to +60°C.

• Image Optimization Suite: Integrates DWDR, BLC, HLC, and Digital Noise Reduction to maintain balanced exposure in high-contrast lighting.
