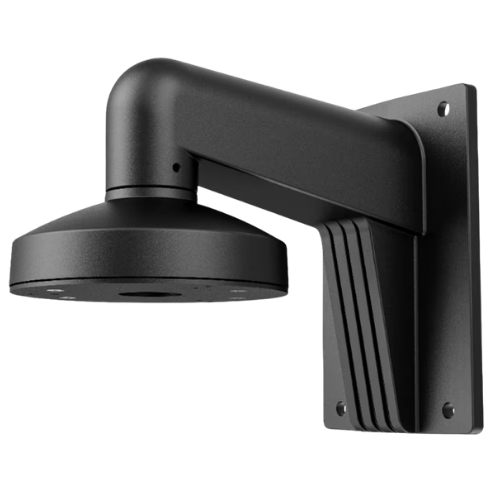

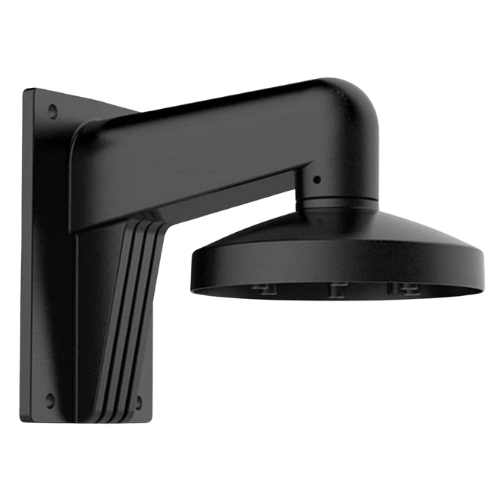

Hikvision DS-1273ZJ-155 (Black) – Wall Mount Bracket for Dome Cameras (Aluminum Alloy, 155 mm / 6.10")

Product Overview

The Hikvision DS-1273ZJ-155 (Black) (Dimensions: 155.0 mm x 183.5 mm x 240.0 mm / 6.10" x 7.22" x 9.45") is a heavy-duty outdoor and indoor aluminum wall mount bracket engineered specifically for compatible Hikvision medium-to-large dome and turret IP/analog security cameras. Designed for commercial, industrial, and architectural video surveillance installations, this bracket elevates and angles the camera away from the wall to deliver an optimal viewing angle across dark facades, modern storefronts, hallways, and exterior perimeters.

Constructed from robust die-cast aluminum alloy with an integrated waterproof silicone sealing gasket, the DS-1273ZJ-155 protects camera pigtails, RJ-45 network terminations, and power plugs from moisture, rain, and dust ingress. It features an internal hollow channel for completely concealed cable routing, supports a structural load capacity of up to 4.5 kg (9.92 lbs), and comes finished in a durable matte black powder coating for superior corrosion resistance and discrete integration in dark-themed architectural settings across temperatures from -40°C to +60°C.

Key System Features & Functionality

• Dedicated 155 mm Hikvision Dome Compatibility: Precision-engineered mounting adapter plate designed specifically for Hikvision 155 mm dome and turret camera series.

• Heavy-Duty Aluminum Alloy Construction: High-strength die-cast aluminum prevents structural bending, rust, and physical tampering under demanding exterior conditions.

• Concealed Internal Cable Management: Hollow arm routes Ethernet, power, and audio wiring internally, protecting connections against UV damage, weather exposure, and vandalism.

• Weatherproof Sealing Gasket: Integrated rubber/silicone gasket prevents water and moisture from entering the wall cavity and camera connection base.

• High Load-Bearing Capacity (4.5 kg): Safely supports camera loads up to 4.5 kg (9.92 lbs) with high resistance to wind vibration.

• Architectural Matte Black Finish: Premium black powder coating provides seamless aesthetic matching for black security cameras and dark structural facades.

• Extreme Climate Resistance: Built to operate reliably in severe outdoor environments ranging from -40°C to +60°C.
