Hikvision DS-1275ZJ – Outdoor Vertical Pole Mount Bracket (144.0 x 131.6 x 44.3 mm / 5.67'' x 5.18'' x 1.74'')

Product Overview

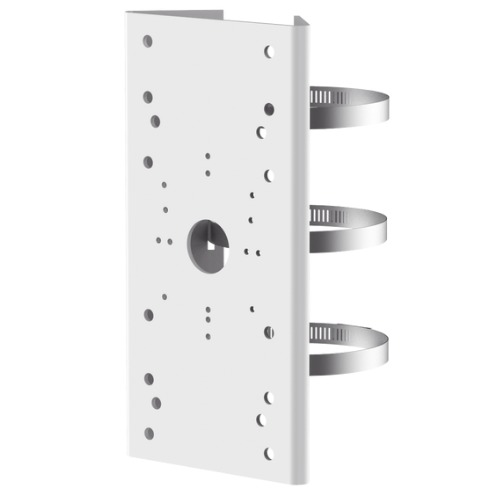

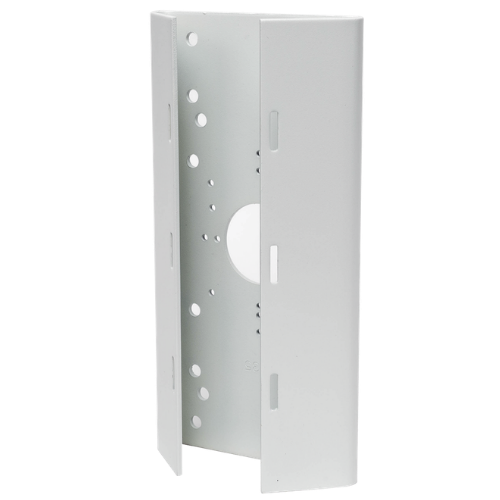

The Hikvision DS-1275ZJ (Dimensions: 144.0x 131.6 x 44.3 mm / 5.67'' x 5.18'' x 1.74'') is a heavy-duty outdoor vertical pole mount adapter engineered to securely mount Hikvision security cameras, wall mount brackets, and junction boxes onto round utility poles, masts, and vertical posts. Designed for commercial, perimeter, and municipal video surveillance installations, it accommodates pole diameters ranging from 67 mm to 127 mm (2.64'' to 5.0'').

Constructed from robust stainless steel / steel alloy with a protective surface spray treatment, the DS-1275ZJ provides maximum structural stability with a high load-bearing capacity of up to 10.0 kg (22.05 lbs). It features a multi-pattern pre-drilled threaded matrix that integrates seamlessly with Hikvision wall mount brackets (such as DS-1272ZJ, DS-1273ZJ series) and camera junction boxes, operating reliably in extreme weather conditions from -40°C to +60°C in a clean Hikvision white finish.

Key System Features & Functionality

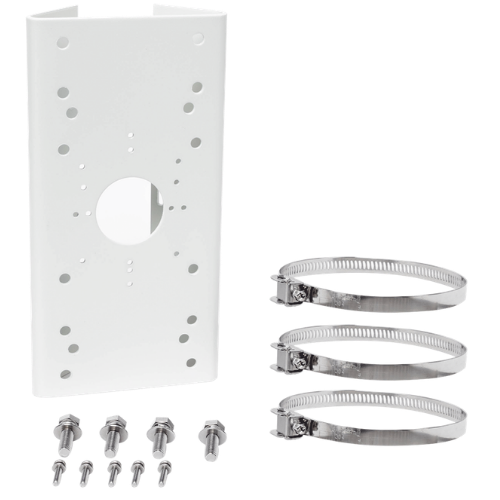

• Versatile Pole Diameter Compatibility: Fits vertical cylindrical poles and masts from 67 mm to 127 mm (2.64'' to 5.0'') using adjustable stainless steel clamp bands.

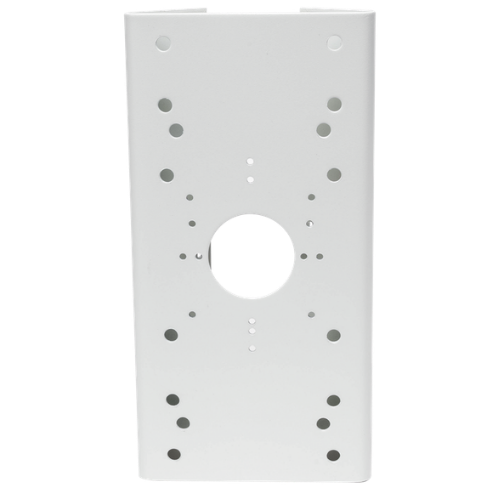

• Extensive Hikvision Bracket Compatibility: Pre-drilled threaded hole patterns align directly with Hikvision wall brackets (DS-1272ZJ, DS-1273ZJ, DS-1271ZJ) and camera junction boxes.

• Heavy-Duty Steel Construction: High-strength steel alloy prevents bending, rust, and physical tampering under harsh exterior conditions.

• High Load Capacity (10.0 kg): Safely supports camera housings, large bullet cameras, and wall bracket assemblies up to 10.0 kg (22.05 lbs) with high wind-load resistance.

• Concealed Cable Pass-Through: Central cable access hole allows clean, protected wiring directly from the pole or conduit into the camera base.

• Extreme Weather Performance: Built to operate reliably in severe outdoor climates ranging from -40°C to +60°C.
