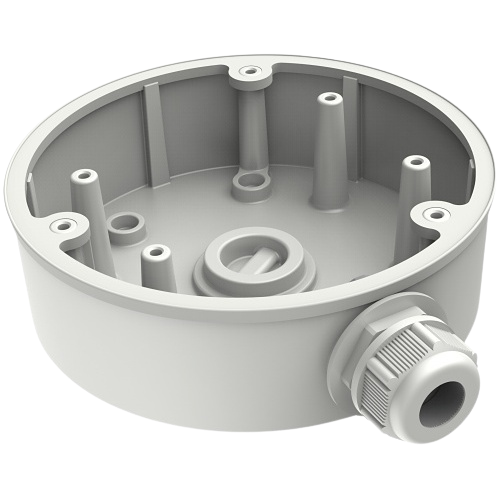

Hikvision DS-1280ZJ-PT6 – Waterproof Aluminum Junction Box for Dome & Turret Cameras (Ø137.0 mm × 42.0 mm / Ø5.4" × 1.7")

Product Overview

The Hikvision DS-1280ZJ-PT6 (Dimensions: Ø137.0 mm × 42.0 mm / Ø5.4" × 1.7") is a heavy-duty, weatherproof camera mounting junction box engineered specifically for medium-to-large Hikvision dome and turret IP/analog security cameras. Designed for commercial, industrial, and residential video surveillance installations, it provides a spacious, sealed internal compartment to conceal and protect sensitive camera pigtails, RJ-45 network terminations, DC power jacks, and video baluns from harsh weather exposure and physical tampering.

Constructed from premium die-cast aluminum alloy with an integrated rubber sealing gasket, the DS-1280ZJ-PT6 is built to withstand extreme outdoor environments across an operating temperature range of -40°C to +60°C. It features a side cable entry port with an included waterproof compression gland, a rear wall cable pass-through hole, and a structural load-bearing capacity of up to 4.5 kg (9.92 lbs). Finished in a durable Hikvision white powder coating, it ensures long-term corrosion resistance and clean surface mounting on walls and ceilings.

Key System Features & Functionality

• Dedicated Hikvision Dome & Turret Compatibility: Precision pre-threaded hole patterns designed to seamlessly match larger Hikvision dome and turret camera mounting bases.

• Weatherproof Aluminum Alloy Construction: High-durability die-cast aluminum prevents moisture ingress, dust penetration, and environmental degradation.

• Spacious Concealed Cable Management: Generous Ø137 mm cavity easily encloses RJ-45 waterproof connectors, power supplies, and excess cabling to prevent vandalism.

• Dual Cable Entry Options: Features a side conduit entry port equipped with a waterproof cable gland and a rear pass-through hole for through-wall cable routing.

• High Load Capacity (4.5 kg): Supports camera hardware loads up to 4.5 kg (9.92 lbs) with high structural stability and vibration resistance.

• Extreme Weather Durability: Engineered to perform reliably in demanding commercial and outdoor climates ranging from -40°C to +60°C.
