Hikvision DS-1602ZJ – Heavy-Duty Wall Mount Bracket for Speed Dome PTZ Cameras (97.3 mm x 182.6 mm x 306.4 mm / 3.83" x 7.19" x 12.06")

Product Overview

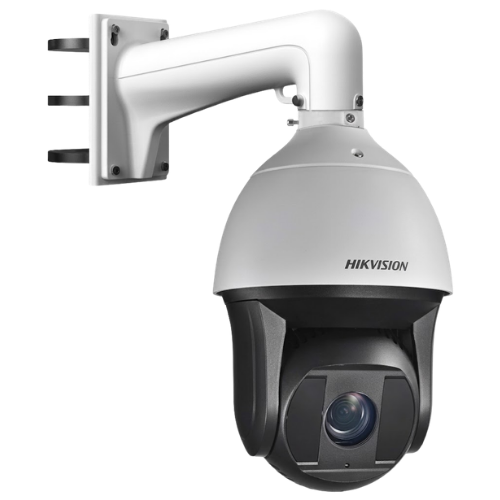

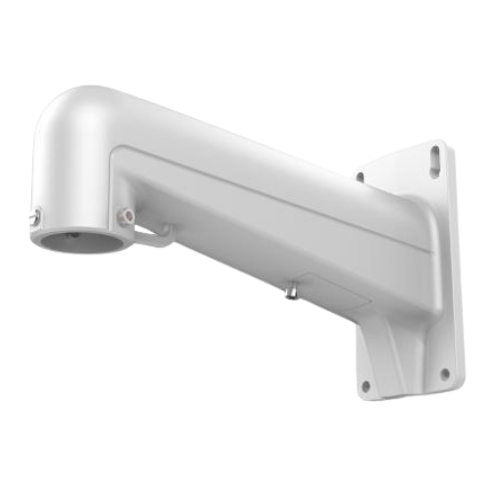

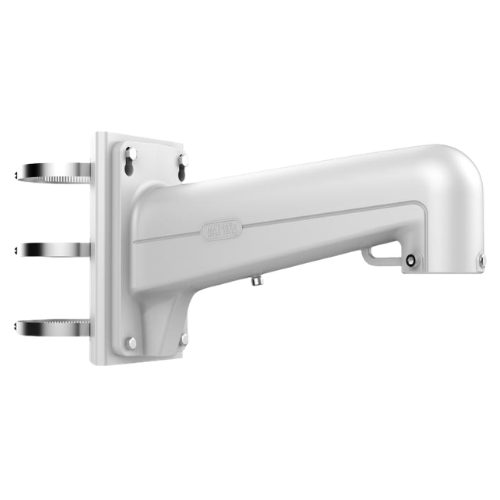

The Hikvision DS-1602ZJ (Dimensions: 97.3 mm x 182.6 mm x 306.4 mm / 3.83" x 7.19" x 12.06") is an aluminum alloy gooseneck wall mount bracket engineered specifically for Hikvision indoor and outdoor Speed Dome and PTZ (Pan-Tilt-Zoom) security cameras. Designed for commercial, industrial, and municipal video surveillance installations, this bracket extends the camera over 300 mm away from building facades to provide an expansive, unobstructed field of view across large perimeters, parking lots, and building exteriors.

Constructed from rugged die-cast aluminum alloy with an integrated rubber sealing gasket, the DS-1602ZJ delivers exceptional structural stability with a heavy load-bearing capacity of up to 30.0 kg (66.14 lbs). It features an internal hollow channel for completely concealed, weather-protected cable routing, an integrated safety tether hook for drop prevention during installation, and standard G1-1/2" threaded pendant coupling. Finished in a corrosion-resistant Hikvision white powder coating, it ensures reliable long-term performance across an operating temperature range of -40°C to +60°C.

Key System Features & Functionality

• Extended Gooseneck Reach (306.4 mm): Projects PTZ cameras away from walls to eliminate architectural blind spots and deliver wide panoramic coverage.

• Heavy-Duty Aluminum Alloy Construction: High-strength die-cast aluminum prevents structural bending and resists physical tampering in harsh exterior environments.

• Exceptional 30 kg Load Capacity: Engineered to support large, high-powered motorized PTZ speed domes and heavy optical zoom assemblies safely.

• Concealed Internal Cable Channel: Hollow arm routes Ethernet, power, and audio wiring internally, protecting connections against UV damage, moisture, and vandalism.

• Standard G1-1/2" Threaded Interface: Standard pendant coupling with set screws ensures a secure, vibration-free lock with compatible Hikvision speed dome cameras.

• Integrated Safety Tether Hook: Built-in internal cable loop provides drop prevention and hands-free support during installation and maintenance.

• Extreme Climate Resistance: Designed to operate reliably in severe outdoor environments ranging from -40°C to +60°C.
