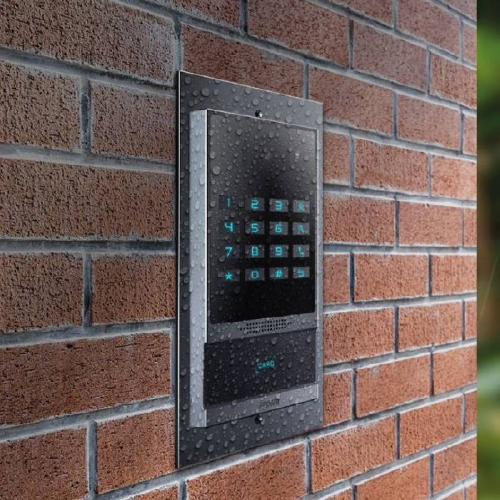

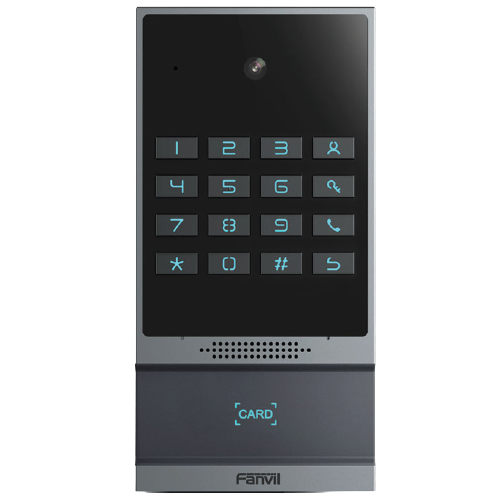

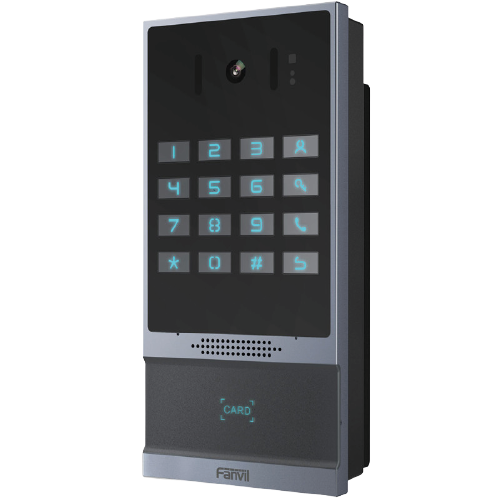

i64 – Fanvil SIP Video Door Phone with Numeric Keypad

Product Overview

The i64 is an enterprise-grade vandal-resistant SIP video door phone manufactured by Fanvil. Purpose-built for apartment complexes, commercial buildings, gated residential communities, industrial perimeters, and institutional access checkpoints, this outdoor intercom terminal integrates high-definition audio/video communication, keyless access control, and SIP telephony into a heavy-duty vandal-proof architectural station. Encased in a robust aluminum alloy chassis certified to IP66 weatherproof and IK07 impact resistance standards, the i64 is engineered to withstand outdoor weather conditions, physical tampering, and continuous 24/7 commercial operation.

The station is equipped with an integrated 2 MP wide-angle camera with infrared (IR) night vision and wide dynamic range (WDR), delivering clear 1080p video streams even in dark or high-contrast backlit lighting. For access control, the i64 features a full numeric keypad with blue backlighting and an embedded dual-frequency RFID card reader (13.56 MHz & 125 kHz), supporting authentication via PIN passcodes, IC/ID access cards, key fobs, and remote DTMF door releases. Driven by standard SIP 2.0 (RFC3261) with support for two SIP accounts, PoE (802.3af), wideband HD audio (Opus, G.722) with acoustic echo cancellation, and multiple input/output relays for dual-door control, the Fanvil i64 delivers complete perimeter security and unified communication for modern IP facilities.

Key System Features & Functionality

• 2 MP Full HD Camera with Night Vision: 1080p high-resolution camera with infrared LED illumination and WDR ensures visitor identification day and night.

• Full Backlit Numeric Keypad: Tactile numeric keyboard allows direct apartment/office dialing, PIN passcode entry, and local configuration.

• Dual-Frequency RFID Card Reader: Built-in reader supports both 13.56 MHz Mifare IC cards and 125 kHz EM ID cards/fobs for flexible credential deployment.

• IP66 Weatherproof & IK07 Vandal-Proof: Aluminum alloy unibody housing protects against water jets, dust ingress, and external physical impacts.

• Dual Relay Control: 2 short-circuit output relays allow independent control of two connected doors (e.g., pedestrian gate and motorized vehicle barrier).

• Enterprise HD Voice & Speaker: 2.5W high-output speaker and sensitive microphone featuring Acoustic Echo Cancellation (AEC) and background noise reduction.

• Standard SIP 2.0 & Wide Interoperability: Compatible with major IP-PBX platforms (Asterisk, 3CX, FreePBX, Broadsoft) and standard ONVIF surveillance systems.

• Standard PoE (802.3af) Support: Delivers data and electrical power through a single Ethernet cable, with local 12V–24V DC terminal options.
