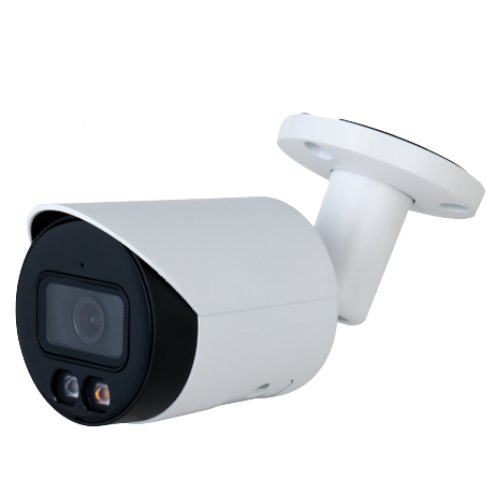

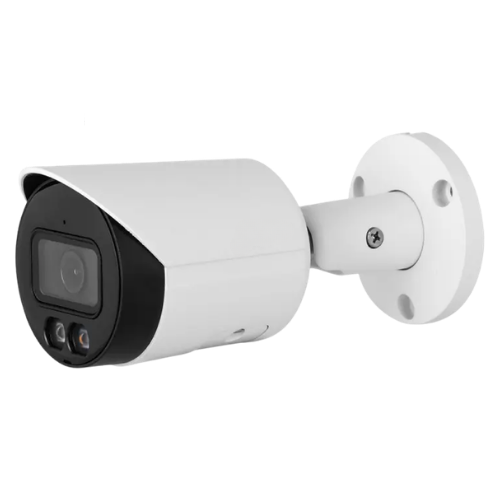

IPF-B8ILM-A-CS28 – 8MP Smart Dual Light Bullet Network Camera with Built-in Mic (2.8 mm, IP67, DWDR)

Product Overview

The IPF-B8ILM-A-CS28 is an ultra-high-definition 8 Megapixel (4K) outdoor fixed-focal bullet network IP camera engineered for residential, commercial, and perimeter video surveillance deployments. Equipped with an advanced 1/2.7" progressive scan CMOS image sensor and a 2.8 mm wide-angle lens, this camera delivers crystal-clear 4K imaging at 3840 × 2160 resolution with exceptional scene detail and wide area coverage.

Featuring intelligent Smart Dual Light technology, the camera provides flexible night monitoring by pairing infrared LEDs with warm white light illuminators. It operates in covert IR mode during standard darkness and automatically engages warm white illumination upon motion or target detection to capture full-color evidentiary details up to 30 meters (98.4 ft). The camera integrates a built-in high-sensitivity microphone for synchronized audio-video recording, Digital Wide Dynamic Range (DWDR), and 3D Digital Noise Reduction (3D NR). Encased in a rugged IP67 weatherproof housing, it operates reliably across harsh outdoor conditions from -40°C to +60°C and supports both standard PoE (802.3af) and 12V DC power.

Key System Features & Functionality

• Ultra HD 8MP (4K) Resolution: Delivers crisp 3840 × 2160 video for precise facial, vehicle, and fine-detail recognition.

• Smart Dual Light Illumination: Intelligently switches between invisible IR night vision and warm white full-color lighting (up to 30 m) when events are triggered.

• Built-in Audio Microphone: Integrated high-fidelity mic enables clear ambient sound capture over the network without supplemental wiring.

• Expansive 2.8 mm Wide-Angle Lens: Provides a wide field of view (approx. 105° horizontal) ideal for broad outdoor spaces and building perimeters.

• Advanced Video Enhancement: Incorporates DWDR, 3D NR, BLC, and HLC to balance exposure in high-contrast and low-light scenes.

• Efficient Smart H.265+ Compression: Reduces storage consumption and network bandwidth overhead by up to 70% while maintaining 4K video clarity.

• Rugged IP67 Weatherproof Rating: Heavy-duty weather-sealed enclosure ensures continuous operation against heavy rain, dust, and severe weather (-40°C to +60°C).

• Flexible Power Options: Supports Power over Ethernet (PoE 802.3af) for streamlined single-cable installation or standard 12V DC.
