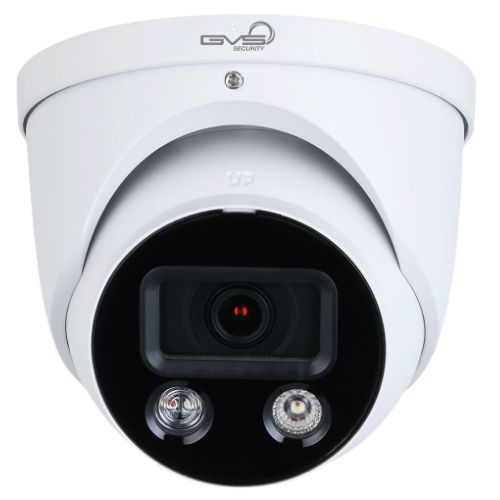

OEM IPC-HDW3849H-AS-PV-S4 8MP 4K Smart Dual Light Active Deterrence Eyeball Network Camera (2.8 mm, IP67, Red/Blue Light, Siren, Two-Way Audio, 120dB WDR, PoE)

OEM IPC-HDW3849H-AS-PV-S4 8MP 4K Smart Dual Light Active Deterrence Eyeball Network Camera (2.8 mm, IP67, Red/Blue Light, Siren, Two-Way Audio, 120dB WDR, PoE)

Name: OEM IPC-HDW3849H-AS-PV-S4 8MP 4K Smart Dual Light Active Deterrence Eyeball Network Camera (2.8 mm, IP67, Red/Blue Light, Siren, Two-Way Audio, 120dB WDR, PoE)
Brand: OEM
SKU: IPF-D83M-AS-DT28
Price: 79.0 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Product SKU: IPF-D83M-AS-DT28

Available:

Only 0 item in stock

0 item in stock

In stock

Pre-order

Out of stock

$79.00

Description
Key Technical Specifications

Product Overview

The OEM IPC-HDW3849H-AS-PV-S4 is an ultra-high-definition 8 Megapixel (4K) outdoor fixed-focal eyeball network IP camera featuring advanced TiOC (Three-in-One Camera) Active Deterrence technology. Engineered for mission-critical commercial, perimeter, and high-end residential video surveillance deployments, this camera actively halts intrusions before crimes occur. Upon tripwire breach or area intrusion, it automatically triggers a flashing red and blue warning strobe and an audible security siren or customizable voice prompt, paired with real-time full-duplex two-way audio via an integrated high-power speaker and dual microphones.

Equipped with a large 1/2.8" progressive scan CMOS sensor and an expansive 2.8 mm wide-angle lens, the camera outputs razor-sharp 4K video at 3840 × 2160 resolution at up to 30 fps. Built on a deep-learning AI platform, it features SMD Plus (Smart Motion Detection Plus) and Perimeter Protection to accurately classify human and vehicle targets, filtering out false alarms from leaves, animals, and weather. With intelligent Smart Dual Light technology, it illuminates scenes up to 30 meters (98.4 ft) using stealth infrared LEDs in standby and automatically activates warm white illumination upon alarm events to capture full-color forensic evidence. The camera includes hardware 120 dB True WDR, 3D NR, an on-board MicroSD card slot (up to 256 GB), 1 alarm I/O / 1 audio I/O ports, and an all-weather IP67 weatherproof housing with PoE (802.3af) support.

Key System Features & Functionality

Ultra HD 8MP (4K) Video Surveillance: Delivers high-density 3840 × 2160 video streams at up to 30 fps for forensic facial and vehicle identification.
Active Deterrence Siren & Strobe: Triggers high-visibility flashing red/blue LED strobe lights and a high-decibel audible siren (or voice warnings) immediately upon boundary breach.
Smart Dual Light Illumination (30 m): Balances discreet IR night vision with automatic warm white LED illumination upon target classification, recording vivid full-color evidence up to 30 meters (98.4 ft).
AI Human & Vehicle Classification (SMD Plus): Deep-learning algorithms differentiate between legitimate human/vehicle threats and environmental false alarms (animals, swaying branches, rain).
Interactive Full-Duplex Two-Way Audio: Integrated dual microphones and high-output loudspeaker enable clear real-time two-way communication via VMS or mobile apps.
Hardware 120 dB True WDR & 3D Noise Reduction: Solves severe backlighting and high-contrast glare while eliminating low-light noise artifacts.
Expansive 2.8 mm Wide-Angle Lens: Provides a wide horizontal field of view (approx. 104°–107°) with 90° image rotation mode (corridor view) support.
One-Tap Arming / Disarming: Allows rapid arming/disarming of sirens and strobes via mobile app or external alarm input.
Rugged IP67 Weatherproof Construction: Heavy-duty weather-sealed housing protects against torrential rain, snow, fine dust, and harsh climates from -40°C to +60°C.
Flexible Power Options: Supports Power over Ethernet (PoE 802.3af) for single-cable data and power delivery alongside standard 12V DC.

Camera

Image Sensor

1/2.8" CMOS

Max. Resolution

3840 (H) × 2160 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.004 lux@F1.0 (Color, 30 IRE)
0.0004 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on)

S/N Ratio

﹥ 56 dB

Illumination Distance

Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (warm light)

Illuminator On/Off Control

Auto; manual

Illuminator Number

1 (IR LED)
1 (warm light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Field of View

2.8 mm: H: 106°; V: 55°; D: 125°
3.6 mm: H: 85°; V: 45°; D: 100°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 2.0 m (6.56 ft)
3.6 mm: 2.8 m (6.23 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

91.0 m (298.56 ft)

36.4 m

( 119.42 ft)

18.2 m

(59.71 ft)

9.1 m

(29.86 ft)

3.6 mm

107.6 m (353.02 ft)

43.0 m

( 141.08 ft)

21.5 m

(70.54 ft)

10.8 m

(35.43 ft)

Intelligent

IVS (Perimeter Protection)

Tripwire; intrusion (Support the classification and accurate detection of vehicle and human)

SMD 4.0

Less false alarm, longer detection distance

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Quick Pick

With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events

AI SSA

Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Video Frame Rate

Main stream: 3840 × 2160@(1 fps–30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream: 1920 × 1080@(1 fps–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32kbps–8192 kbps

H.265:12kbps–8192 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

8 areas

Audio

Built-in Mic

Yes, built-in dual Mic

Built-in speaker

Yes, built-in speaker

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S;Profile G;Profile T); CGI

User/Host

20 (Total bandwidth: 72 M)

Storage

FTP; SFTP; Micro SD card (Support max. 256 G); NAS

Browser

IE: IE8/9/11
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

iOS; Android

Certification

CE-LVD: EN 62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

FCC: 47 CFR FCC Part 15, Subpart B;

UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: 5 mA 3V–5 VDC

Alarm Output

1 channel out: 300 mA 12 VDC

Power

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

Basic: 5.2 W (12 VDC); 5.5 W (PoE)

Max. (pulling stream+warning light+speaker+warm light on): 9.2W (DC12 V) 10.2 W (POE)

Environment

Operating Conditions

–40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH

Storage Conditions

–40 °C to +60 °C (–40 °F to +140 °F)

Protection Grade

IP67

Structure

Casing

Metal

Dimensions

110.9 mm × Φ122.0 mm (4.37" × Φ4.80")

Net Weight

745 g (1.64 lb)

Gross Weight

915 g (2.02 lb)
