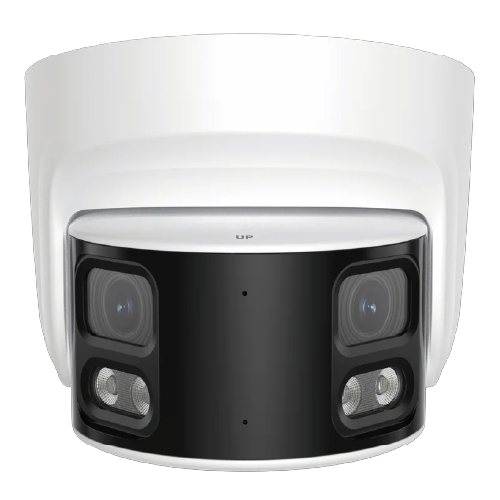

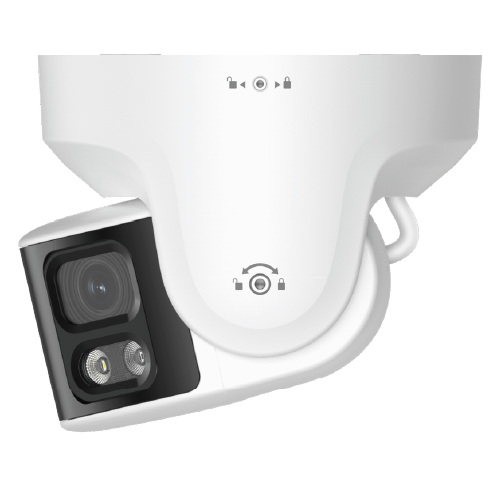

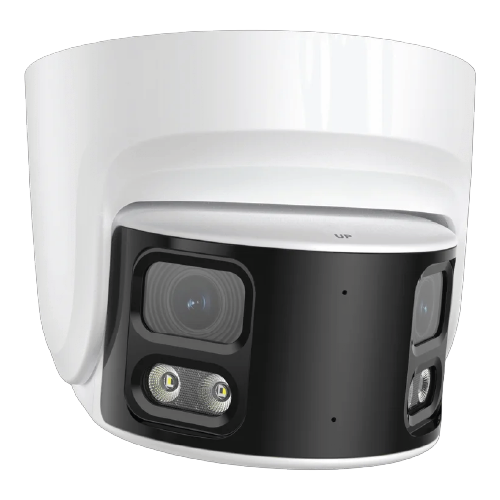

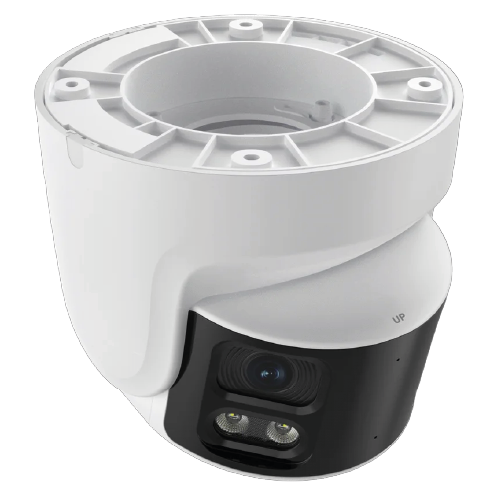

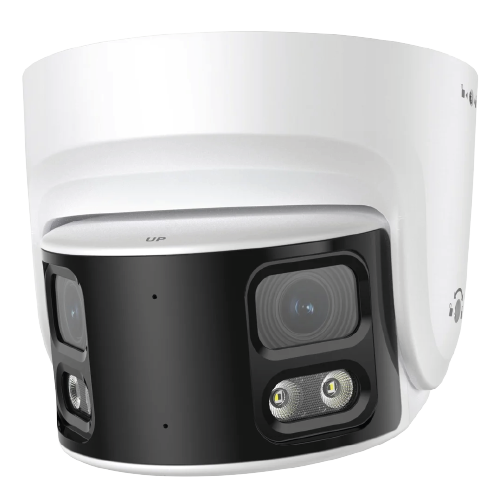

ITRP18S-20HSAD – 8MP 4K Dual-Lens 180° Panoramic Active Deterrence Turret IP Camera (Dual 4.0 mm, 50m IR, Red/Blue Warning Strobes, Siren, Two-Way Audio, MicroSD, IP67, PoE)

Product Overview

The OEM ITRP18S-20HSAD is an ultra-high-definition 8 Megapixel (4K) outdoor panoramic turret/eyeball network IP camera engineered for high-security commercial perimeters, logistics facilities, open parking plazas, and wide industrial expanses. Utilizing an advanced dual-lens hardware splicing architecture, the camera seamlessly stitches the streams of two calibrated 4.0 mm lenses into a unified, continuous 180° horizontal panoramic field of view at 3840 × 2160 (4K UHD) resolution, delivering complete wide-area coverage without edge distortion or blind spots.

Engineered with proactive Active Deterrence technology, the unit actively interrupts criminal activity in real time. Upon boundary violations (tripwire or perimeter intrusion detected by deep-learning human and vehicle classification), it automatically deploys flashing red and blue warning strobe lights and sounds a high-decibel security siren or customizable voice warning, paired with full two-way interactive audio via an integrated high-sensitivity microphone and high-output loudspeaker. For low-light surveillance, high-intensity infrared illuminators project night vision up to 50 meters (164 ft). The camera incorporates hardware-level 120 dB True WDR, 3D Digital Noise Reduction (3D NR), an on-board MicroSD card slot (supporting up to 256 GB), and a heavy-duty IP67 weatherproof housing with standard PoE (802.3af) and 12V DC power.

Key System Features & Functionality

• Dual-Lens Spliced 4K Surveillance: Seamlessly combines two image sensors into a single, cohesive 180° panoramic 8MP (3840 × 2160) canvas without dead angles.

• Proactive Active Deterrence: Instantly triggers high-visibility red and blue flashing strobe lights and a loud acoustic siren (or custom voice announcements) upon intrusion.

• Extended 50m IR Night Vision: High-output 850 nm infrared LEDs deliver balanced, glare-free night vision up to 50 meters (164 ft) in complete darkness.

• Interactive Full-Duplex Two-Way Audio: Integrated high-gain microphone and built-in loudspeaker allow immediate two-way voice communication via VMS or mobile apps.

• AI Human & Vehicle Classification: Deep-learning algorithms differentiate between legitimate human/vehicle threats and environmental false triggers (animals, foliage, rain).

• Hardware 120 dB True WDR & 3D NR: Retains evidentiary image clarity across severe backlighting, glass glare, and shadowed areas while eliminating low-light noise.

• Dual 4.0 mm Calibrated Optics: Optimized focal length provides extended optical reach and pixel density across the 180° panoramic field.

• Local Edge Storage Support: Integrated MicroSD card slot accommodates failover and local standalone recording up to 256 GB.

• Rugged All-Weather IP67 Rating: Heavy-duty weather-sealed housing provides continuous protection against driving rain, windblown dust, and extreme climates (-40°C to +60°C).

• Flexible Power Delivery: Supports Power over Ethernet (PoE 802.3af) for single-cable infrastructure alongside standard 12V DC auxiliary power.
