Z-Bracket Mount for 180kg / 350lbs Magnetic Locks (Inswing Doors)

Product Overview

The LMB-180Z Z-Bracket Mount is a precision-engineered architectural hardware accessory. Designed specifically for LM-1802 and LM-1805 series 180 kg (350 lbs) electromagnetic locks, this Z-bracket functions as the armature plate mounting interface for inswing doors opening inward at a 90-degree angle.

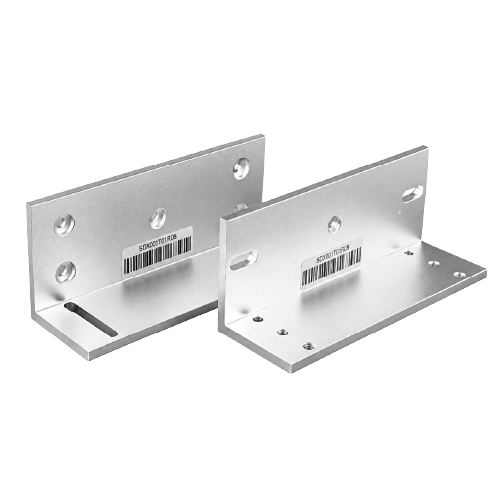

Typically deployed in combination with an L-bracket (forming an LZ-bracket set), the LMB-180Z consists of two interlocking, heavy-duty anodized aluminum brackets that provide adjustable horizontal and vertical depth alignment. This ensures that the steel armature plate mates perfectly flush against the electromagnetic lock body installed on the transom frame. Its corrosion-resistant sandblasted finish, slotted adjustment channels, and zero-flex structural integrity prevent misalignment under continuous magnetic pull force, delivering secure closure across wooden, hollow metal, and narrow-stile aluminum doors.

Key Features

• Dedicated Magnetic Lock Compatibility: Engineered specifically for armature mounting with LM-1802, LM-1805, and standard 180 kg / 350 lbs single-door magnetic locks.

• Engineered for Inswing Doors: Solves inward-swinging door clearance constraints by projecting the armature plate into correct magnetic alignment.

• Dual-Bracket Adjustable Profile: Slotted mounting channels allow fine-tuned horizontal and vertical adjustments for flush mating with the lock magnet.

• High-Strength Anodized Aluminum: Extruded aircraft-grade aluminum body with sandblasted matte finishing resists oxidation, wear, and physical strain.

• Zero-Flex Rigidity: Sturdy geometric profile prevents bending or twisting under full 180 kg (350 lbs) holding tension.

• Broad Door Compatibility: Compatible with commercial wooden doors, narrow-stile aluminum doors, and light metal interior frames.

• Complete Mounting Assembly: Supplied with armature guide pins, rubber isolation washers, steel washers, and high-tensile machine screws.

Compatible Devices

• LM-1802 Single-Door 180kg (350lbs) Electromagnetic Locks

• LM-1805 Monitored 180kg (350lbs) Electromagnetic Locks with LED / Sensor Feedback

• LMB-180L L-Brackets (to create a complete 180kg LZ mounting assembly)

• Standard universal 180 kg / 350 lbs mini-series magnetic lock armature plates

• Commercial wooden, aluminum, and hollow metal inswing door assemblies
