Z-Bracket Mount for 280kg / 600lbs Magnetic Locks (Inswing Doors)

Product Overview

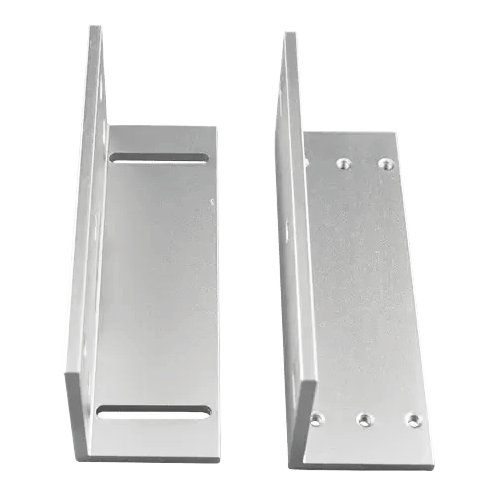

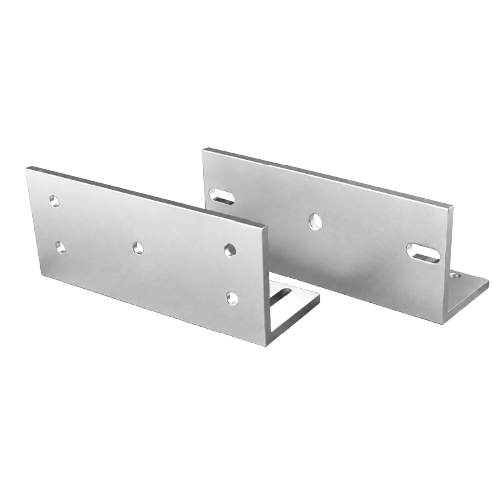

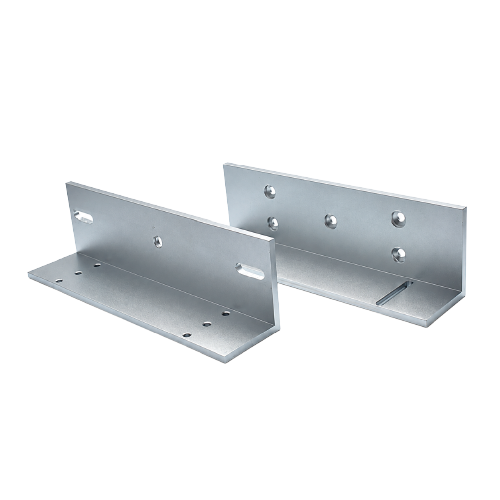

The LMB280Z  Z-Bracket Mount is a precision-engineered architectural hardware accessory. Designed specifically for LM-2802 and LM-2805 series 280 kg (600 lbs) electromagnetic locks, this heavy-duty Z-bracket acts as the armature plate mounting interface for inswing doors opening inward at a 90-degree angle.

Typically deployed in combination with the LMB280L bracket (forming a complete LZ-bracket assembly), the LMB280Z features a multi-piece interlocking structure manufactured from high-tensile anodized aluminum. It provides adjustable horizontal and vertical depth positioning to ensure the heavy steel armature plate mates completely flush and flat against the frame-mounted electromagnetic lock. Its sandblasted anti-corrosion finish, slotted alignment channels, and zero-flex structural integrity prevent mechanical sagging or displacement under continuous 280 kg (600 lbs) holding force, delivering dependable perimeter security across commercial wooden, hollow metal, and aluminum door assemblies.

Key Features

• Dedicated Magnetic Lock Compatibility: Engineered specifically for armature mounting with LM-2802, LM-2805, and universal 280 kg / 600 lbs single-door magnetic locks.

• Engineered for Inswing Doors: Solves inward-swinging door clearance constraints by projecting the armature plate into correct magnetic alignment.

• Adjustable Interlocking Structure: Slotted horizontal and vertical channels enable fine-tuned depth alignment for flush contact with the electromagnet.

• High-Strength Anodized Aluminum: Extruded aircraft-grade aluminum body with sandblasted matte finishing resists oxidation, surface wear, and physical strain.

• Zero-Flex Rigidity: Sturdy geometric profile prevents bending or twisting under full 280 kg (600 lbs) electromagnetic holding tension.

• Broad Architectural Suitability: Ideal for solid wooden doors, heavy hollow metal entries, fire doors, and commercial interior partitions.

• Complete Hardware Assembly: Supplied with armature guide pins, rubber isolation washers, steel washers, and high-tensile mounting hardware.

Compatible Devices

• LM-2802 Single-Door 280kg (600lbs) Electromagnetic Locks

• LM-2805 Monitored 280kg (600lbs) Electromagnetic Locks with LED / Sensor Feedback

• LMB280L L-Brackets (to create a complete 280kg LZ mounting assembly)

• Standard universal 280 kg / 600 lbs series magnetic lock armature plates

• Commercial wooden, aluminum, and hollow metal inswing door assemblies
