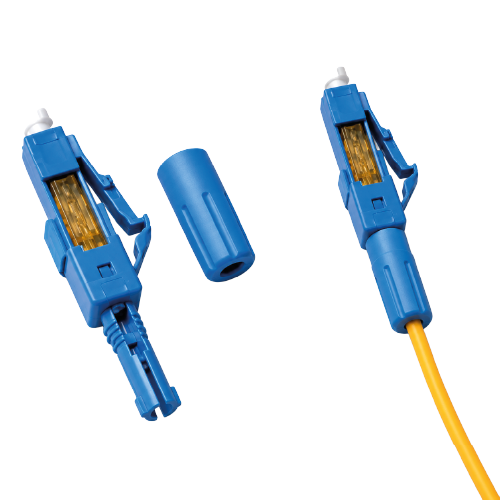

Fast Field-Installable LC/UPC Single Mode Mechanical Fiber Connector (G.652.D 9/125µm)

Product Overview

The LP-FLLCS13112 Fusionless Mechanical Fiber Connector is a field-installable optical termination solution engineered for rapid, high-precision LC terminations without requiring an expensive fusion splicer or dedicated polishing equipment. Purpose-built for single mode OS2 (9/125 µm) glass optical fibers compliant with ITU-T G.652.D Type B1.3, this connector incorporates a factory-polished zirconia ceramic ferrule with an internal mechanical index-matching gel splice.

Designed for fiber-to-the-home (FTTH), telecom restoration, and enterprise network expansions, the LP-FLLCS13112 delivers low insertion loss (≤0.3\dB) and high return loss (≥50dB) using a precision UPC (Ultra Physical Contact) polish. Its mechanical clamping mechanism securely anchors 250 µm bare fiber, 900 µm tight-buffered fiber, or 2.0 µm drop cables in under two minutes with standard fiber prep tools, significantly reducing deployment time and equipment costs during emergency field repairs and network terminations.

✅ Key Features

• Fusionless Field Termination: Eliminates the need for fusion splicers, electrical power, curing ovens, or field polishing films.

• Factory-Polished UPC End-Face: Features a precision zirconia ceramic ferrule with UPC finish, ensuring return loss ≥5 dB and insertion loss ≤0.3 dB.

• ITU-T G.652.D Type B1.3 Optimized: Engineered for standard single mode 9/125 µm zero water peak optical fibers operating across 1310 µm and 1550 µm windows.

• Internal Mechanical Splice with Index Gel: High-performance index-matching gel bridges the pre-embedded fiber stub with the field-cleaved fiber seamlessly.

• Broad Cable Profile Support: Compatible with 250 µm coated fiber, 900 µm buffered fiber, and flat 2.0 X 3.0mm FTTH drop cables.

• Rapid Deployment: Complete connector assembly can be performed on-site in under two minutes using standard stripper and cleaver tools.

• Reusable Design: Allows multiple re-terminations to verify proper core alignment and ensure optimal optical power transmission.

📸 Compatible Devices

• SFP, SFP+, and SFP28 Single Mode LC Transceiver Modules

• Optical Distribution Frames (ODF), Fiber Patch Panels, and Wall-Mount Enclosures

• FTTH Optical Termination Boxes (OTB) and Demarcation Closure Units

• Single Mode G.652.D and G.657.A1/A2 Distribution and Drop Cables

• Visual Fault Locators (VFL) and Optical Power Meters for termination verification
